Help CenterComifo HVAC Duct Forming Machine VII
Related Products
Specifications
1.Duct machine [HVAC Duct forming machine]2.Make a full finished Duct
3.PLC control, touchscreen
4.Mitsubishi servo motor
Comifo duct manufacture auto line also called duct auto line, duct machine,duct making machine,rectangle duct line,square tube forming machine,HVAC duct forming machine,hvac tube forming machine,pipe forming machine, duct machinery
Features:
>Modular design allows adding a section at a time
>Three sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
>Pneumatic controlled straightener and beader
>Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
>Duplex GDF flange former, forms GDF flange by double sides
>Comifo patented hydraulic fold- seamer seams a fullwrap duct after folding
>Optimizes floor space by inline position of machines, guarantees high efficiency
>Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Capabilities:
√ Alternative width for 4' (1300mm) or 5' (1550) material
√ Sheet capacity: 18-27ga (0.4-1.2mm)
√ Shearing tolerance of ±0.5mm
√ Hydraulic folding diagonal tolerance of ±0.5mm
√ 0-54FPM (0-18m/min) feeding speed,fast acting back gauge
Pls contact us for detailed information
Stations: coil-straightening-beading-punching square-notching-folding -shearing-automotion pittsburgh lock forming-coil conveyer (optional)-duplex GDF flange forming -hydraulic folding and seaming
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
CAL7-1.2x1300 |
1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
CAL7-1.2x1600 |
1600mm
|

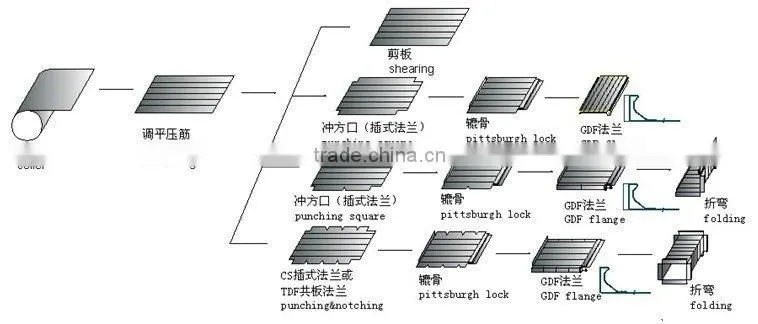

Work Flow:
Product from the Auto Line VI:

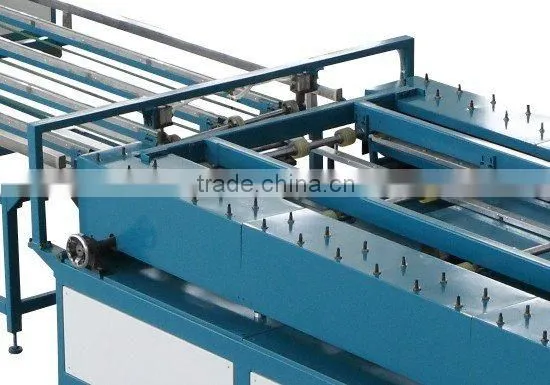

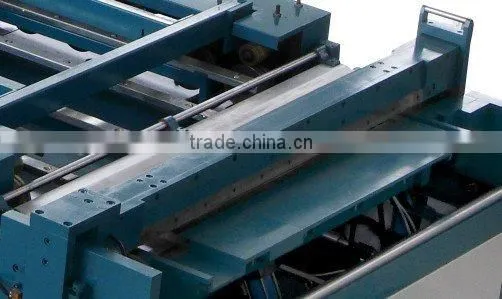

More Detailed Pictures:
