3000mA Battery, Portable Cell Phone Specialized Bluetooth Barcode Scanner
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Barcode Scanner, bluetooth barcode scanner
Scan Element Type:
Other, CCD/COMS/Laser
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3000mA Battery, 1.5m Reading Distance UHF RFID Bluetooth Scanner for Android PhoneNegotiableMOQ: 1 Piece -
1.5m Reading Distance, 840~960Mhz Bluetooth UHF RFID Reader With SDK and Demo APKNegotiableMOQ: 1 Piece
-
Low Cost 2D Bluetooth Barcode Scanner for Logistics IndustryNegotiableMOQ: 1 Piece
-
3000mA Battery, Portable 2d Bluetooth Barcode Scanner For Cell PhoneNegotiableMOQ: 1 Piece
-
Bluetooth 2D Barcode Scanner for Gate Access Control With Mobile Phone at Low CostNegotiableMOQ: 1 Piece
Products Status
Stock
Type
Other, Barcode Scanner, bluetooth barcode scanner
Scan Element Type
Other, CCD/COMS/Laser
Colour Depth
32 Bit
Interface Type
USB, Other, USB, Micro USB
Optical Resolution
2500
Scan Speed
200scans/sec
Brand Name
LONGVIEW
Model Number
LVB01A
Place of Origin
Guangdong, China

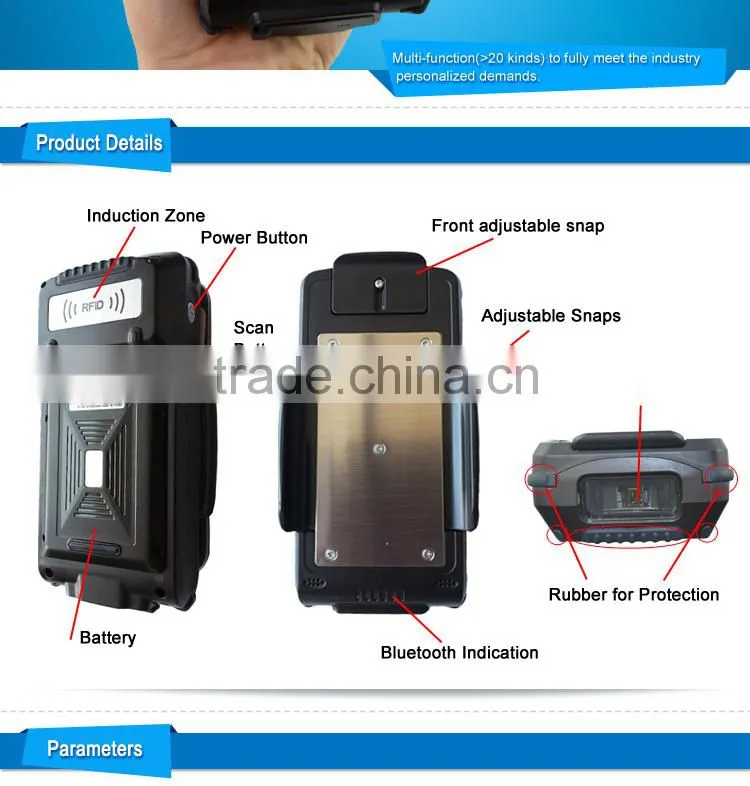

3000mA Battery, Portable Cell Phone Specialized Bluetooth Barcode Scanner
Product Description

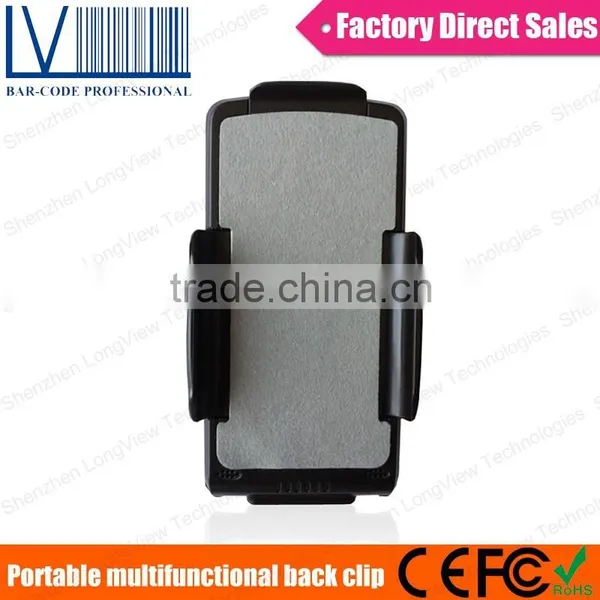

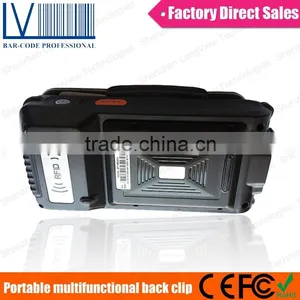

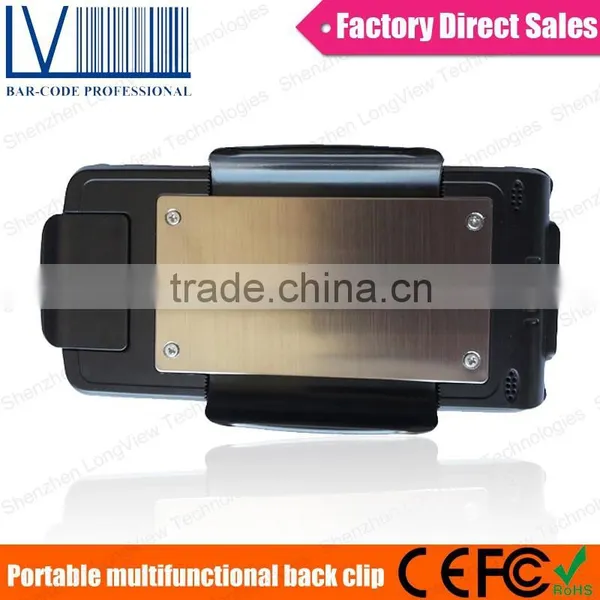

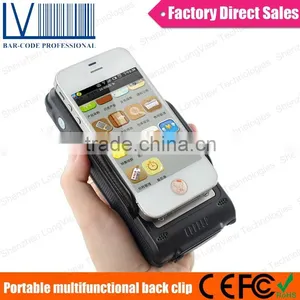

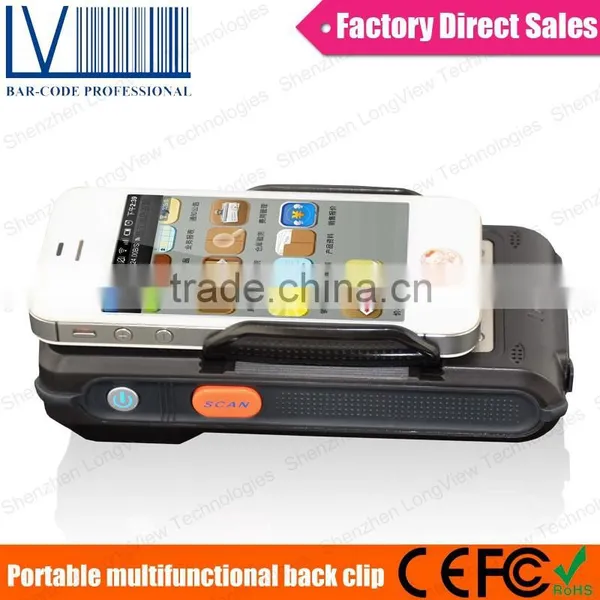

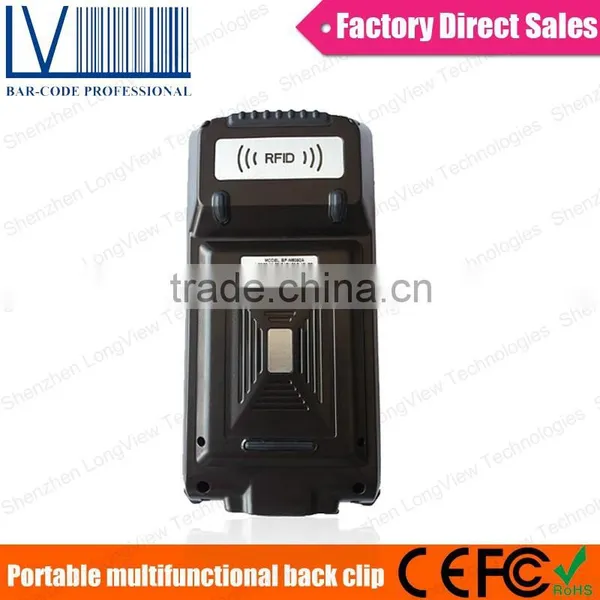

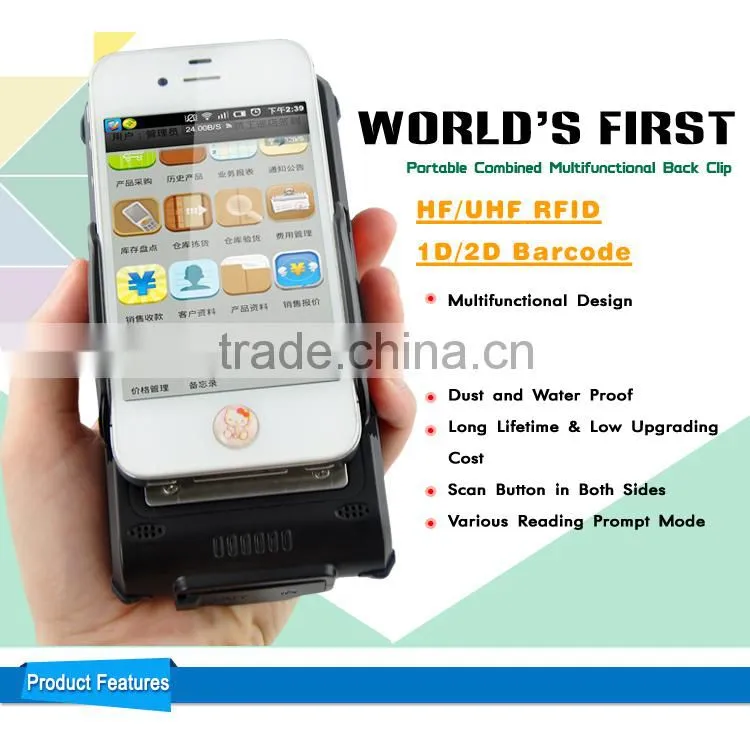

World’s First Portable Combined Bluetooth Back Clip for Android Phone
Advantages:
- HF/UHF RFID
- 1D/2D Barcode
- Multifunctional Design

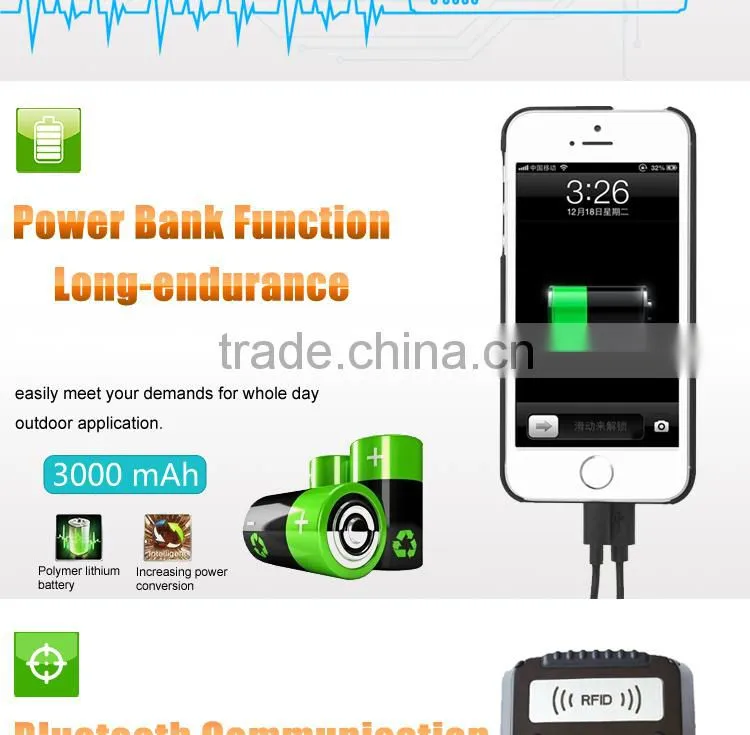

- Power Bank

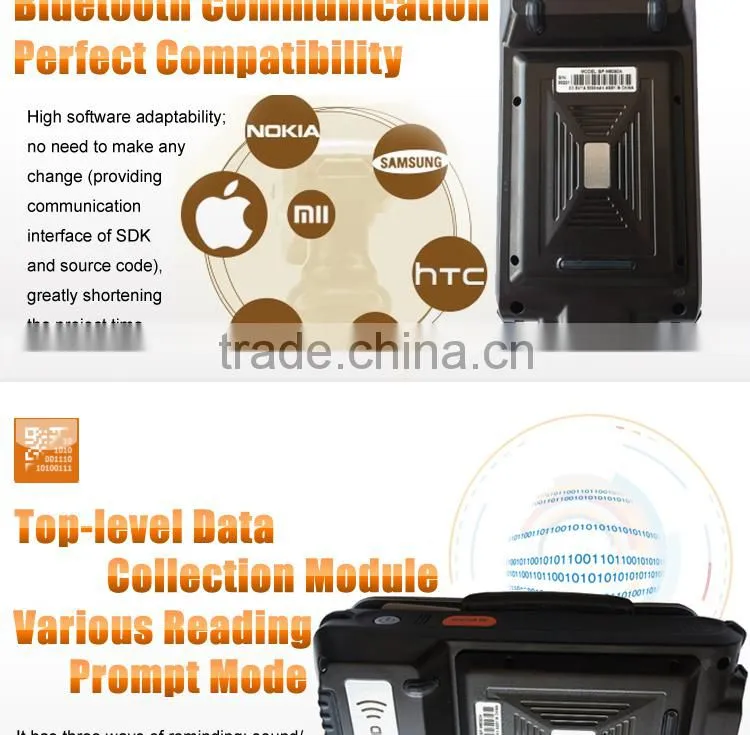

- Bluetooth Communication
- Dust and Water Proof
- Long Lifetime & Low Upgrading Cost

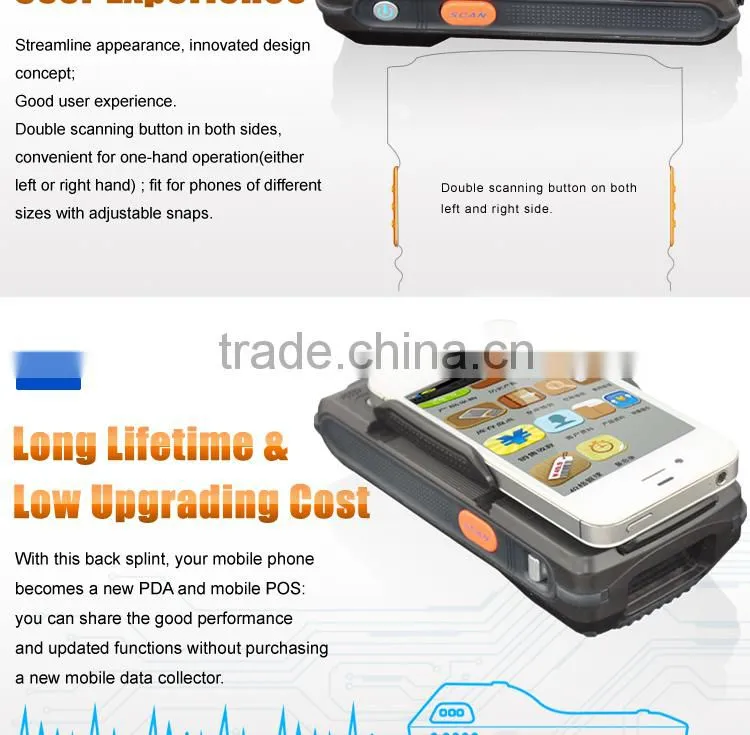

- Scan Button in Both Sides
- Various Reading Prompt Mode

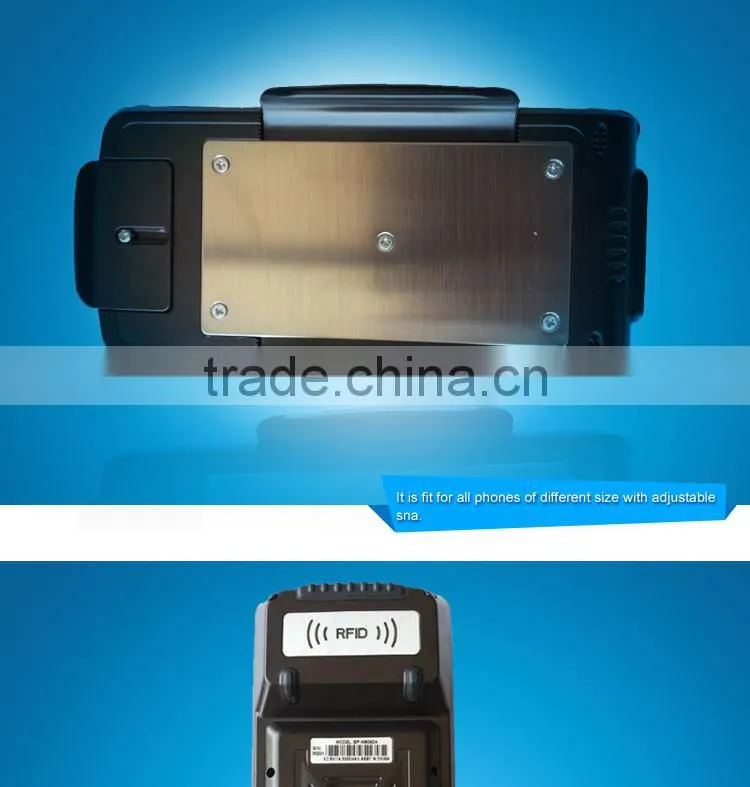

- Fit for All Phones

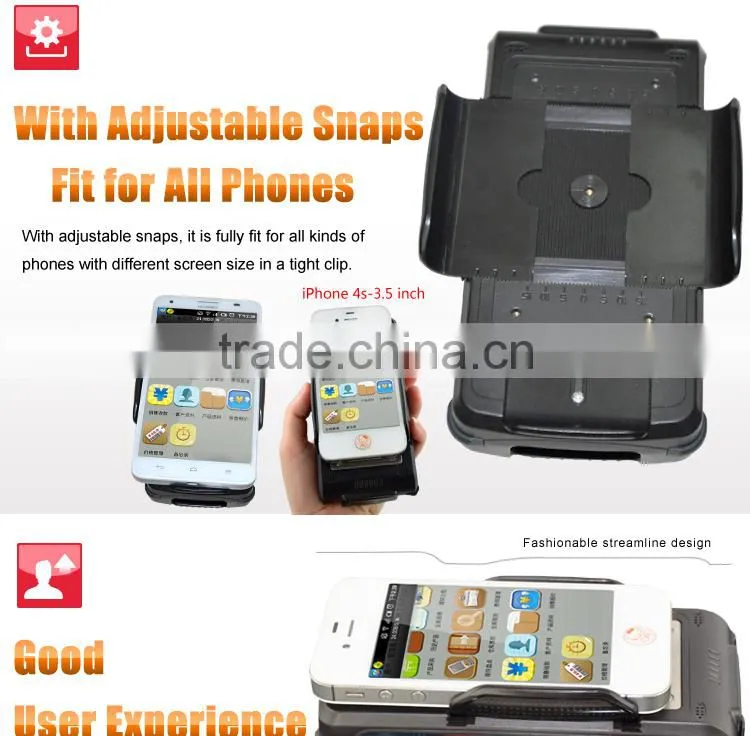

- With Adjustable Snaps

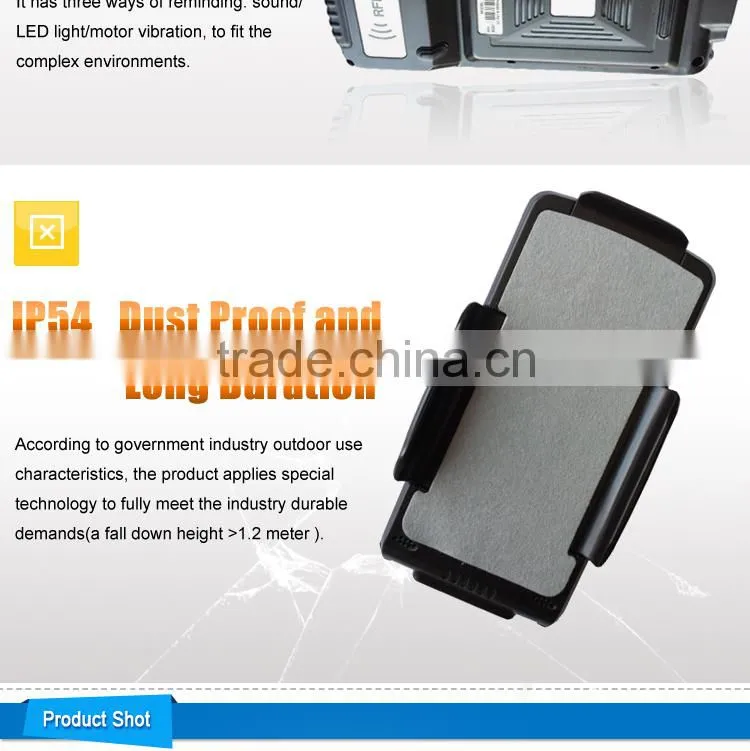

- IP 54, Dust Proof and Long Duration
| Weight | 240g | ||
| Dimension | 138 x 66 x 31mm(Thin: 31, Thick: 34) | ||
| charging and discharging parameter | Input | 5.0±0.25V DC | |
| output | 5.0±0.25V DC | ||
| nominal capacity | 3000mAhlithium polymer battery (>500 charge cycles) | ||
| Standard Charge Circuit | <1A | ||
| Standard Charging method | CV(constant voltage5.0V)charging | ||
| charging time | ≤6 hours | ||
| max charging current | <1A | ||
| max discharge current | <1A | ||
| end-off voltage | 3.3V | ||
| Interface | Bluetooth HID & SPP | ||
| 1D Infrared | Reading Mode | CCD | |
| Resolution | 2500 | ||
| Scan Rate | 300 scan/sec | ||
| Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,ITF-14 | ||
| Precision | ≥ 5mil(under the condition of PCS: 0.9,Code 39) | ||
| Scan Distance | Code128(10mil):30mm-285mm; Code39(5mil):90mm-195mm; Code39(10mil):50mm-325mm; EAN-13(10mil):60mm-265mm; EAN-13(15mil):65mm-350mm; | ||
| sensitivity | incline | ±65°@0°Roll and 0° Skew | |
| rotate | ±30°@0°Pitch and 0°Skew | ||
| declination | ±60°@0°Roll and 0° Pitch | ||
| outdoor scanning | proprietary technology-- able to read the code bar under sun light | ||
| current | maximum current | 100mA | |
| standby current | 45mA | ||
| RFID(optional) | Frequency | 13.56MHz | |
| Reading Mode | reading-writing or auto-induction just for Reading | ||
| Supported Standards | ISO14443A | ||
| Working distance | >30mm | ||
| working current | <100mA | ||
| Max Power Dissipation | 0.33W | ||
| Environment | Operating temperature | 0℃~45℃ | |
| Storage Temperature | -10℃~ +45℃ | ||
| Humidity | 5% - 95% ( Non-condensing ) | ||
| Clip | LED display | 4LED to show charging and discharging active status and electrical quantity:2LED show the working mode of Bar codes and Bluetooth working mode | |
| Auto charging | Automatically charging without pressing any key when inserting into the interface by USB cable. | ||
| Auto Detect | Automatically detect whether to charge when inserting into the interface by USB cable. | ||
| priority of charge | Priority of charging mobile phone, then charging the internal battery. | ||
| UPS function | When external power supply breaks off, its internal battery with keep charging mobile phone. | ||
| battery overcharge protection | Dual hardware protection: >4.2±0.04V | ||
| Battery over discharge alarm voltage | HW: 2.8±0.1V & SW: <3.3V; Priority to enable software protection | ||
| Output Current Limiting Threshold | ≤ 1.2A | ||
| short-circuit protection | HW protection | ||
| Standard Configuration | Micro USB Cable | ||
| Left and right buckle | |||
| front buckle (two pieces with different height) | |||
| skid and scratch resistant cloth 2pcs | |||
| Warranty Card | |||
| Certification | |||
| Instruction Book | |||
| Options | 5V/2A & 5V/1A two separate output high-quality car charger (use cell phone charger for both mobile phone and back splint when indoor, and use car charger when outdoor. The car charger can also charges tablet PC. | ||
| Sling | |||
| AC charger | |||
| Cross Screwdriver | |||
