Home > Office Supplies > Scanner > Bluetooth 2D Barcode Scanner for Gate Access Control With Mobile Phone at Low Cost
Bluetooth 2D Barcode Scanner for Gate Access Control With Mobile Phone at Low Cost
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LongView
Model Number:
LVB01A
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UHF RFID Reader for Mobile Phone, Easy to Use and Low CostNegotiableMOQ: 1 Piece -
Portable 1D/2D Barcode Scanner With RFID Function to Choose for Android Mobile PhoneNegotiableMOQ: 1 Piece
-
2016 New Product Low Consume Mini Wireless Bluetooth Portable Barcode Scanner / RFID Uhf Reader With 3000 mA Lithium BatteryNegotiableMOQ: 1 Piece
-
2014 NEW Multifunctional Bluetooth Mobile UHF RFID Reader, 1D 2D Barcode ReadableNegotiableMOQ: 1 Piece
-
2014 NEW Multifunctional Bluetooth HF/UHF Long Range RFID Reader, 1D 2D Barcode ReadableNegotiableMOQ: 1 Piece
Brand Name
LongView
Model Number
LVB01A
Place of Origin
Guangdong, China
Specifications
2015 NEW Multifunctional Bluetooth Mobile UHF RFID Reader
1.HF/UHF RFID
2.1D/2D Barcode
3.Power Bank
4.3000mA Battery
2015 NEW Multifunctional Bluetooth
Mobile UHF RFID Reader, 1D 2D Barcode Readable
Product Description

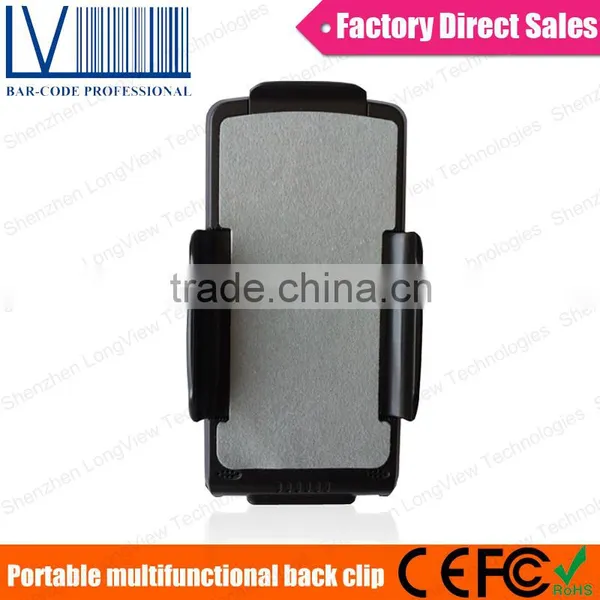

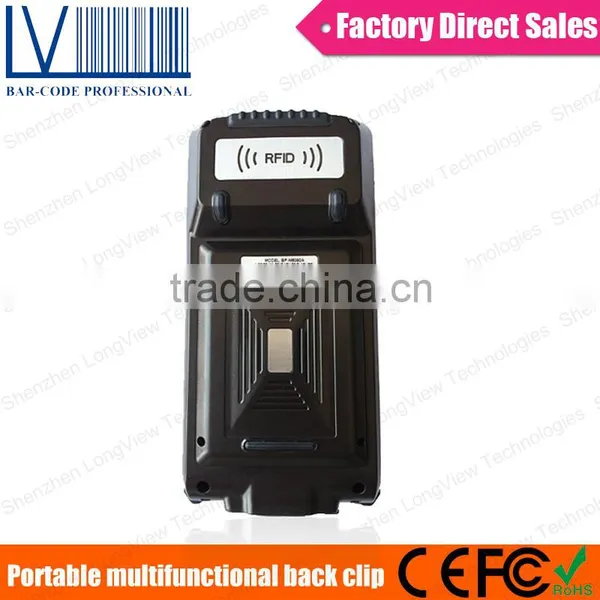

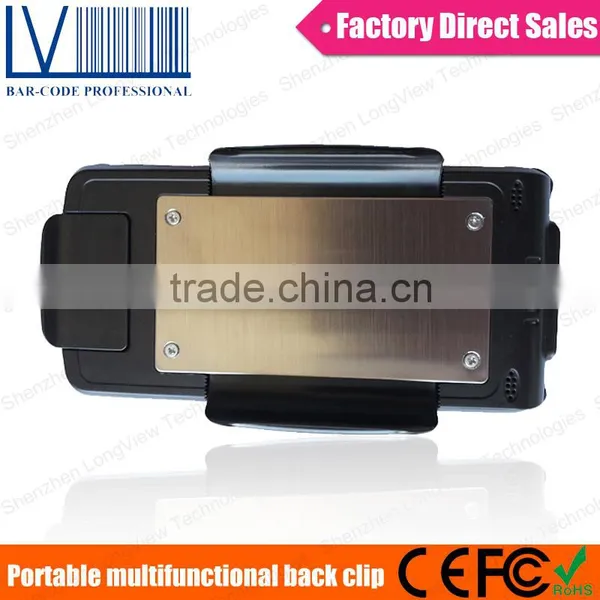

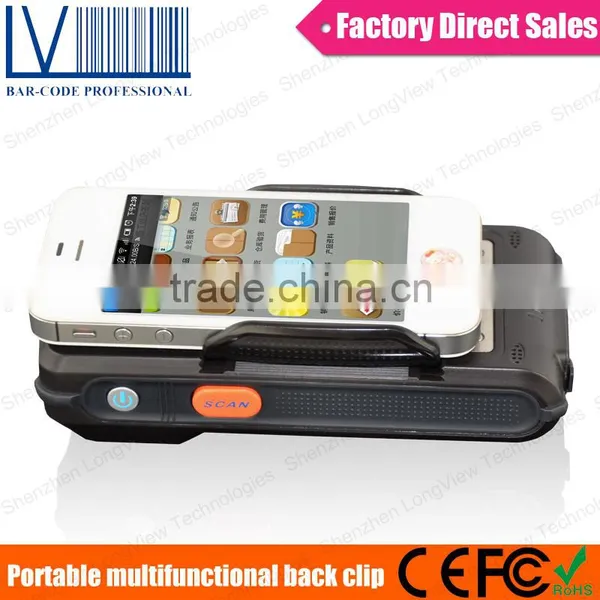

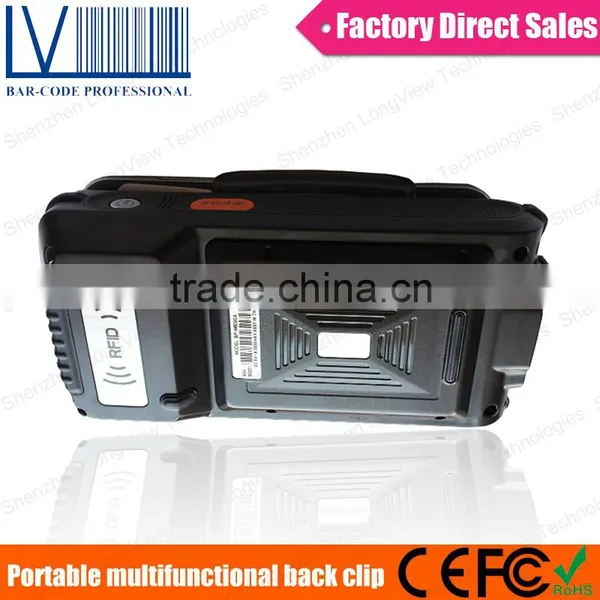

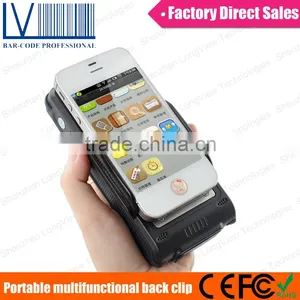

World’s First Portable Combined Multifunctional Back Clip
Advantages:
- HF/UHF RFID
- 1D/2D Barcode
- Multifunctional Design
- Power Bank
- Bluetooth Communication
- Dust and Water Proof
- Long Lifetime & Low Upgrading Cost
- Scan Button in Both Sides
- Various Reading Prompt Mode
- Fit for All Phones
- With Adjustable Snaps
- IP 54, Dust Proof and Long Duration
- UHF RFID Reader
-
-
-
Weight 240g Dimension 138 x 66 x 31mm(Thin: 31, Thick: 34) charging and discharging parameter Input 5.0±0.25V DC output 5.0±0.25V DC nominal capacity 3000mAhlithium polymer battery (>500 charge cycles) Standard Charge Circuit <1A Standard Charging method CV(constant voltage5.0V)charging charging time ≤6 hours max charging current <1A max discharge current <1A end-off voltage 3.3V Interface Bluetooth HID & SPP 1D Infrared Reading Mode CCD Resolution 2500 Scan Rate 300 scan/sec Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,ITF-14 Precision ≥ 5mil(under the condition of PCS: 0.9,Code 39) Scan Distance Code128(10mil):30mm-285mm; Code39(5mil):90mm-195mm; Code39(10mil):50mm-325mm; EAN-13(10mil):60mm-265mm; EAN-13(15mil):65mm-350mm; sensitivity incline ±65°@0°Roll and 0° Skew rotate ±30°@0°Pitch and 0°Skew declination ±60°@0°Roll and 0° Pitch outdoor scanning proprietary technology-- able to read the code bar under sun light current maximum current 100mA standby current 45mA RFID(optional) Frequency 13.56MHz Reading Mode reading-writing or auto-induction just for Reading Supported Standards ISO14443A Working distance >30mm working current <100mA Max Power Dissipation 0.33W Environment Operating temperature 0℃~45℃ Storage Temperature -10℃~ +45℃ Humidity 5% - 95% ( Non-condensing ) Clip LED display 4LED to show charging and discharging active status and electrical quantity:2LED show the working mode of Bar codes and Bluetooth working mode Auto charging Automatically charging without pressing any key when inserting into the interface by USB cable. Auto Detect Automatically detect whether to charge when inserting into the interface by USB cable. priority of charge Priority of charging mobile phone, then charging the internal battery. UPS function When external power supply breaks off, its internal battery with keep charging mobile phone. battery overcharge protection Dual hardware protection: >4.2±0.04V Battery over discharge alarm voltage HW: 2.8±0.1V & SW: <3.3V; Priority to enable software protection Output Current Limiting Threshold ≤ 1.2A short-circuit protection HW protection Standard Configuration Micro USB Cable Left and right buckle front buckle (two pieces with different height) skid and scratch resistant cloth 2pcs Warranty Card Certification Instruction Book Options 5V/2A & 5V/1A two separate output high-quality car charger (use cell phone charger for both mobile phone and back splint when indoor, and use car charger when outdoor. The car charger can also charges tablet PC. Sling AC charger Cross Screwdriver pocket
