JCCY-2 Underground Tunnel Mining Diesel LHD Loader
TECHNICAL PARAMETER
| Model | JCCY-2 Underground Tunnel Mining Diesel LHD Loader | |
| Dimensions | The length:(bucket keep flat) | 7060±100mm |
| (bucket both ends plain) | 6737±100mm | |
| The width | 1768±50mm | |
| The height(including the cab) | 1880±50mm | |
| Bucket dimension | 2 m3 | |
| Maximum lifting height | 3977±50mm | |
| Maximum uninstall height | 1830±50mm | |
| Turning radius(inside) | 2800±150mm | |
| (outside) | 5100±250mm | |
| Uninstall angle | 42°±2° | |
| Weights | Operating weight | 12500kg |
| Payload | 4000 kg | |
| Front-axle load, unlade | 5625 kg | |
| Rear-axle load, unlade | 6875 kg | |
| Tramming capacities | 1st gear | 0- 3.6 km/h |
| 2nd gear | 0-7.6 km/h | |
| 3rd gear | 0-12.5 km/h | |
| 4th gear | 0-20 km/h | |
| Climbing capacity | 34% | |
| Maximum tractive force | 104 KN | |
| Engine | Manufacturer: | Deutz |
| Type | F6L912W | |
| Design | air-cooled diesel engine two-stage combustion | |
| Max torque | 275 Nm/1600 rpm | |
| Torque converter | Manufacturer | DANA |
| Type | C272 | |
| Power transmission | Manufacturer | DANA |
| Type | R28421 | |
| Axles | Manufacturer | Xuzhou Meichi , China |
| Type | QY150 | |
| Wheel and tyre | Wheel rim | 14.00-24 |
| Tyre | 12.00-24 | |
| Hydraulic pressure system | Hoist cylinder quantity | 1 |
| Tip-over cylinder quantity | 1 | |
| Steering cylinder quantity | 1 | |

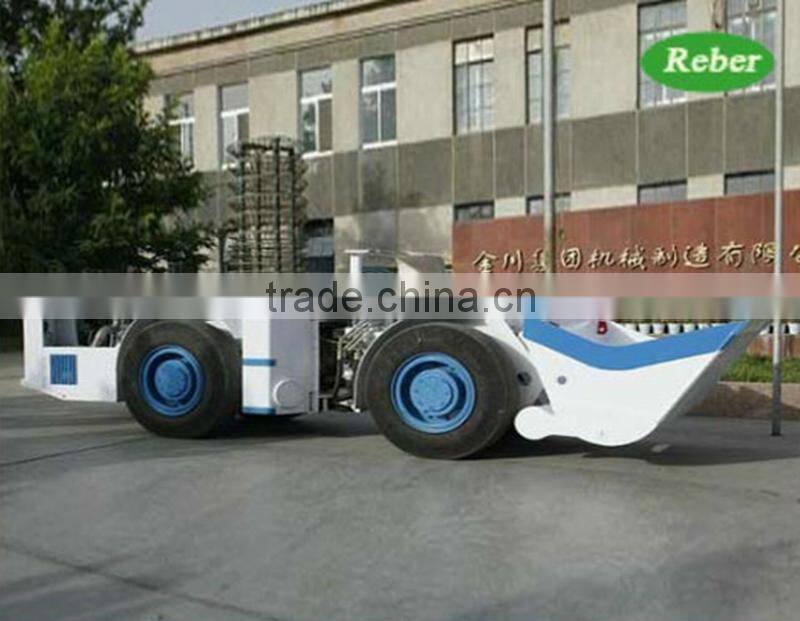

PICTURE OF MACHINE
PICTURE OF WORKSHOP

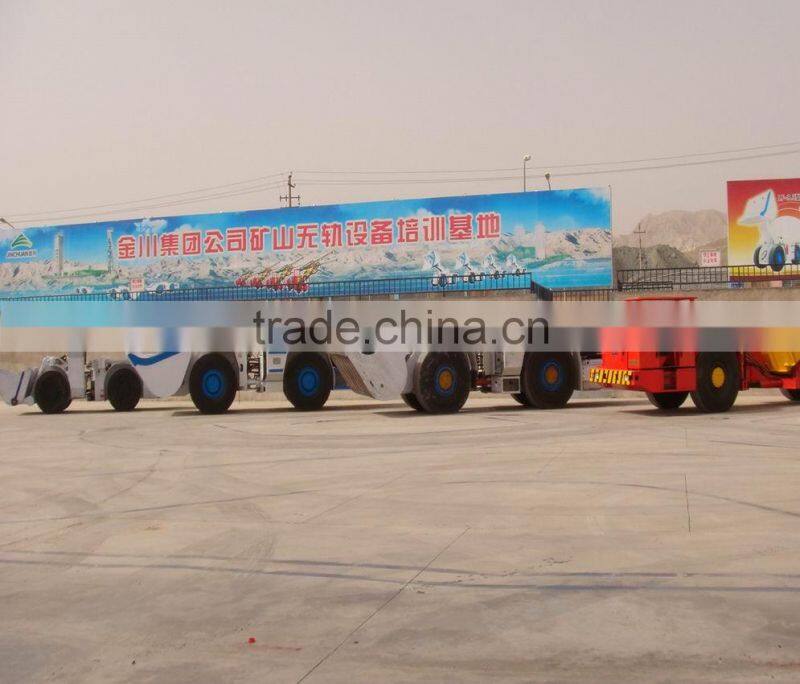

PICTURE OF TRAINGING BASE FOR MINING TRACKLESS MACHINE
PICTURE OF CUSTOMS CLEARENCE AND TRANSPORATION
PICTURE OF NEW SYNTHETICAL FACTORY BUILDING
PICTURE OF AWARDS
a. ORIGIN
The origin of our JCCY-2 Diesel LHD is in Jinchang city, Gansu Province, which is one of the most powerful manufacturers in underground equipment in China.
b.INTRODUCTION OF US
As one of the sales agents of JinChuan Group Machine Manufacture Co., Ltd., Gansu Reber Trading Co., Ltd is in charge of the sales of domestic and export for underground trackless equipment,. Such as Diesel LHD,Mining Truck and also the spare parts of them.
JinChuan Group Machinery Manufacture Co., Ltd.,is a specialty manufacturer subsidiary of Jinchuan Group Limited who enjoys the title of China’s Top 500 Enterprise. JinChuan Group Machine Manufacture Co., Ltd. rely on scientific and technological advance as well as tireless efforts to take the underground trackless equipment as the leading products, It has become one of the most powerful domestic enterprises in manufacture of underground trackless equipment. Besides, JinChuan Group Machine Manufacture Co., Ltd. is also engaged in professional design and manufacture of mining underground trackless equipment, which is a joint venture with German G.H.H Company. It integrates the using experience of underground trackless equipment of JNMC for more than 20 years, and digests and absorbs the advanced technology of Germany G.H.H Company.
Due to our goods enjoyed excellent quality and reasonable price with the superoir after- sale service, until now our equipment has been widely shipped to Africa, South America, Russia, and Mongolia and so on, which enjoyed good reputation among our customers.
c.PAYMENT TERMS
We prefer to do T/T 30% advanced,the balance 70% against the copy file of full set shipping documents.
We also accept D/P at sight and L/C at sight.
It does not mean that we do not accept any other payment terms. We can offer other payment terms based on your requirements after getting approval of China Sinosure - our insurence Co., .
So any inquiries about payment terms are welcome to be discussed with us .
d.CERTIFICATION
We passed ISO 9001:2008 Quality System Certification.
THANK YOU FOR YOU TIME AND WE ARE LOOKING FORWARD TO YOUR COOPERATION. WE WILL PROVIDE YOU THE BEST PRODUCT WITH PROFESSIONAL SERVICE! FEEL FREE TO SEND US ANY INQUIRIES!
Ms.Peng Ruijin
Gansu Reber Trading Co.Ltd.
78 hongxing Road,lanzhou,730000
Tel:0086-931-8635763, Fax:0086-931-8618187,
Mobile:13909313553/13909403600
Http://gsreber.en.china.cn
Skype:pengrj999
