NEW Slanting Uniaxial Auto-tracking Bracket
US$ 800 - 2,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GreenAnswer
Model Number:
SMS-3
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7.5HP Solar Pump System for WateringUS$ 12,000 - 17,000MOQ: 1 Set -
SP13KW(17.5HP) the Whole Solar Water Pump SystemsUS$ 20,000 - 30,000MOQ: 1 Set
-
DC Solar Pumping System for IrrigationUS$ 450 - 600MOQ: 1 Set
-
DC Solar CableUS$ 0.6 - 23MOQ: 1000 Meters
-
3KW Solar Pumping Irrigation System for Desert Area/farmland/vegetationUS$ 8,500 - 12,000MOQ: 1 Set
Place of Origin
China
Brand Name
GreenAnswer
Model Number
SMS-3
Type
Other, Slanting uniaxial Auto-tracking

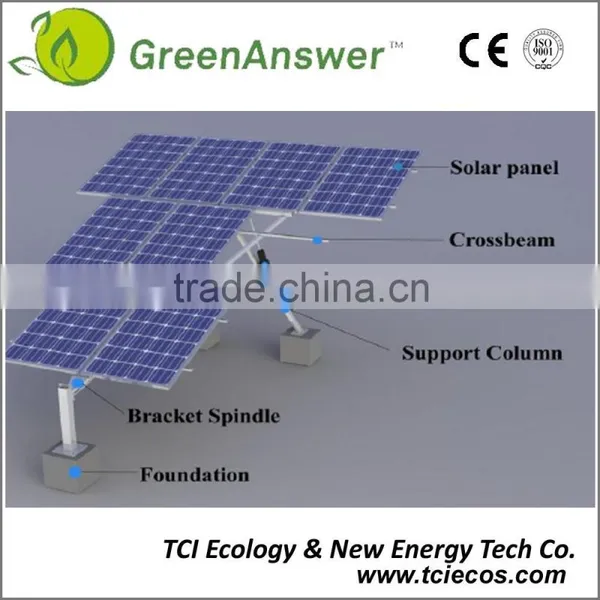

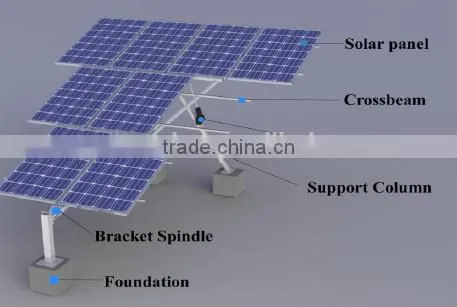

NEW Slanting uniaxial Auto-tracking bracket
Product Description
- New slanting uni-axial auto-tracking bracket
- Suitable for medium and low latitudes area
- Large PV system installation
- Just with corresponding drive and control systems
- Automatically track the entire PV array and to ensure synchronous operating system
- Conducive to maximum power point tracking (MPPT) control, thereby improving the efficiency of solar panels generating about 30%
- Meanwhile, the concrete pouring foundation structure allows the system stability is guaranteed
- Tracking system controller is cleverly installed under the panels, better waterproof effect
- Using this tracking system, no longer need to spend time to operate and biggest advantage
- Material: stainless steel, the overall lifespan of over 25 years
- Mounting system fixation: helical piles or concrete pouring
- Customized services are provided
| Technical Parameters: | |
| Tracking Mode: | Automatic tracking (PLC) |
| Power: | 24V DC, 50Hz |
| Panel Quantity: | 9 pieces, 250W poly |
| Spindle Inclination: | 0 to 30° |
| Improve Power Generation: | 30 to 40% |
| Covered Area | 17100m²/MW |
| Weight: | 176kg (without solar panels) |
| Total Power of System: | 2250W |
| Power Consumption: | 1.2kW, H/D |
| System Unction: | Shadows circumvent |
| Installation Type: | Vertical |
| System Protective Wind Speed: | ≥20m/second |
| Wind Resistance Ability: | ≤30m/second |
| Protection Grade: | IP65 |
| Site Temperature: | -40 to 65°C |
| System Life: | >25 years |
| Protect Function: | Wind/snow/high pressure/over travel |
| Warranty: | Tracking system 15 years/controlling cabinet 1 year |
