1.1KW Solar water pumping systems for factory garden

Solar Garden Water Pump Spary System

AC water pump:
Pump Power: 1.1kW
Voltage: 3-phase 380V AC, 50Hz

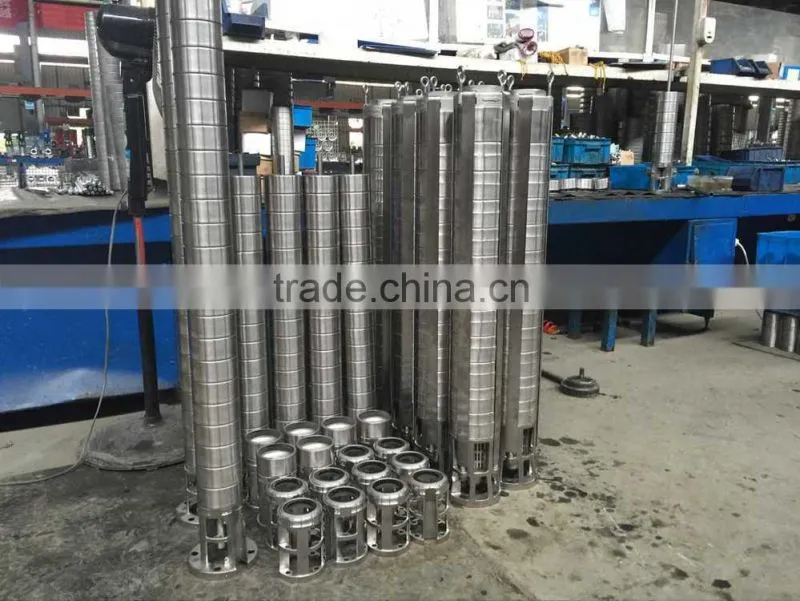

Type: multi-stage centrifugal submersible pump
Series: water cooling/reinforced motor for solar power
Maximum flow: 11m³/hour
Maximum head: 141m
Outlet: 1.25/1.5/2 inch
Diving depth: ≤50m

Materials:

Impeller: 304 stainless steel

Pump body: 304 stainless steel

Motor:Cast Iron

Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L

Maximum average daily water supply: 560m³ at 5.5kWh/m²/day

Pump Warranty: 18 months

Motor Warranty:12 months

Advantages: up to 15years lifespan, working is reliable/stable

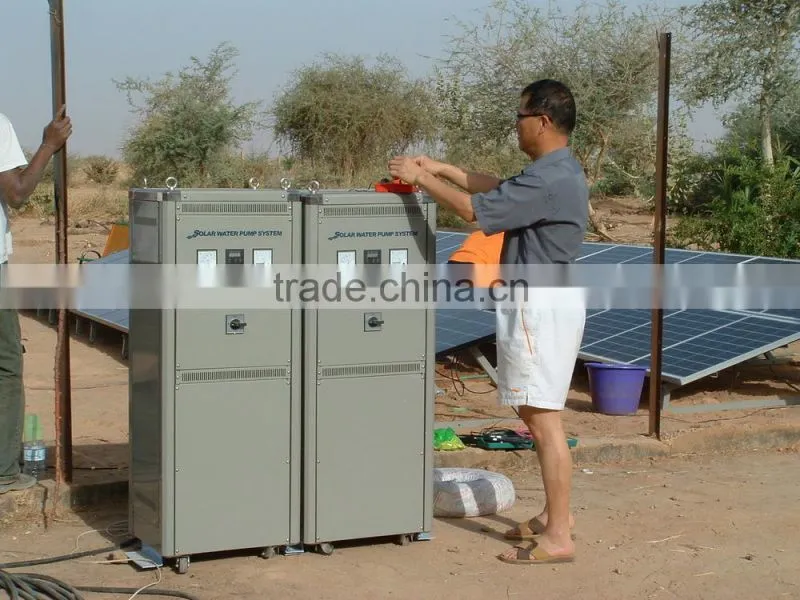

Controller & inverter:

Inverter Power: 2.2kW

Input voltage: 330-710V

Output voltage: AC, 3-phase 380V,50Hz

MPPT voltage: 450-600V

Maximum MPPT efficiency: ≥99.7%

Warranty: 2years

Protection:

Over-current/-voltage/-speed/-temperature

Reverse polarity

Dry water

Phase failure

Advantages: High MPPT efficiency, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop

Solar panel reference:

Polycrystalline solar panels, totally is 1.5kW

Positive tolerance: +0~5W

Products warranty: 5 years

Performance warranty: 80%/25-year

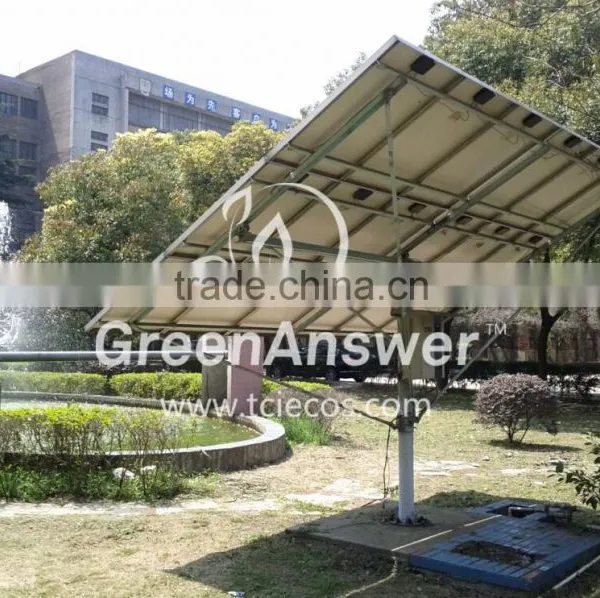

Ground mounting system:

Type: Fixed mode/Pillar manual tracking/Slanting uniaxial tracking

Foundation: concrete pouring

Material: Q235 industrial steel, Zinc-plated

Warranty: 5 years

Accessories: PV cables, water pump cables, water level detector sensor, cable sleeves, pipeline, flange and so on.

Applications:

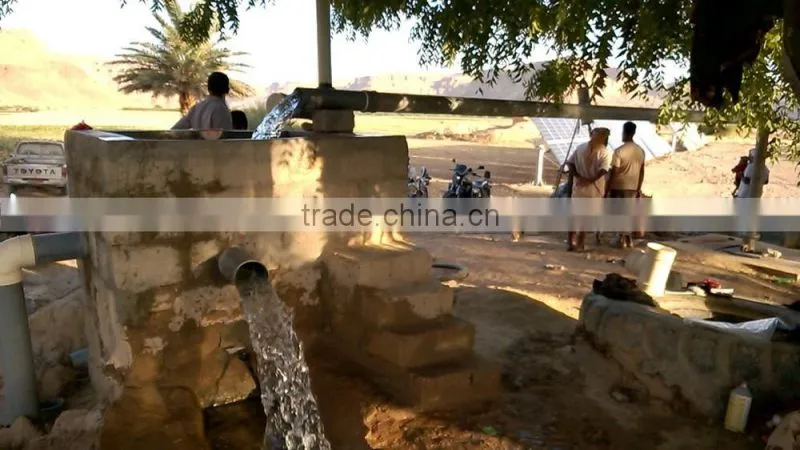

                          Ecological irrigation/solar drought control, living water supply

                          Agriculture irrigation/solar desert control

                          Solar seawater desalination system

                          Solar city water landscape/pasture irrigation
