Solar Water Pump for Irrigation and Human Drinking From River/borehole
US$ 2,200 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Green Answer
Model Number:
SP1.1K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7.5KW Solar Water Pump Irrigation With Dripping and SprinklerUS$ 11,000 - 15,000MOQ: 1 Set -
High Flow Rate Solar Water Pumps System 30KW,Urban Water Drainage Pump SystemUS$ 60,000 - 90,000MOQ: 1 Set
-
2015 High Quality Solar Energy Pumping SystemUS$ 18,500 - 28,000MOQ: 1 Set
-
Solar Power Water Pump System With Competitive PriceUS$ 90,000 - 135,000MOQ: 1 Set
-
Solar PV Water Pumping System,green Answer Solar PumpsUS$ 37,000 - 55,600MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Green Answer
Model Number
SP1.1K
Specification
Normal
Application
Commercial
Output Voltage (V)
AC380V
Load Power (W)
1.1KW
Solar Power (W)
1500W
Work Time (h)
5~6 Hours
Product Description

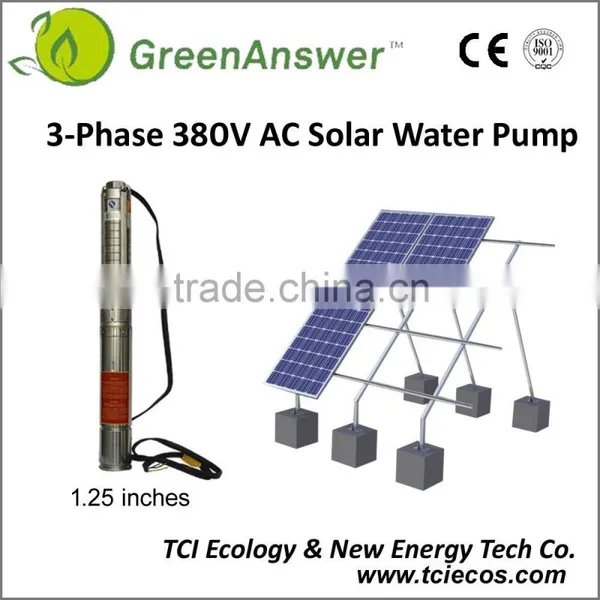

- Features:
- Power: 1.1kW
- Voltage: 3-phase 380V AC, 50Hz
- Type: multi-stage centrifugal submersible pump
- Series: water cooling and reinforced motor suitable for solar power
- Max. flow: 36m3/hour
- Max. head: 134m
- Outlet: 1.25/1.5/2/2.5/3 inches
- NEMA standard: 96mm
- Diving depth: ≤50m
- Materials:
- Water outlet: 304 stainless steel
- Impeller: 304 stainless steel
- Pump body: 304 stainless steel
- Motor casing: 304 stainless steel
- Motor shaft: 304 stainless steel
- Screw: 304 stainless steel
- Upper guide bearing, thrust bearing base: cast iron, can be updated to be stainless steel with extra cost if needed
- Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L
- Max average daily water supply: 200m³ at 5.5KWh/m²/day
- Warranty: 18 months, extend to 2-year warranty optional with extra cost
- Advantages: up to 15yrs lifespan, working is reliable and stable
- Controller and inverter:
- Power: 1.5kW
- Input voltage range: 330-710V
- Output voltage: AC, 3-phase 380V
- MPPT range: 450-600V
- Max MPPT efficiency: ≥97%, soft start/stop
- Warranty: 2-year, extended to 3-year warranty optional with extra cost
- Protection:
- Over-current, over-voltage, over-speed, over-temperature
- Reverse polarity
- Dry water/phase failure protection
- Advantages: high MPPT efficiency function, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop

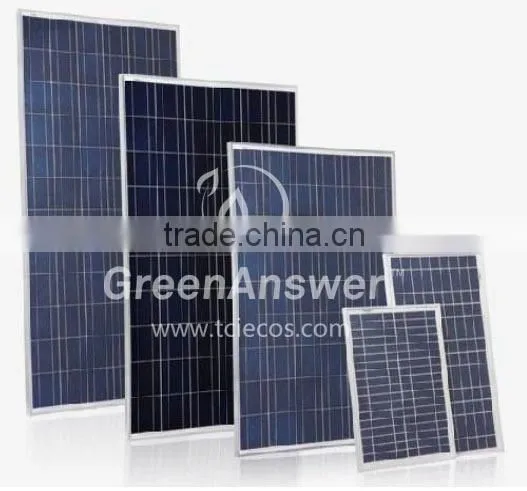

- Solar panel reference:
- Power: mono/poly, totally about 1500W
- Positive tolerance: +0/5W
- Products warranty: 5 years
- Performance warranty: 90%/10 years, 80%/25 years
- Mounting system:
- Type: fixed mode/pillar manual tracking/slanting uniaxial tracking
- Foundation: concrete pouring
- Installation type: 6 pieces/array and vertical
- Warranty: 5 years
- Material: hot-dip galvanized
- Combiner box: N/A
- Accessories: PV cables, water pump cables, water level detective sensor, cable sleeves, pipeline, flange, riser pipe
- The quantity of accessory materials are based on actual design
- Applications:
- Ecological irrigation
- Solar drought control, living water supply
- Agriculture irrigation
- Solar desert control
- Solar seawater desalination system
- Solar city water landscape
- Pasture irrigation
Packaging & Shipping

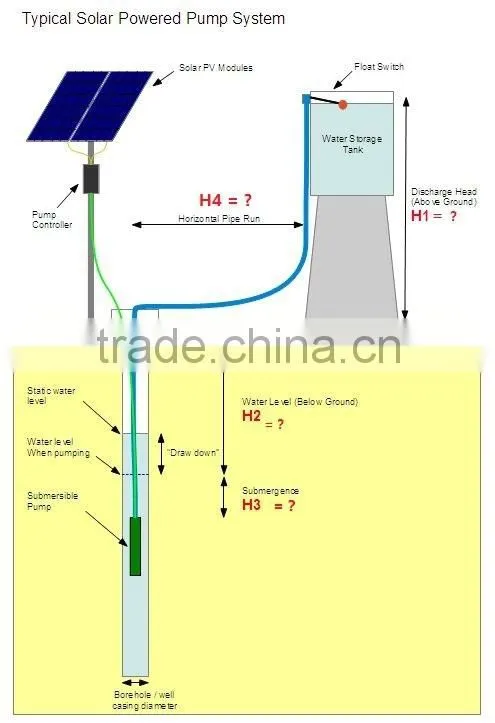

Functional Diagram
