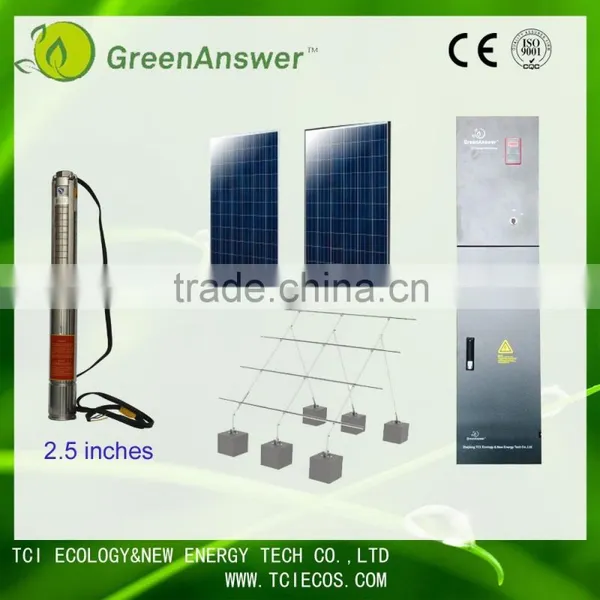

2.5-inch 3-Phase AC380V Solar Submersible Water Pumping System
US$ 22,000 - 24,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Green Anser
Model Number:
SP11K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Irrigation PumpUS$ 2,000 - 90,000MOQ: 1 Set -
Submersible Solar PumpUS$ 1,000 - 50,000MOQ: 1 Set
-
Solar Water Pumps, Submersible Pump, Deep Well PumpUS$ 10,000 - 30,000MOQ: 1 Set
-
Solar Deep Well PumpUS$ 1 - 50,000MOQ: 1 Set
-
Submersible Water Pump Solar EnergyUS$ 10,000 - 30,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Green Anser
Model Number
SP11K
Specification
Normal
Application
Commercial
Output Voltage (V)
.380
Load Power (W)
11KW
Solar Power (W)
15KW
Work Time (h)
6-8hours
- Features:
- AC water pump:
- Power: 11kW
- Voltage: 3-phase 380V AC, 50Hz
- Type: multi-stage centrifugal submersible pump
- Series: water cooling and reinforced motor suitable for solar power
- Max flow: 140m3/hour
- Max head: 184m
- Outlet: 3/4/5/6 inches
- NEMA standard: 143mm/144mm
- Diving depth: ≤50m
- Materials:
- Water outlet: 304 stainless steel
- Impeller: 304 stainless steel
- Pump body: 304 stainless steel
- Motor casing: 304 stainless steel
- Motor shaft: 304 stainless steel
- Screw: 304 stainless steel
- Upper guide bearing, thrust bearing case: cast iron, can be updated to be stainless steel with extra cost
- Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L
- Max average daily water supply: 800m³ at 5.5kWh/m²/day
- Warranty: 18 months, extend to 2-year warranty optional with extra cost
- Advantages: up to 15yrs lifespan, working is reliable and stable
- Controller and inverter:
- Power: 15kW
- Input voltage: 330-710V
- Output voltage: AC, 3-phase 380V
- MPPT voltage: 450-600V
- Max MPPT efficiency: ≥97%, soft start/stop
- Warranty: 2-year, extend to 3-year warranty optional with extra cost
- Protections:
- Over current, voltage, speed, temperature, reverse polarity, dry water, phase failure protection
- Advantages: high MPPT efficiency function, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop
- Panel reference:
- Power: mono/poly, totally about 15kW
- Positive tolerance: +0/5W
- Products warranty: 5 years
- Performance warranty: 90%/10 years, 80%/25 years
- Mounting system:
- Type: fixed mode/pillar manual tracking/slanting uniaxial tracking
- Foundation: concrete pouring
- Installation type: 6 pieces/array and vertical
- Warranty: 5 years
- Material: hot-dip galvanized
- Combiner box:
- Type of model: SH6-3A/PV array input path: 3 channels/maximum current of each PV array/string (A): DC 12A
- Maximum system voltage: DC 1000V
- Anti reserve current protection/lightning protection include:
- Protection degree: IP55
- AC water pump:
- Accessories: PV cables, water pump cables, water level detective sensor, cable sleeves, pipeline, flange, riser pipe
- The quantity of accessory materials is based on actual design
- Applications: ecological irrigation, solar drought control, solar living, water supply, agriculture irrigation, solar desert control, solar seawater desalination system, solar city water, landscape, pasture irrigation

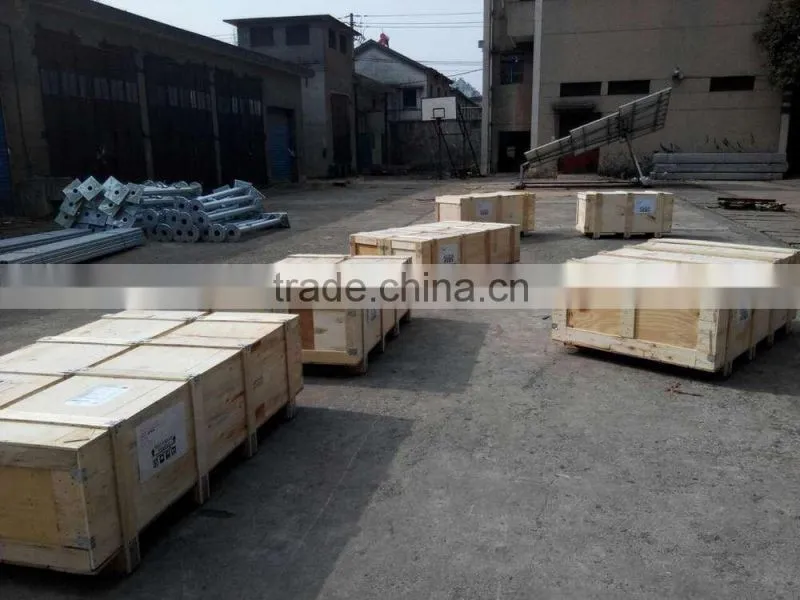

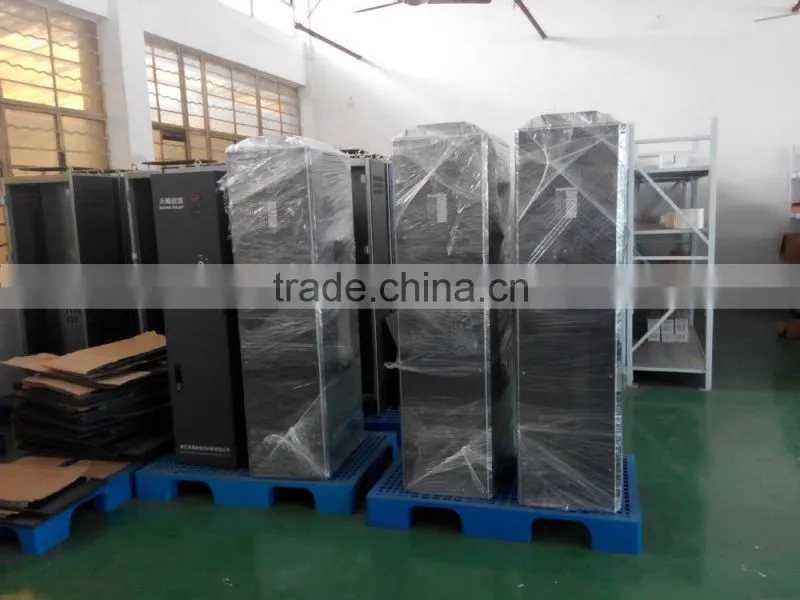

Packaging & Shipping

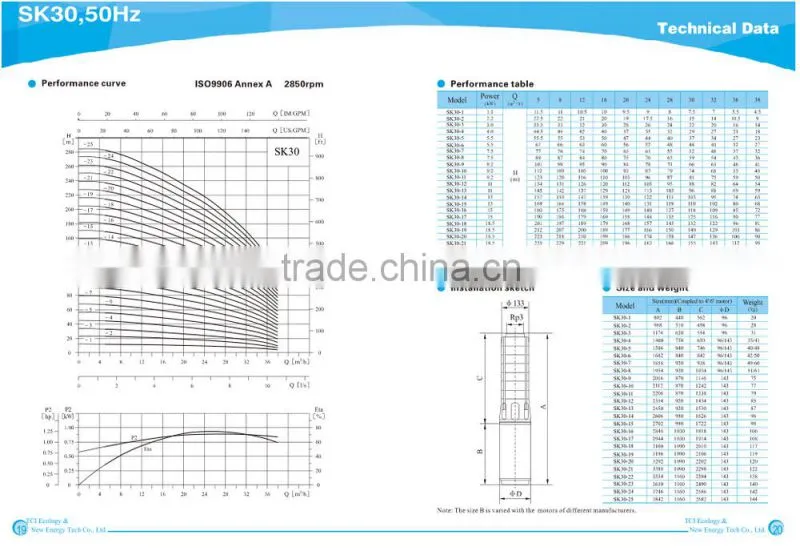

Performanc Curve

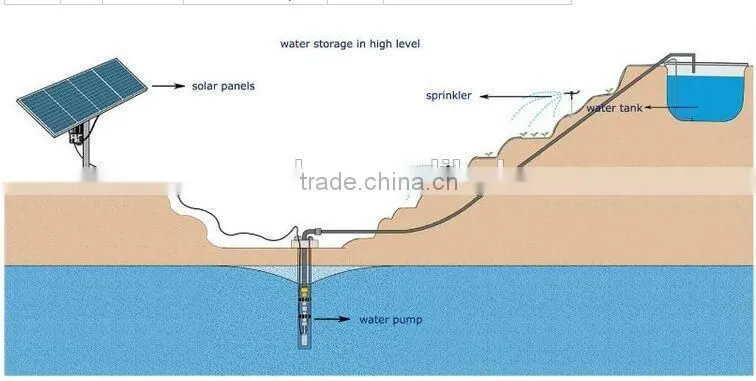

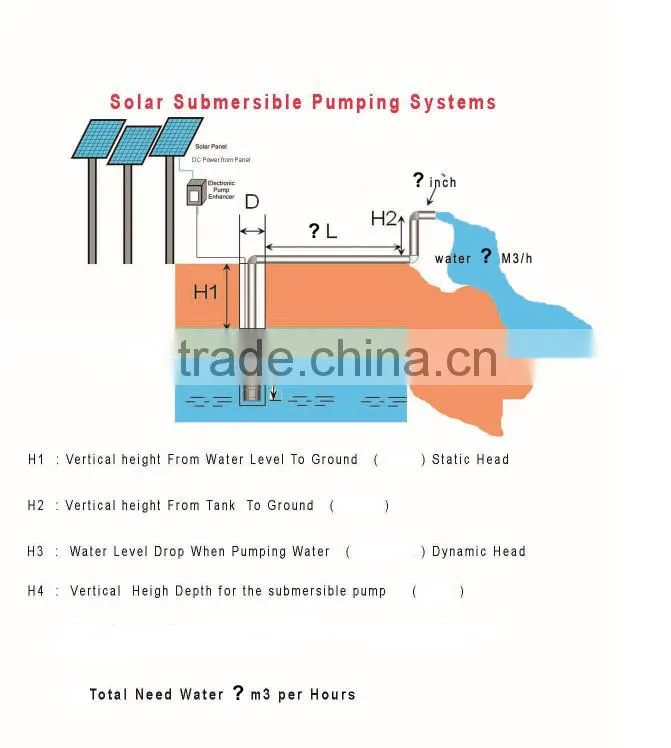

Functional Diagram
FAQ
Solar AC Pump VS DC
| Factor | Solar AC Pump | Solar DC Pump |
Cost |
Less when compared to DC | High |
|
Ability to run on Mains during nights/ when solar absent |
Yes | NO |
| Installation, maintenance & servicing | Easy | Difficult |
| Aviable application | Submersible/monoblock/open-well | Most submersible only |
| Reliablitiy | Good | Poor |
After-sell Service

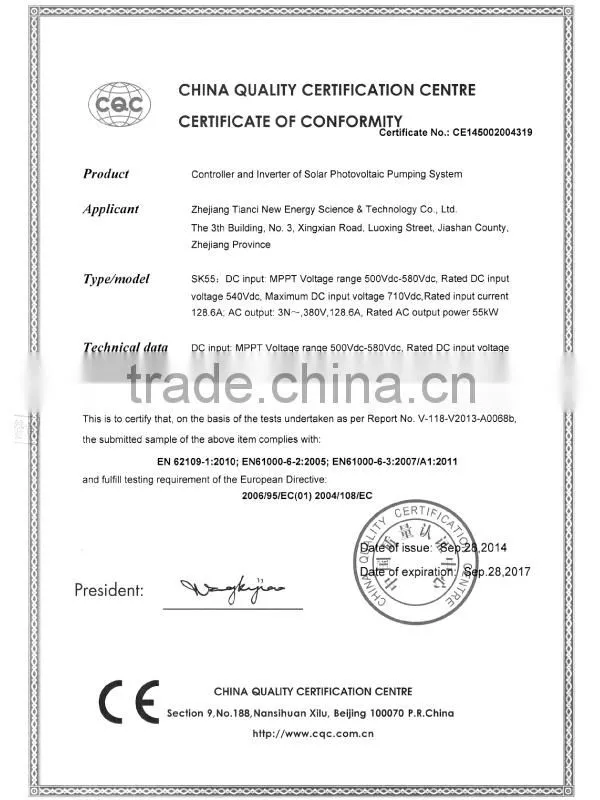

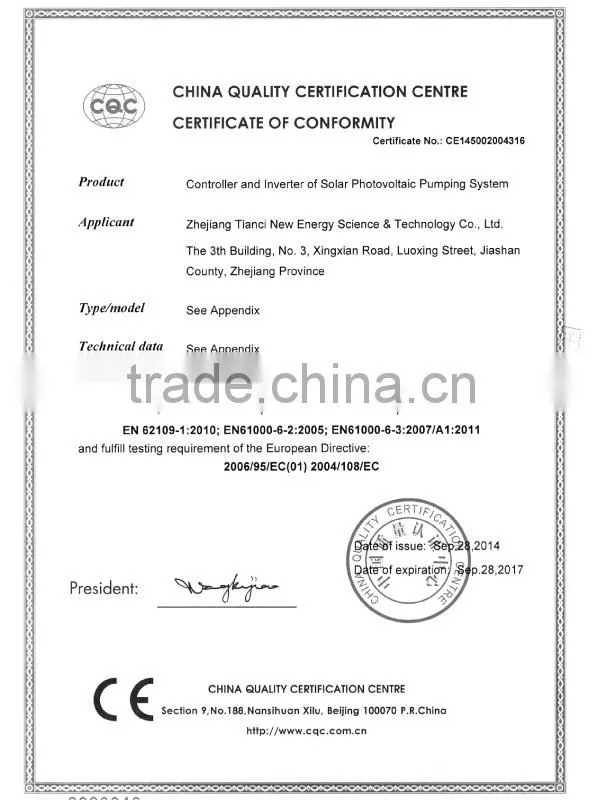

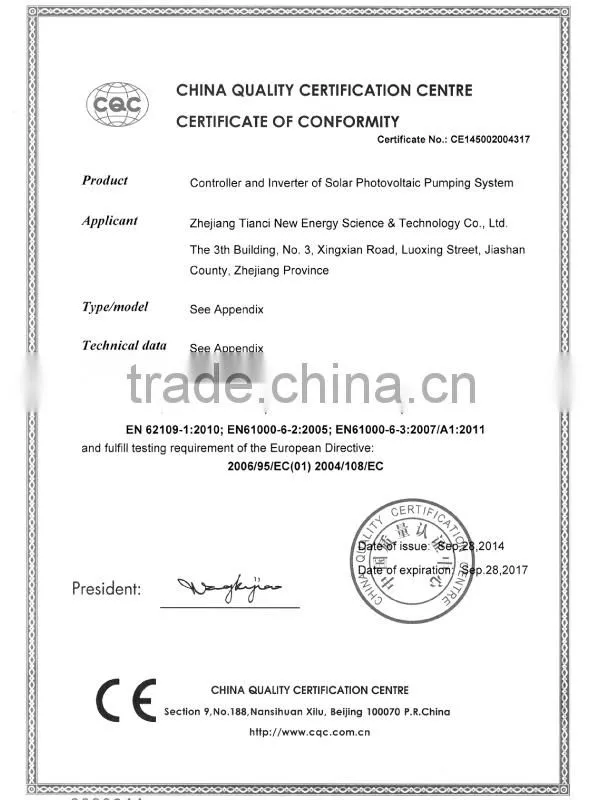

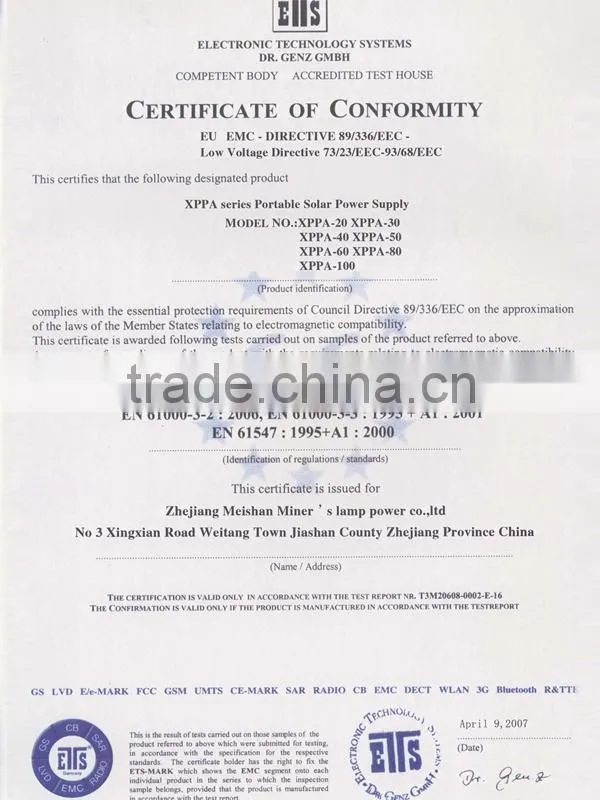

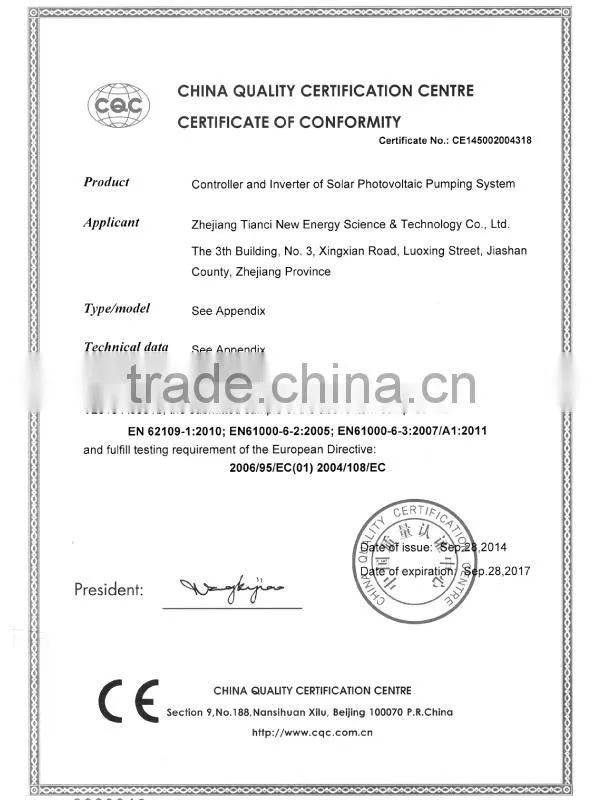

Certifications
