Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HUAFEI |
Voltage: | 380V 50HZ | Certification: | CE ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

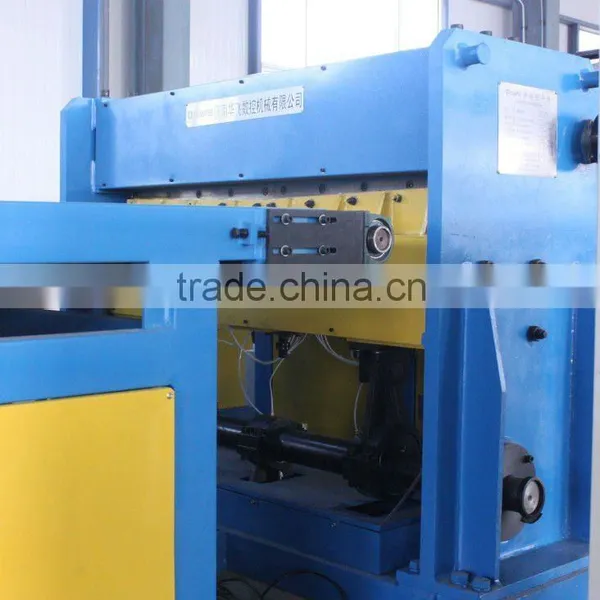

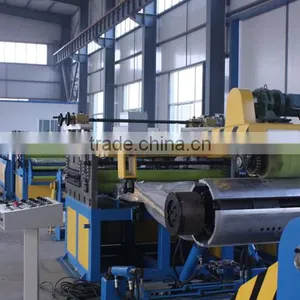

HFCL-2*1300 Cut to length line
Cut To Length Line
I. Description of machine
The series of shearing line is for the metal rolling plate after coiling, leveling, fixed length, cutting into the required length flat sheet and stacking.
It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.

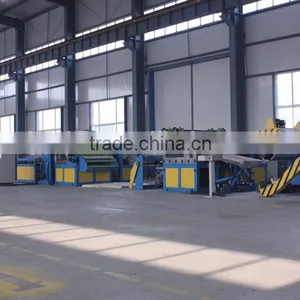

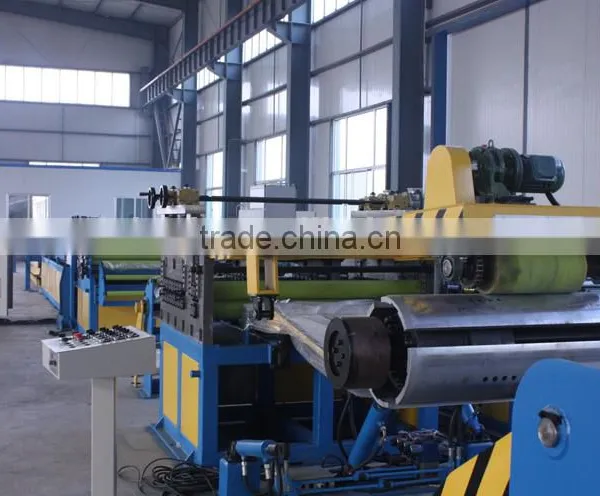

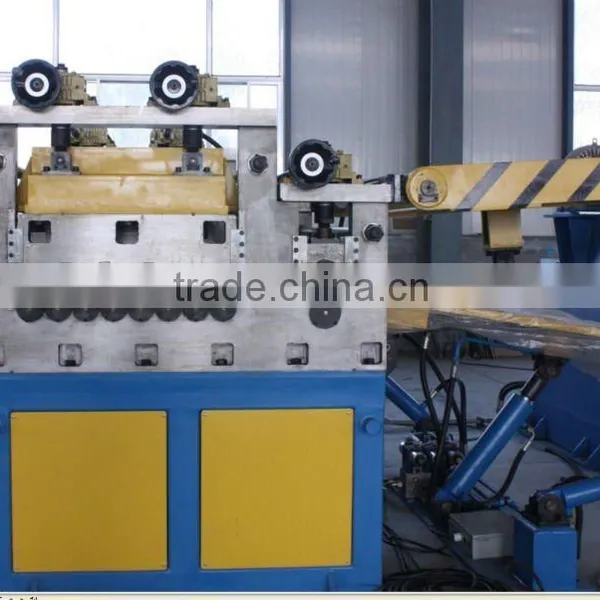

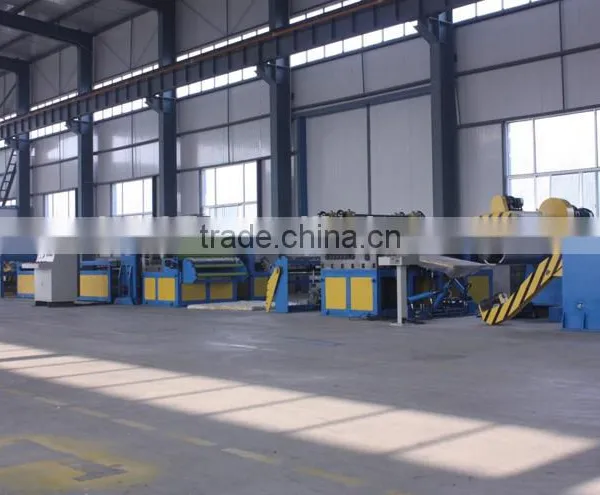

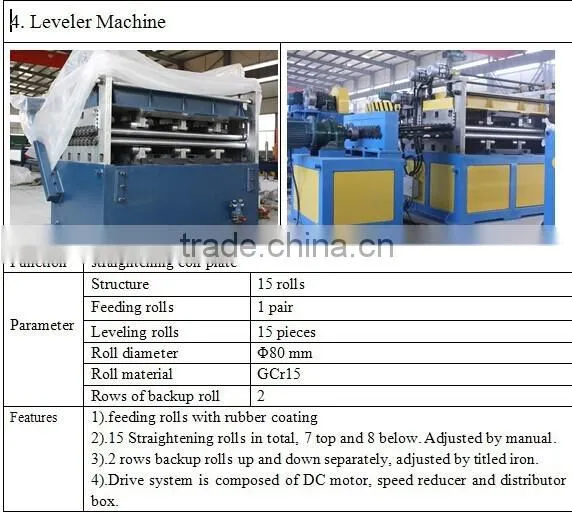

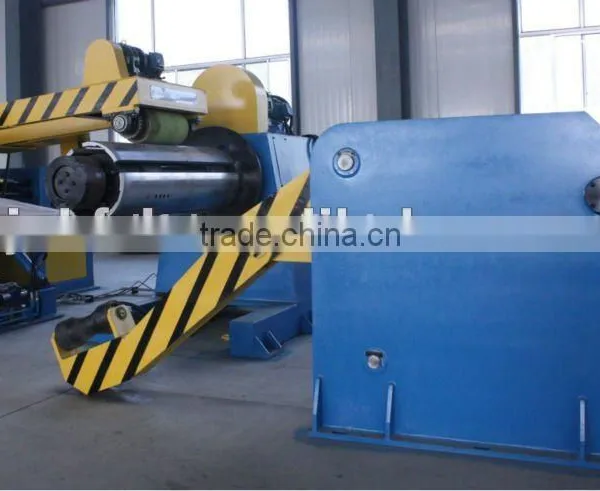

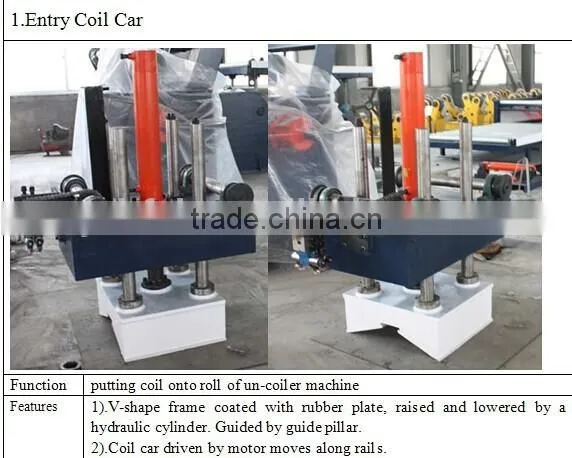

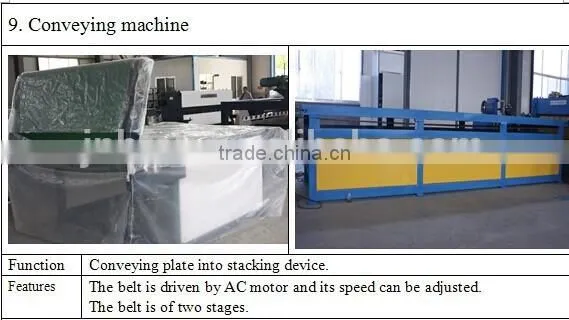

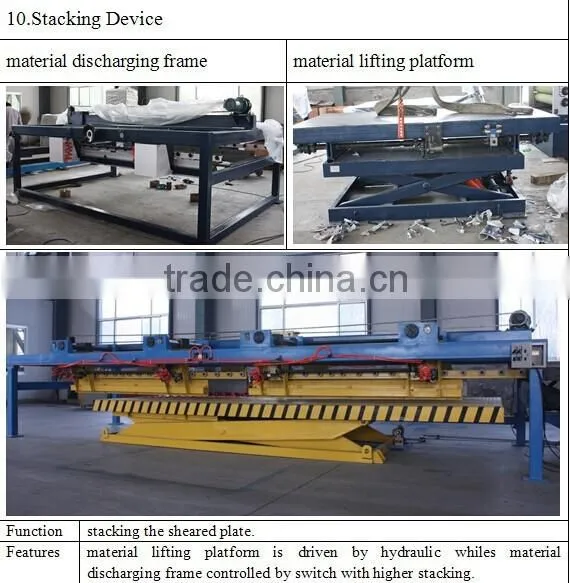

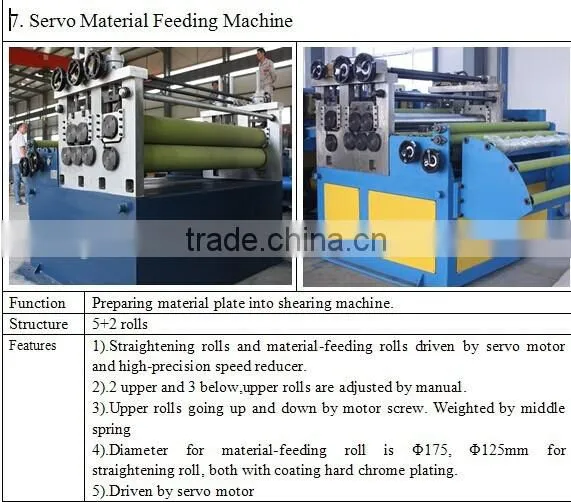

Cross cutting line consists of loading car, uncoiler, leveling, feeding mechanism, cutting machines, transport equipment, stacking equipment and other components.
II. Main technical data : the dimensions of the whole line can be made according to the customer's requirements
Model/Parameter | Thickness(mm) | Width(mm) | Cutting precision(mm) | Max. cutting speed m/min | Max. cutting number (spm) | Weight(ton) |
HFCL-2*1300 | 0.2-2 | 500-1300 | ±0.3 | 60 | 50 | 7/15 |
HFCL-2*1600 | 0.2-2 | 500-1600 | ±0.3 | 60 | 50 | 7/15 |
HFCL-2*1830 | 0.2-2 | 900-1800 | ±0.3 | 50 | 40 | 20 |
HFCL-3*1600 | 0.5-3 | 500-1600 | ±0.3 | 50 | 40 | 15 |
HFCL-3*1830 | 0.5-3 | 900-1800 | ±0.3 | 50 | 40 | 20 |
HFCL-3*2000 | 0.5-3 | 900-2000 | ±0.3 | 45 | 40 | 30 |
HFCL-6*1600 | 1-6 | 900-1600 | ±1 | 25 | 20 | 20 |
HFCL-6*2000 | 1-6 | 900-2000 | ±1 | 25 | 20 | 30 |
HFCL-8*2000 | 2-8 | 900-2000 | ±1 | 20 | 20 | 30 |
HFCL-12*2000 | 3-12 | 900-2000 | ±1.5 | 20 | 10 | 30 |
HFCL-16*2000 | 4-16 | 900-2000 | ±2 | 15 | 8 | 30 |

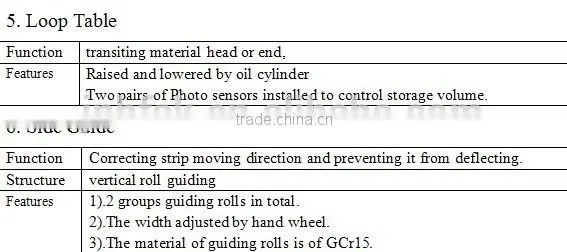

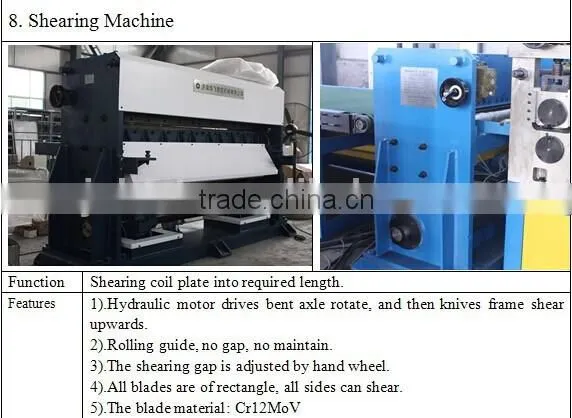

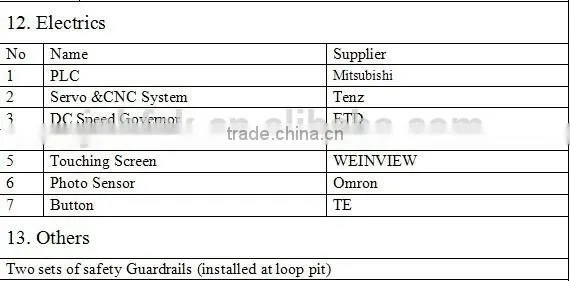

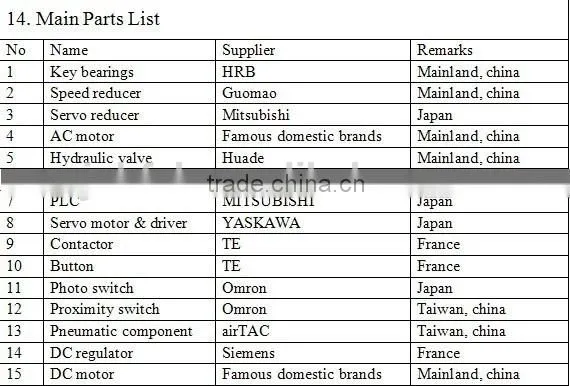

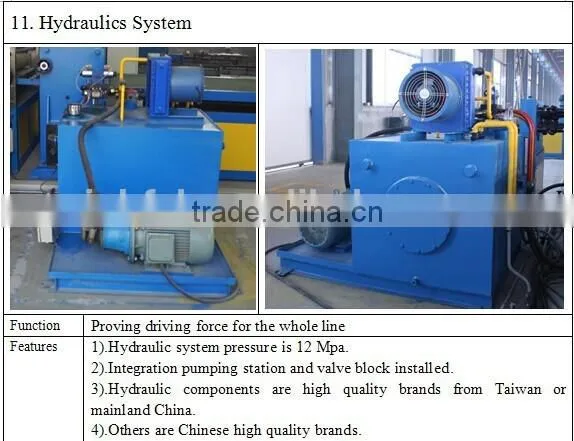

III . Configuration and Function
Since establishment, extensive experience has been accumulated and advanced QMS and professional after-sales service been built. Our HUAFEI brand
machineries are produced strictly under the requirement of ISO9001 and professional after-sales service well provided by our experienced and devoted after-sales staffs.
Warranty: one year warranty from the date of delivery (excluding quick-wear parts), free repairing service for non-artificial damages within guarantee period, also free service can be provided only with spare parts charged after warranty period expires.
Training: Technicians will be sent for installing and commissioning, after testing, free training will be provided till operation mastered and machine running normal.
Maintenance: Once faults occur out of no particular reason, technicians will be sent for repairing within 24 hours (48 hours for out-of-province) after receiving notice.
Parts: spare parts are available all the time for customers
Documents: relevant documents, operation instruction, parts description etc, will be provided after contract comes into effect.
Technical support: technical support and maintenance will be provided by professional technicians during machine usage
