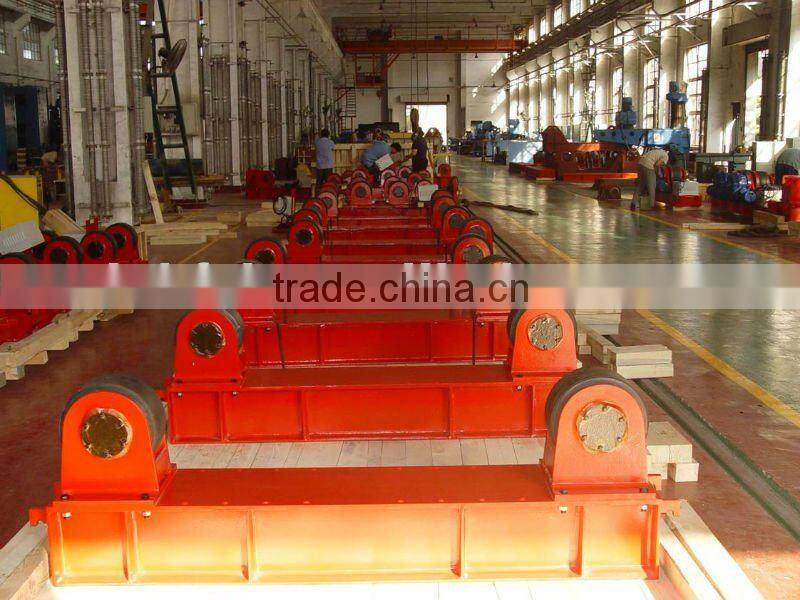

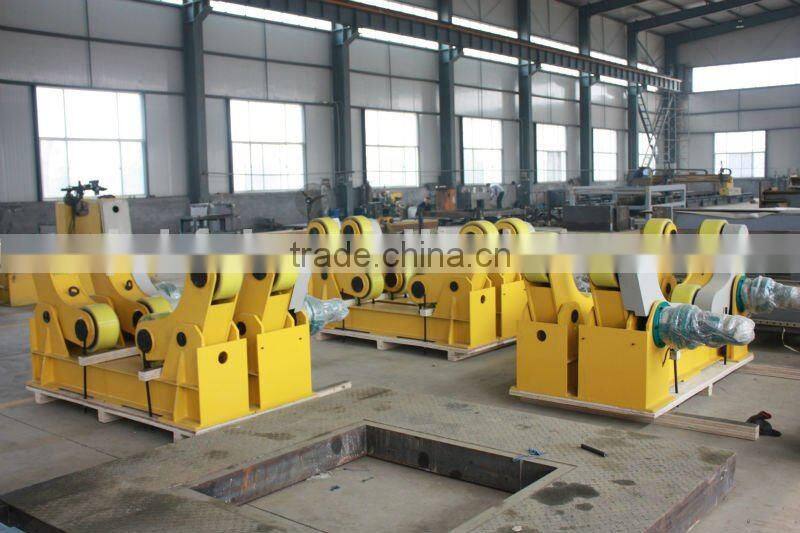

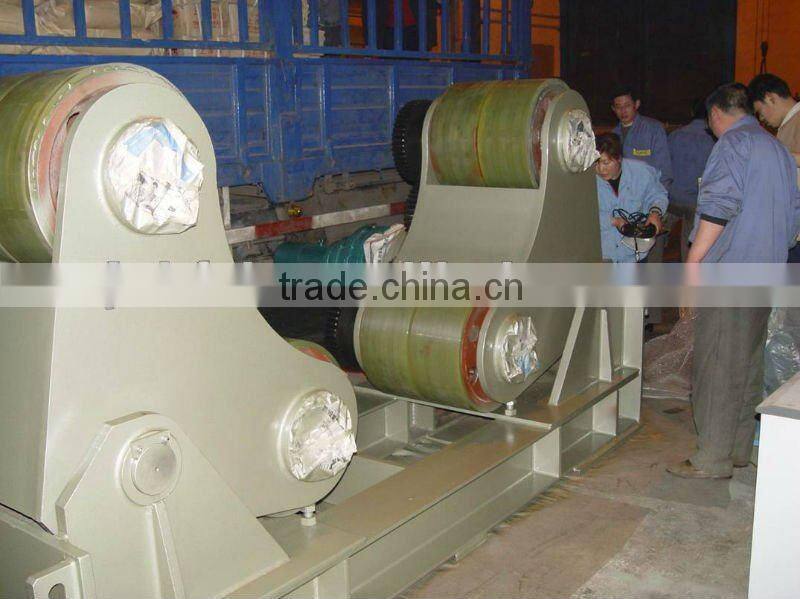

Help CenterSelf-Aligning Welding Rotator/Ajustable Welding Rotator Equipment
Related Products
-
Self-Aligned Welding Rotator/welding Rotator MachineNegotiableMOQ: 1 Set -
Automatic Pipe Welding MachineNegotiableMOQ: 1 Set
-
Automatic Circular Seam Welding MachineNegotiableMOQ: 1 Set
-
Professional Welding EquipmentNegotiableMOQ: 1 Set
-
Automatic Roll Shaft Over Laying Welding EquipmentNegotiableMOQ: 1 Set
Specifications
welding roller for welding machine1.loading capability:5-100T
2.adjustableworking speed
3.high efficiency,easy operation
self-adjusting welding roller for welding machine
Features

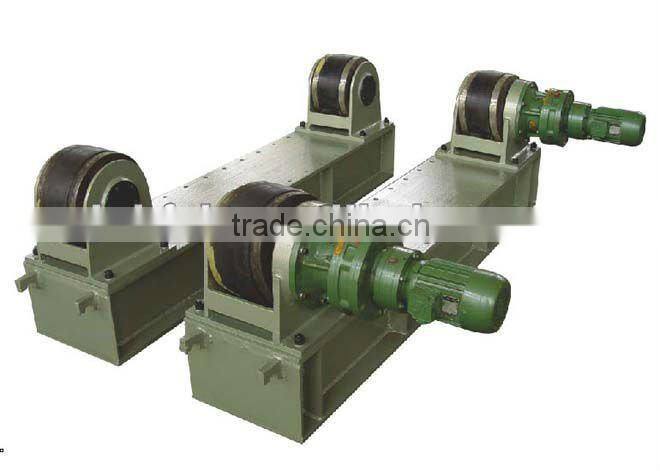

1. Self-aligned Welding turning roller can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece.
2. Double-motor driven, the roller driver adopt Planet-cycloid Reducer or worm reduction gear mode.
3. According to the customer’s requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and plastic combination wheel; it can joint control with other equipments.
4. The roller is mainly used for the welding Polish rubber lining and assembly of cylindrical roller shell, but also can assembly and weld together with other tooling for the cone inequality diameter rotary.
5. This product is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair industry.
Technical parameters
Model No. |
HG1/HG1W-5 |
HG1/HG1W -10 |
HG1/HG1W -20 |
HG1/HG1W -30 |
HG1/HG1W -40 |
HG1/HG1W -50 |
HG1/HG1W -60 |
HG1/HG1W -80 |
HG1/HG1W -100 |
||
Loading (t) |
5 |
10 |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
||
Shell Diameter |
min |
350 |
600 |
600 |
600 |
750 |
800 |
900 |
900 |
900 |
|
max |
2500 |
4000 |
4500 |
5000 |
5000 |
5000 |
5500 |
5500 |
5500 |
||
|
Roller speed (m/h) |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
||
|
Motor power (kw) |
2×0.18 |
2×0.25 |
2×0.37 |
2×0.37 |
2×0.55 |
2×0.75 |
2×0.75 |
2×1.1 |
2×1.5 |
||
Regulating mode |
Frequency control |
|
|||||||||
|
Dimen sion |
Length (mm) |
Active 1410 |
Active 1585 1450 |
Active 2165 2125 |
Active 2410 2410 |
Active 2410 2410 |
Active 2600 2600 |
Active 2600 2600 |
Active 3020 |
Active 3020 3020 |
|
|
Width (mm) |
Active 800 |
Active 872 392 |
Active 1010 425 |
Active 1260 550 |
Active 1290 550 |
Active 1360 590 |
Active 1360 590 |
Active 1745 |
Active 1770 760 |
||
|
Height (mm) |
670 |
660 |
945 |
1125 |
1135 |
1135 |
1135 |
||||
