Wireless Universal Car Audio Universal Remote CY023

Wireless Universal Car Audio Universal Remote CY023 thumbnail-1
Wireless Universal Car Audio Universal Remote CY023 photo-1
US$ 1.5 - 3.5 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
CY
Model Number:
CY402PC
Use:
Universal
Contact Supplier Request Quote Chat Now
Shenzhen Yaoertai Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CY
Model Number CY402PC
Use Universal
Place of Origin Guangdong, China

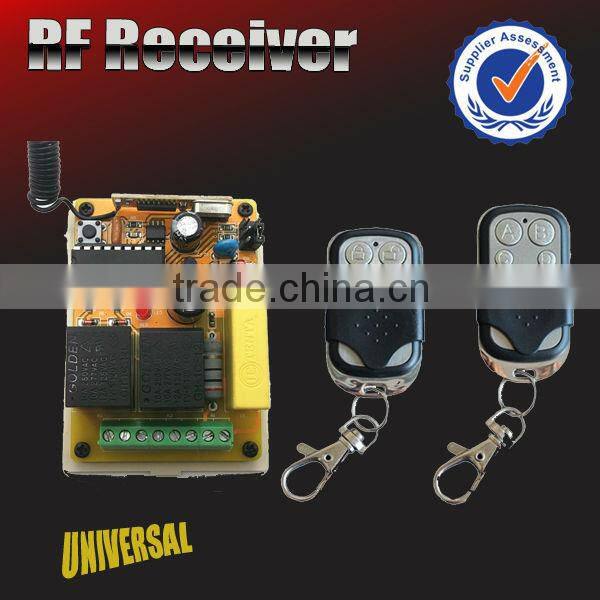

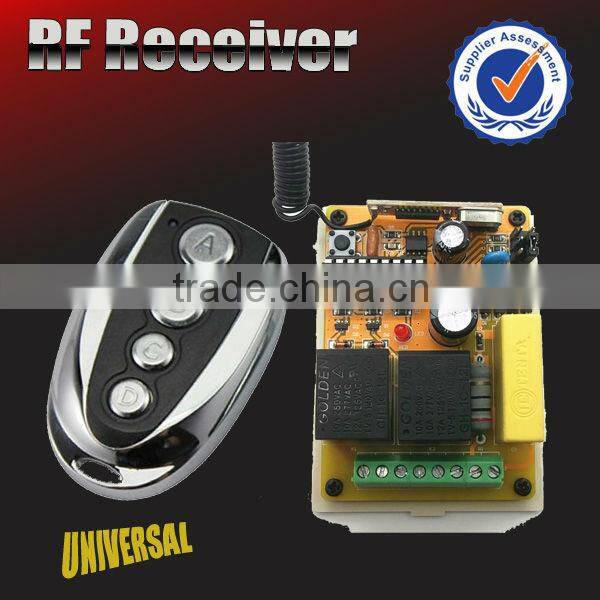

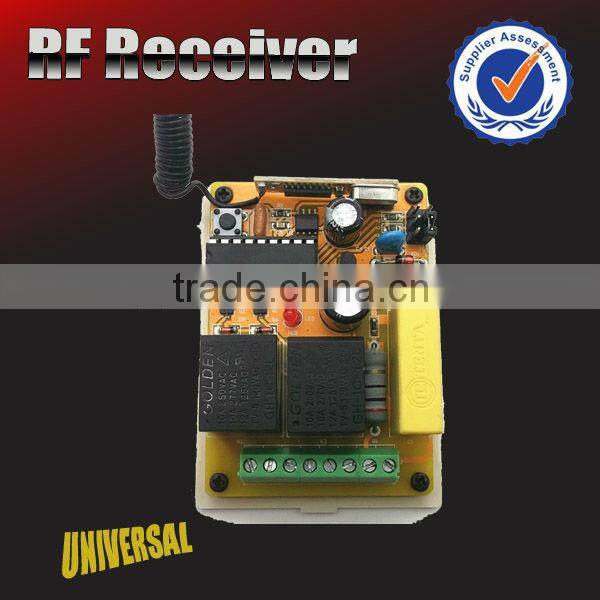

Wireless universal car audio universal remote CY023



1. A brief introduction



Our factory design and produce the Six Channels wireless control switch what can provide switch signal to the six relays, so it can meet many requirements such as: control motor’s TTcorotationTT and reversal, the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security line







This kind of wireless control switch is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however it could learning again by the owner if want to obtain the right of use. There are 3 kind of output ways- signal self-self locking; signal interlock; signal inching.







2. The way of output



1. Signal inching – Number 1 key learning



2. Signal interlock - Number 2 key learning



3. Signal self-self locking- Number 4 key learning



(check the Circuit diagram for details)







3. Learning way and steps



1. Press learning key of receiver-indicate enter into the status of learning as you hear the sounds of buzzer.



2. Press any button of the remote control-indicate learning success as you hear the sounds of buzzer.



4. Delete memory message







Press the learning button of the receiver about 7 seconds until the LED light is extinguished, which indicate success to delete the memory message.







5. Main Technique Data



Working voltage

DC12V/ 24V(optional)

Static working current

≤7mA

Working temperature

-40°C - +80°C

Receiving sensitive

≥-105dBm

Working frequency

315MHz,433MHz

Output voltage

alternating current or direct current

Output current

≤10A

Size

74.5mm*54.5mm*27mm







6. Circuit diagram for your reference





Wireless universal car audio universal remote CY023Wireless universal car audio universal remote CY023Wireless universal car audio universal remote CY023

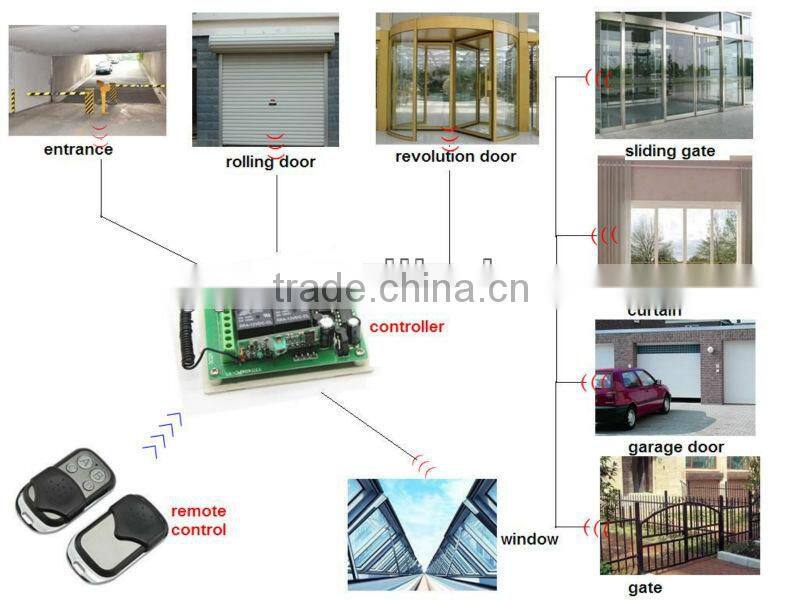

APPLICATION:

•      Garage door and gate openers

•      Remote controls

•      Remote fan and light control

•      Smart home system

•      Alarm and security system





For order:

1.Accept OEM.

2.Print logo on the case and pakage

3.Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional.

4.Minimum Order:100 pcs(accept trial order)

5.Delivery Details:within two weeks.

Wireless universal car audio universal remote CY023



Wireless universal car audio universal remote CY023Our service:
Your inquiry related to our products or prices will be replied in 12 hours with
well-trained and experienced staffs to answer all your enquires in fluent English
OEM&ODM,any your customized products we can help you to design and put into production
Protection of your sales area, ideas of design and all your private information
Deliver by air mail or ship for your orders.
