VMC-1580 Auto Parts Milling Machining Center
1.table size: 900*1800mm
2.X/Y/Z travel: 1600/900/680mm
3.MITSUBISHI/FANUC system
4. Max. Load of working table: 1600kg
5.Belt type spindle:BT50-155: 8000rpm
6. Three axis cutting feed: 8000mm/min
Main Description:
1. All main parts adopt high strength cast iron, shock absorption power, good wear resistance; And the stress relieving aging treatment, ensure the machine can maintain the best accurancy for a long time.
2. All the main parts are the 3-D dynamic finite element analysis, more can enhance the stability of high speed cutting.
3. Three axis structures adopt hard rail design, the guide rail sticky plastic use American chardonnay board sticky plastic. high rigidity, high wear resistance, low noise, low friction characteristics, to ensure the positioning precision and achining error control.
The Reasons for Choosing us:
1.Excellent after-sale-service
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
2. High quality
The main parts of our machines are imported from Japan, Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
Specification
| Specifications | ||||
| Item Model | Unit | VMC-1580 | VMC-1690 | VMC-1890 |
| working tale size | mm | 800x1700 | 900x1800 | 900x2000 |
| X/Y/Z travel | mm | 1500/800/700 | 1600/900/680 | 1800/900/680 |
| Distance between spindle end and table | mm | 170/870 | 160/840 | 160/840 |
| Distance between spindle center and column guide way | mm | 800 | 950 | 950 |
| Maximum weight of working table | kg | 1500 | 1600 | 1600 |
| table-T-slot | mm | 5-22-135 | 5-22-165 | 5-22-165 |
| X/Y/Z axis rapid feed | mm/min | 16000 | 16000 | 16000 |
| three axis working rapid speed | mm/min | 8000 | 8000 | 8000 |
| X.Y.Z axis screw mandrel size | mm | 6310/6310/5010 | 5508 | 5508 |
| positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| spindle speed | rpm | 8000 | 8000 | 8000 |
| spindle taper | mm | BT50/155 | BT50/190 | BT50/190 |
| control system | / | MITSUBISHI-M70VA/FANUC0i-mate-MD | ||
| torque force of spindle motor | nm/kw | 95.5/18.5 | 95.5/18.5 | 118/22 |
| torque force of X.Y.Z motor | nm | 37.2-122 | 37.2-122 | 37.2-122/49-152 |
| pneumatic source requirement | Kg/Cm2 | 6 | 6 | 6 |
| power consumption | kva | 30 | 30 | 35 |
| machine size | mm | 4110*3100*3200 | 4310*3100*3300 | 4310*3100*3300 |
| machine weight | kg | 12300 | 12800 | 13500 |
| We reserve the rights on the designing, colors,specification and termination of use of our products.Changes to these factors will not be notified. | ||||
| Standard accessories: | Special accessories: | ||||
| * Full closed guard | *Rotary table | ||||
| * Electrical box heater exchanger | *Automatic tool length measurement system | ||||
| * Belt drive | *Spindle oil cooler | ||||
| * Cutting coolant unit | *Scraps conveyer | ||||
| * Cutting air blowing device | *Spindle speed:10000/12000rpm | ||||

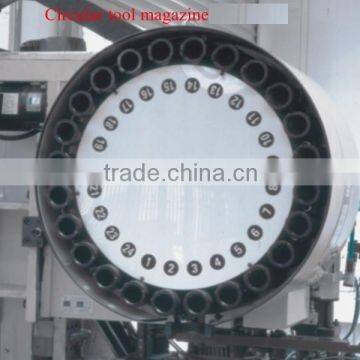

| * Axis extend guard | *bamboo hat type tool magazine /Circular tool magazine | ||||
| *Operation maintenance Manual | *Spindle central water discharge | ||||
| * DNC computer transmission line | *voltage stabilizer | ||||
| * 3 axis Pretensioned Ball Screws | ZF gear box | ||||
| *Warning light of three color | |||||
| * Spindle air blast | |||||
| * Rigid tapping | |||||
| * Program storage | |||||
| * Automatic lubrication system | |||||
| * Horizontal bolts and pads | |||||
| * Explosion-proof work light | |||||
| * Plug type hand wheel | |||||
| * Tool box | |||||
If you need more detailed information, please do not hesitate to call us. Or contact at Skype: kevin.8808
If you need more detailed information, please do not hesitate to call us. Or contact at Skype: kevin.8808
