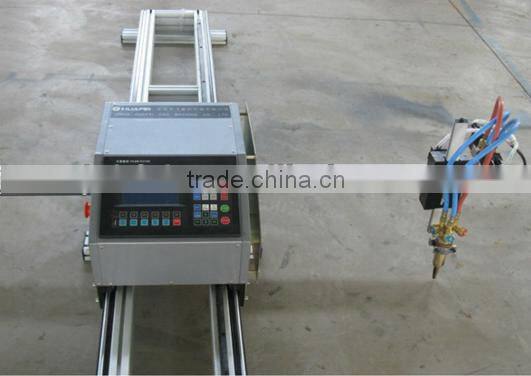

Portable CNC Cutting Machine
Features
This product with reasonable overall structure is the lightest, most economical cutting machine. Transversal effective cutting width is 1.0m and 1.2m and longitudinal effective cutting length is 1.5, 2m, 2.5m. With automatic ignition and the electronic lifting system, it supports two cutting ways of plasma and flame. It can be applied to metal materials or non-ferrous metal cutting of medium and small enterprises. It can be used in either indoor or outdoor situations. Any complex plane Graphics can be cut. Flexible, easy to use, move anytime, it do not occupy fixed sites.
Product Description
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely used in industries such as machinery, automobile, ship building, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Technical parameter
|
Portable cnc flame / plasma cutting machine
| ||||
Model |
BQG1020 |
BQG1225 |
BQG1525 |
|
Power source |
220±10%VAC 50/60Hz 220W |
|||
Cutting mode |
O2/C3H8 or C2H2, Plasma available |
|||
Effective cutting range(mm) |
1000×2000 |
1200×2500 |
1500×2500 |
|

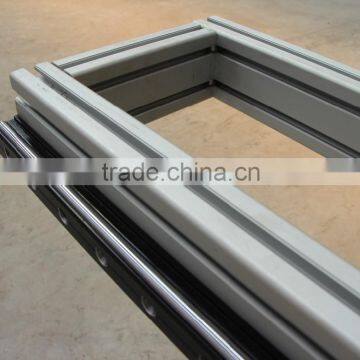

Track L×W×H(mm) |
2500×273×60 |
3000×273×60 |
3000×273×60 |
|
Track Holder Quantity |
2 |
3 |
3 |
|
Track Holder L×W×H(mm) |
500×80×40 |
|||
Cutting speed(mm/min) |
0-3500 (Max 4000 available) |
|||
Cutting thickness(Flame)(mm) |
5-150 (O2/C3H8 or C2H2) |
|||
Cutting thickness(Plasma)(mm) |
In terms of plasma power source |
|||
Move precision |
±0.2mm/m |
|||
|
|
|
|
|

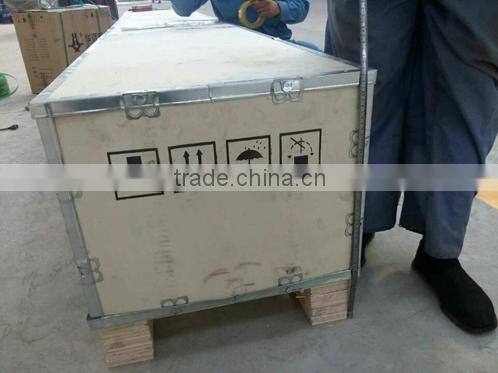

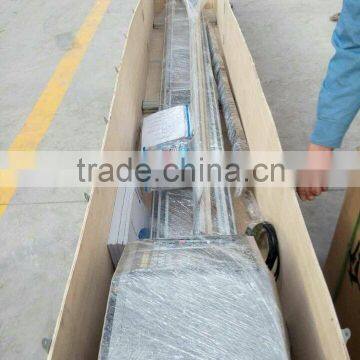

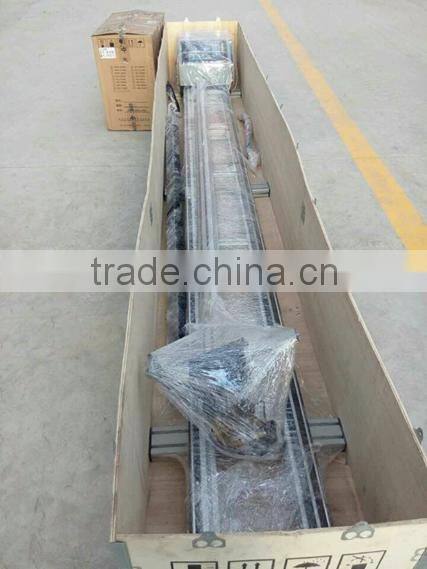

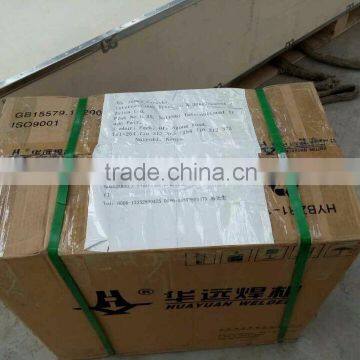

Package

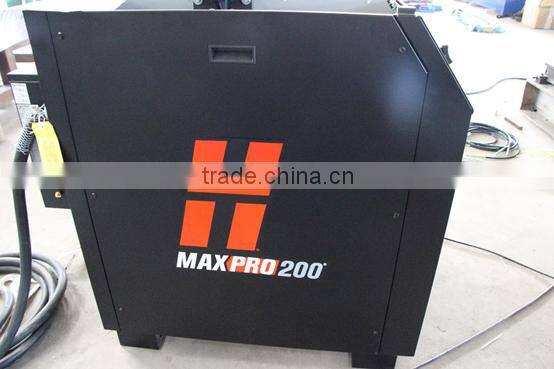

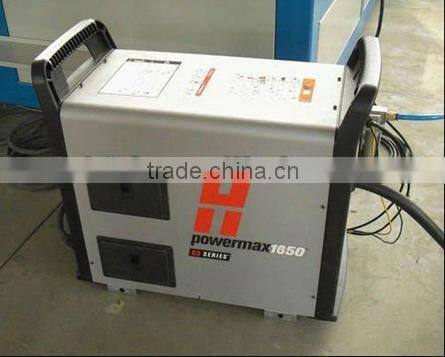

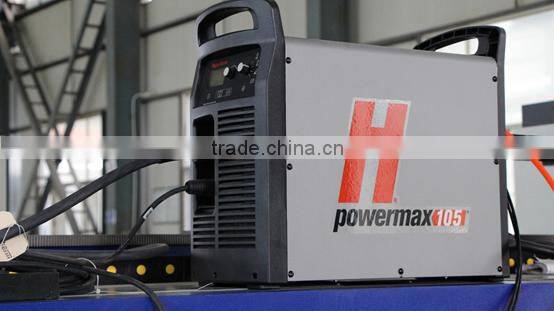

USA imported power source
After-Sales Service
Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .
Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine
one year warranty, life-long maintenance services through email or telphone .Please feel free to use.
Supply all kinds of accessories and replacement.
According to user equipment use environment ,effective cutting range, cutting parameters
Such as material and thickness ,to provide users with the most economical and practical solution for CNC cutting technology
Guarantee for one year, 24-hour technical support by E-mail or calling, User friendly English manual and video for machine using and maintaining

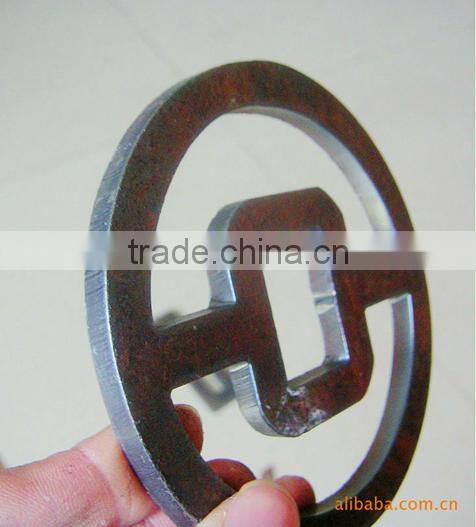

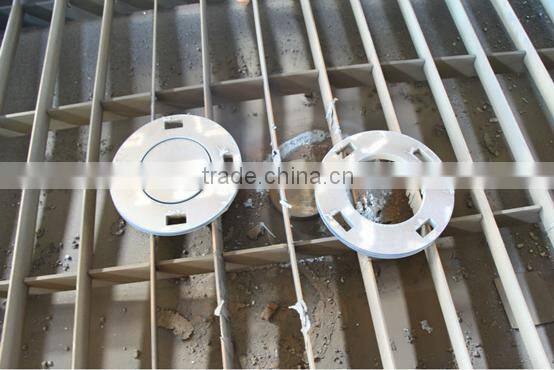

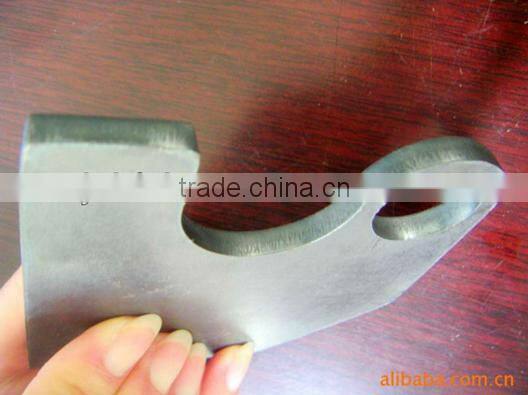

Samples

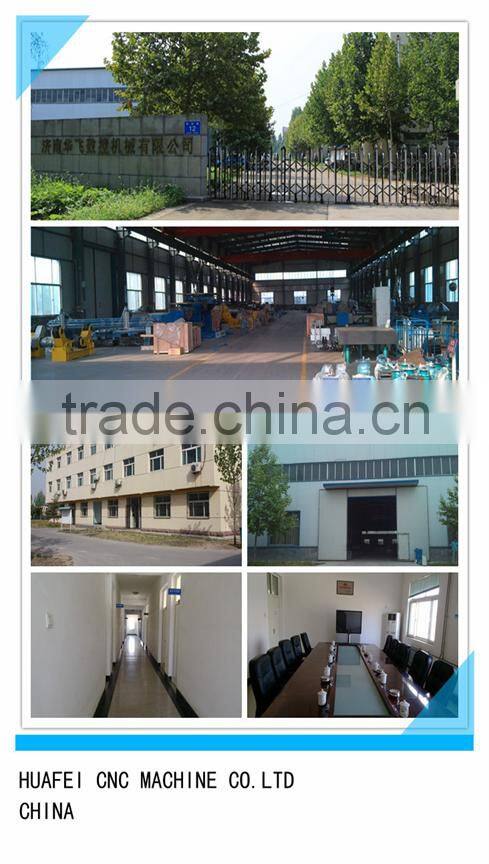

Company Information
We can warranty that:
When quality remains the same,our price is lower
When price remains the same,our quality is higher
