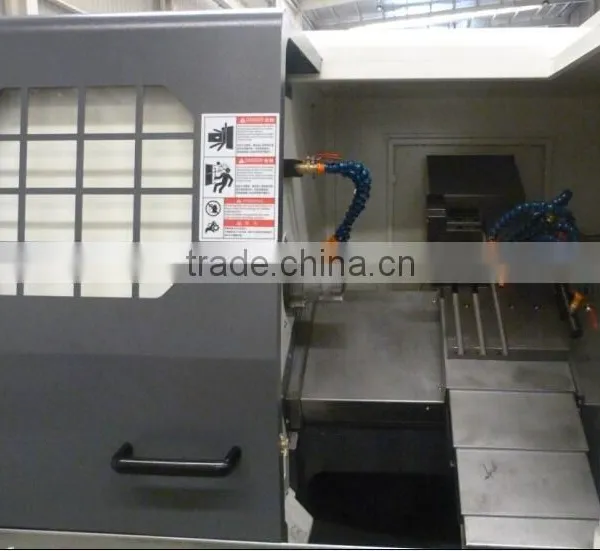

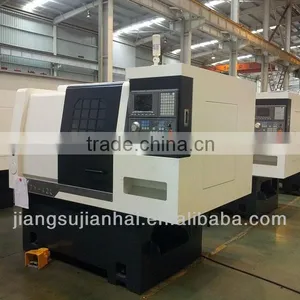

High Speed,High Precision,High Rigidity CNC Lathe---TCK-40L/40HL
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed,High Precision,High Rigidity CNC Lathe---TCK-45L/45HNegotiableMOQ: 1 Set -
Newest Slant Bed CNC Lathe Machine TCK SeriesNegotiableMOQ: 1 Set
-
5-axis VMC1060 CNC Vertical Milling Machine for SaleUS$ 35,000 - 45,000MOQ: 1 Set
-
High Speed Tapping Machine T5 / T7NegotiableMOQ: 1 Set
-
Three Axes Line Rail CNC Vertical Machining Center With Jpanese SystemNegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Place of Origin
China
Brand Name
HHT
Model Number
TCK-40L,40HL
Certification
ISO/CE
After-sales Service Provided
Engineers available to service machinery overseas
Feature:
- Maximum spindle speed:5000rmp
- Spindle hole diameter:56mm
- Maximum processing diameter:360mm
- X/Z axis rapid traverse:30m/min
TCK-40L use 30° inclined type layout,integrated bed and base with high strength cast iron,has improved high precision and high rigidity of machine,for the user provides a guarantee of high efficiency and high reliability.
Specifications:
| Item Model | Name | Unit | TCK-40L | TCK-40HL |
| Processing range parameters | The maximun rotating diameter of bed | mm | Φ400 | Φ450 |
| Maximum processing diameter | mm | Φ360 | Φ380 |
|
| Swing over carriage | mm | Φ170 | Φ250 |
|
| Maximum processing length | mm | 350 | 500 | |
| Bar diameter | mm | 45 | 52 |
|
|
spindle motor hydrocylinder Chuck |
Spindle nose | / | A2-5 | A2-6 |
| Spindle hole diameter | mm | Φ56 |
Φ66 |
|
| Maximum speed of spindle | rpm | 5000 | 4000 | |
| Spindle motor power | kw | 7.5/11kw | 11/15kw |
|
| Hydraulic Cylinder/Chuck | / | 6° | 8° |
|
| X/Z axis feed parameter | X motor power | rpm | 1.3 | 1.3 |
| Z motor power | kw | 1.8 | 1.8 | |
| X travel | mm | 210 | 200 | |
| Z travel | mm | 400 | 560 | |
| X/Z axis rapid traverse | m/min | 30 | 24 | |
| positioning accuracy | mm | ±0.005 | ±0.005 | |
| repeat positioning accuracy | mm | ±0.003 | ±0.003 |
|
| Slide rail type | / | line rail 30mm | hard rail |
|
|
parameter |
Tool position | pcs | 10T | 10T |
| The quartet cutter holder specification | mm | 20 | 25 |
|
| Circular cutter holder specification | mm | 32 | 32 |
|
| The adjacent tool change time | sec | 0.25 | 0.25 |
|
| Tailstock parameters | Sleeve diameter |
mm | Φ65 | Φ75 |
| Sleeve travel | mm | 80 | 80 | |
| Sleeve taper | / | MT-4 | MT-4 |
|
| Outline dimensions | Length X width | mm | 2000*1600*1660 | 2100*1700*1700 |
| Weight | kg | 3000 | 3200 |
*We reserve the rights on the designing,colors,specification and termination of use of our products.Changes to these factors will not be notified.
Payment Terms:
- 30% Deposit by TT before production and 70% payment by TT before shipment.
- 30% Deposit by TT before production and 70% L/C at sight before shipment
- 100% L/C at sight
