6 CBM vacuum drying set wood lumber dryer kiln china equipment
==Descrption & applicable scope
A: High frequency vacuum drying kiln equipment is a relatively small and fast drying equipment
B:Applicable to thick hardwood or wood drying, solves the hardwood or large section of wood drying after deformation and cracking problems, because of its small volume and short cycle drying characteristics, especially suitable for solid wood furniture factory or wood processing manufacturers Wood drying or back late the water drying.

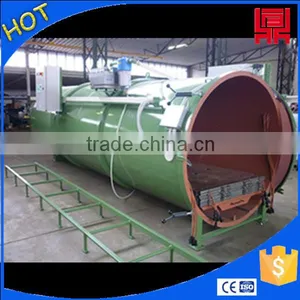

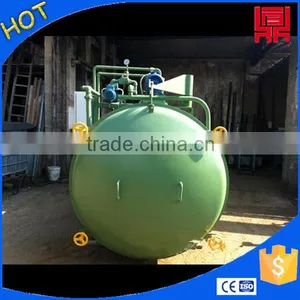

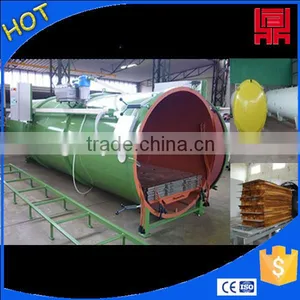

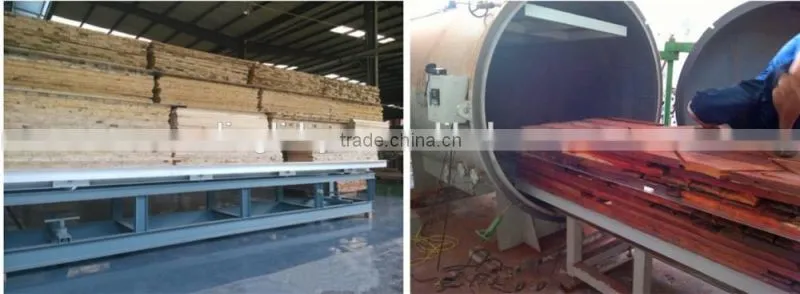

==Show vacuum drying set details

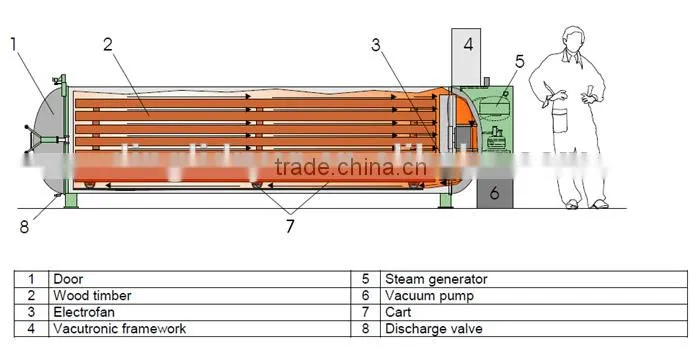

==Working principle diagram
Using high frequency electric field is used as a heating source, even electric field radiation in the wood, and penetrates the wood directly on the water for heating, and the vacuum water absorption to accelerate water discharge.
==characteristics and advantages:
2.1 Vacuum: vacuum state the boiling point of water is low, high frequency drying equipment in water is heated to 60 degrees Celsius began vaporization, reached the purpose of drying under low temperature condition, greatly reduces the wood crack deformation problems, especially suitable for temperature sensitive more valuable timber drying. While a vacuum negative-pressure effect but also to accelerate the drying process.
2.2 Other high frequency vacuum sterilization insecticidal environmental protection and many other features, not one one repeat.
2.3 Fast: heating process without heat conduction, and out of the wood will be heated at the same time;
2.4 Quick dehydration: a heating process, wood formed at high low temperature gradient ( with conventional heating, the 4 opposite ) gradient will accelerate the wood moisture rapidly to the wood surface movement;
2.5 Good quality: the drying process by controlling the heating rate, relative to the vacuum degree, and condensation speed to effectively control the wood moisture content gradient and surface moisture, effectively solve the crack, crack, wood end table bifida and discoloration;
2.6 Strong adaptability: high frequency vacuum drying can realize low temperature drying, but also can realize the high temperature drying, eliminate stress, curing the resin ( broken wood ), can adapt to almost all species of wood drying;
2.7 Low drying cost;
2.8 Without environmental pollution;
2.9 Unmanned automatic drying
Packing & shipment
1.Plastic and foam packing, fixed by wood pallet, it is packed in 40 feet container.
2.by sea transport
Henan dingli drying equipment co.,ltd
1.We are Henan Dingli Drying Equipment Co.,Ltd, locate at No.59,Dongda Street, Guancheng Dist., Zhengzhou, China. we are professional manufacturer in new energy and biomass fuel ewuipment and have been 20 years experience.
2.our main equipment is drying machine, which devided into rotary dryer and HF wood vacuum dryer machine.
3.we are able to design suitable for your machine with your demands! welcome to visit our factory!
The mentioned above just our 6 CBM vacuum drying set wood lumber dryer kiln china equipment, if you want to know more details, welcome to contact me!
