TNC-B20H/B26H Twin Spindle Cnc Lathe With Milling Function
- SHANGHAI
- T/T
You May Like
-
TNC-B20H/B26H Combination Lathe Milling Machine
-
TNC-B20H/B26H Cnc Wheel Lathe Cutting Machine
-
TNC-B20H/B26H Double Spindle Brake Lathe
-
TNC-B20H/B26H Fanuc Universal Cnc Metal Lathe With Sub-spindle
-
TNC-B20H/B26H China High Efficiency Cnc Engine Lathe With CE and ISO
-
TNC-B20H/B26H Mini Portable Multi-purpose Metal Lathe Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Automatic Grade | Automatic | Max. Swing Diameter | 20/26 | |
| Place of Origin | Thailand | Brand Name | HHT | |
| Model Number | TNC-B20H/ B26H | Voltage | 220V | |
| Power(W) | AS CUSTOMERS' REQUESTS | Dimension(L*W*H) | 2000*1320*1700 mm | |
| Weight | 2820kg | Certification | ISO,CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
TNC-B20H/B26H twin spindle cnc lathe with Milling function
1.Turning diameter:15-26mm
2.Processing length:125-210mm
3.CE,ISO
4.SYNTEC /Fanuc
TNC-B20H/B26H twin spindle cnc lathe with Milling function
2.Low Noise and Fine Appearance
3.High Efficiency
4.CE&ISO
5.SYNTEC /Fanuc/
Features:
1. Adopt high precision and hiding type spindle.
2. Free mobile type operation panel, to improve working efficiency.
3. Mainly produce all kinds of small parts and complicated parts, with high speed and diversified processing.
4. Especial for long,thin and complicated process, can be one-time molding.
5. With auto feeding device, can improve efficiency.
6. Processing material: copper, iron, aluminum alloy, stainless steel, Teflon and so on.
| Item | TNC-B20H/B26H |
| Max turning Ddiameter D | Ø20/Ø26 |
| Processing length | 160/210 |
| Spindle speed | 200~10000r/min |
| Min degree of spindle indexing | Stepless/1 degree |
| Max. drilling dia. | Ø8/Ø10 |
| Max. tapping dia | M6/Copper M10 M8/Copper M10 |
| OD tool rest Nos | 5 |
| Axial unspinnable hole cutting tool | 4+2 |
| Lateral living rotary tool | 4 |
| Axial living rotary tool | 2+2 |
| Tool on the back | 4 |
| Sub-spindle speed | 200~8000r/min |
| ID tool rest specifications | 10×10×120 16×16×120 |
| Min Mechanical resolution | 0.001/X1(0.0005) |
| Rotary live tool speed | 50~5000r/min |
| Max dia of the rotary tool | Ø10 |
| Axial tool specifications | Ø2~Ø10 Ø12 |
| Control axis | 5 |
| Cutting speed | 1~6000mm/min |
| Rapid feed rate X1 | 20m/min |
| Y1,Z1,X2,Z2 | 30m/min |
| Rated torque of servo motor X1,Y,Z2 | 2.39N·M |
| Z1,X2 | 2.39N·M/3N·M |
| Max clamping dia of the sub-pindle | Ø20 Ø26 |
| Spindle scenter height | 1030 1050 |
| Main motor power | 3KW/3.7KW 3KW/5.5KW |
| Motor power of the sub-spindle | 3KW |
| Servo motor power | 0.4KW/0.75KW 0.75KW/1.0KW |
| Living tool power | 0.75KW |
| Coolant pump motor power | 0.25KW~0.4KW 0.4KW |
| Lubrication system motor power | 30~40W 40W |
| Total power consumption | 15KVA 20KVA |
| Air pressure flow | 0.6MPa/50L 0.8MPa/60L |
| Cutting oil capacity | 80L 120L |
| Dimension | 2000×1320×1700 2280×1350×1720 |
| Net weight | 2820Kg / 2950Kg |

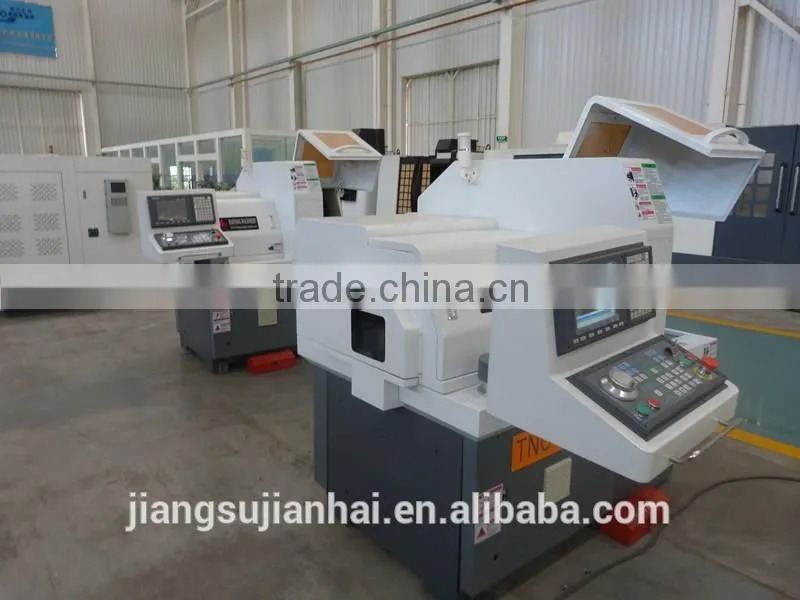

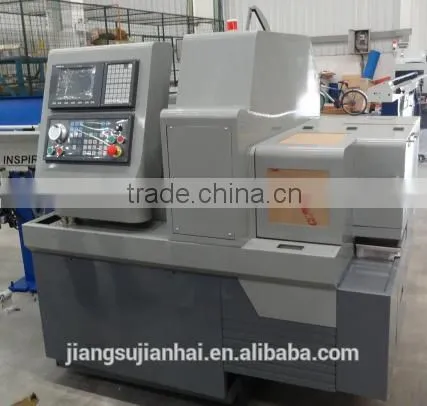

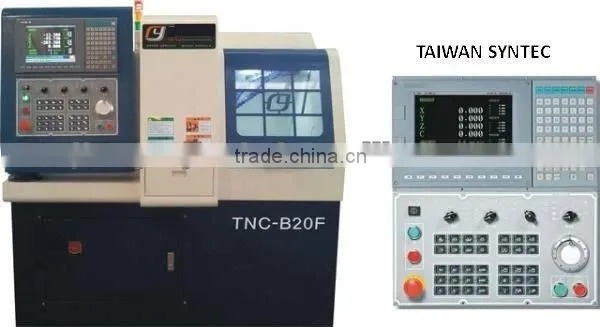

MACHINE PHOTOS:

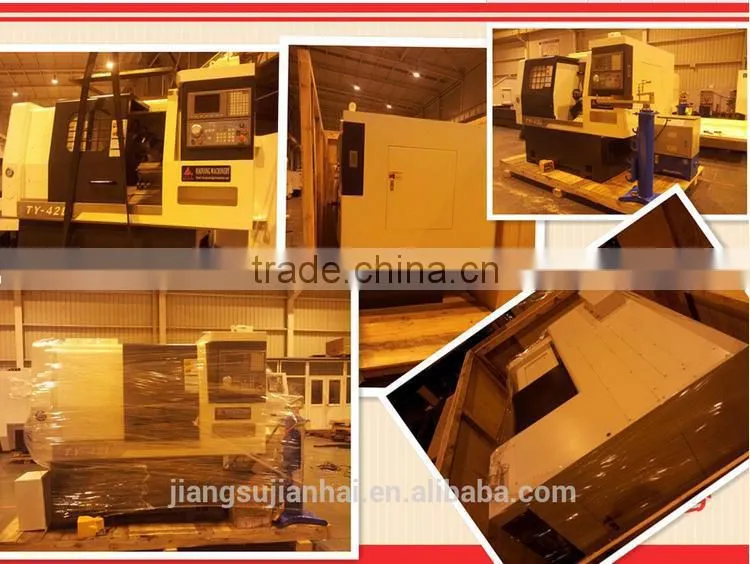

PACKING:
EXHIBITION:
OUR SERVICE:

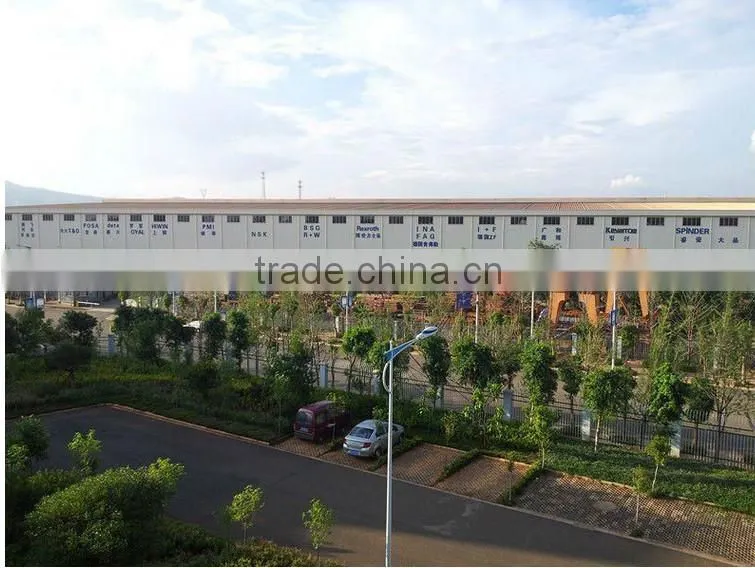

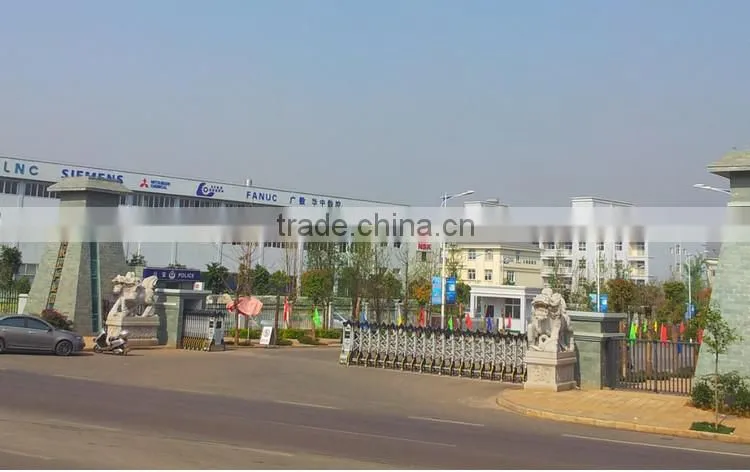

OUR FACTORY:
Company information:
Company Information
HHT Machine is part of a machine tool industry chain; called a 4S alliance.This alliance consists of enterprises focusing on specialized, characteristic and refined machine tools, colleges and research institutes. Those Enterprises include mines, ironworks, casting, machining, functional components supply, equipment and complete machine assembly and sales, after-sales service, research and development and design. HUAIAN HAOYANG MACHINE CO., LTD-HHT MACHINE is the overseas sales link of the alliance,HHT MACHINE mainly includes CNC lathes, CNC machining centers, CNC planer milling machines, CNC planer boring machines and turret milling machines.
In order to make you know more about us, here ntruduce more details to you:
1.After-sales service:
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
2. Delivery Date: it will be confirmed when you make the order.
3. Payment Terms:
3.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
3.2. 30% deposit by TT before production and 70% L/C at sight before shipment;
3.3. 100% L/C at sight.
4. Our advantages:
4.1. We always offer what you want. We never recommend anything that you don’t need.
4.2. We have the best price for the similar machines of the same quality.
4.3. We always offer excellent after-sale-service. We are not the supplier who expect only once business with a customer, we always try to do the best for long-term business relationship.
If you are interesting in our products, please contact me Linda zuo, my telephone no. is +86 13861572987
