Help CenterV65 High Precision Mini CNC Gantry Milling Machine for Sale
Related Products
-
VMC1168 Hard Guideway Metal 3 Axis CNC Milling Machine,machining CenterUS$ 42,000 - 50,000MOQ: 1 Set -
VMC1168 Low Cost 4 Axis CNC Milling Machine,machining Center for SaleUS$ 42,000 - 50,000MOQ: 1 Set
-
VMC1168 Hard Guideway Low Cost 4 Axis CNC Milling Machine,machining CenterUS$ 42,000 - 46,000MOQ: 1 Set
-
VMC1168 Hard Guideway 4 Axis CNC Milling Machine,machining CenterUS$ 42,000 - 50,000MOQ: 1 Set
-
China V65 High Precision Low Price Mini Metal CNC Milling MachineUS$ 40,000 - 80,000MOQ: 1 Set
V65 China Factroy CNC small Vertical Milling Machine for sale
Item Model |
Unit |
V65 |
working tale size |
mm |
450×750 |
X/Y/Z travel |
mm |
600/500/550 |
Distance between spindle end and table |
mm |
120-670 |
Distance between spindle center and column guide way |
mm |
520 |
Maximum weight of working table |
kg |
400 |
table-T-slot |
mm |
3-18-130 |
X/Y/Z axis rapid feed |
M/min |
48 |
three axis working rapid speed |
mm/min |
10000 |
X.Y.Z axis screw mandrel size |
mm |
3216 |
X-axis rail size |
mm |
30 (Roller) |
Y-axis rail size |
mm |
30(Roller) |
Z-axis rail size |
30(Roller) |
|
arm type tools system |
pcs |
24 |
positioning accuracy |
mm |
±0.005/300 |
repeat positioning accuracy |
mm |
±0.003 |
spindle speed |
rpm |
12000 |
spindle taper |
mm |
BT40 |
control system |
/ |
MISTUBISHI /SIEMENS /FANUC |
torque force of spindle motor |
nm/kw |
35/7.5 |
torque force of X.Y.Z motor |
nm |
13.7-47 |
pneumatic source requirement |
Kg/Cm2 |
|
power consumption |
kva |
18 |
machine size |
mm |
2350*2300*2200 |
machine weight |
kg |
4000 |
1. Be packaged by wooden cases, with fumigation treatment.
Machines will firstly be protected against rust by oil and rustproof paste, and will be packaged by waterproof product, then will be put in wooden case.
2. Be Shipped by vessel.
1. Free installation and debugging
2. Free operator training
3. Free maintenance within 1 year
4. Long warranty and technology support

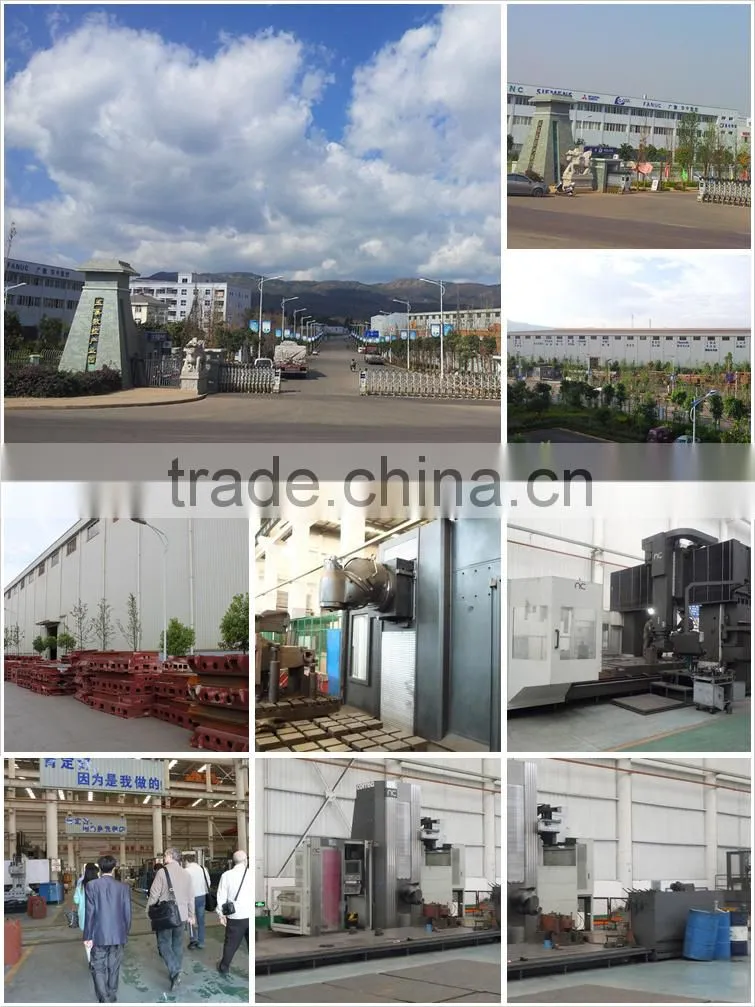

Huaian Haoyang Machinery CO., LTD., located in Jiangsu, one of the most developed province of China. We are an industry and combination enterprise with several years’ development. HAOYANG has gained its position of prominence over the years in the field of CNC Machining Center, CNC Lathe Machine, Boring and Milling Machines for large size components. HAOANG boring and milling machines can be used in the fields like energy, aerospace, shipbuilding, diesel engine, defense, earthmoving and general mechanics.
We have already passed the ISO9001 and CE authentication. The trade part is the agent of CNC machines like boring machine, CNC Milling Machine, CNC lathe, machining centers and so on. They are well known for their strength, construction, durability, low maintenance cost and ease of operation.
We do business with sincerity and honesty, and welcome anyone who wants to establish business relationship with us.
