VMC1168 CHINA Vertical CNC Milling Machine Price
Main features of VMC machines:
The vertical machining center is applicable to process small complex parts like plates, mold
and box types. This machine is good at milling, boring, drilling, tapping and cutting.
Specifications |
X/Y/Z AXIS HARD GUIDEWAYS |
|||
Item Model |
Unit |
VMC-1168 |
||
working tale size |
mm |
650X1300 |
||
X/Y/Z travel |
mm |
1100/600/750 |
||
Distance between spindle end and table |
mm |
110-860 |
||
Distance between spindle center and column guide way |
mm |
690 |
||
Maximum weight of working table |
kg |
1000 |
||
table-T-slot |
mm |
5-18-120 |
||
X/Y/Z axis rapid feed |
m/min |
18 |
||
three axis working rapid speed |
mm/min |
8000 |
||
X.Y.Z axis screw mandrel size |
mm |
4010 |
||
positioning accuracy |
mm |
±0.005/300 |
||
repeat positioning accuracy |
mm |
±0.003 |
||
spindle speed |
rpm |
8000 |
||
spindle taper |
mm |
BT40/150 |
||
control system |
/ |
MISTUBISHI M70VA/ SIEMENS 828D BASIC/ FANUC0I-MD |
||
torque force of spindle motor |
nm/kw |
47.7/11 |
||
torque force of X.Y.Z motor |
nm |
20-50 |
||
pneumatic source requirement |
Kg/Cm2 |
6 |
||
power consumption |
kva |
25 |
||
machine size |
mm |
3200*2500*2680 |
||
machine weight |
kg |
8500 |
||

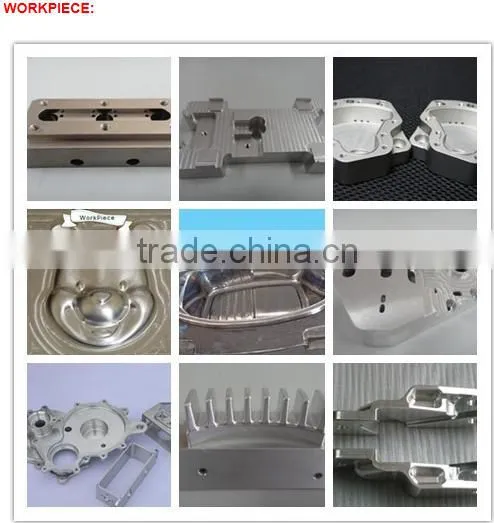

What can our cnc milling machine make/manufacture?
- Aerospace - Thousands of parts are created using CNC milling machines for the airline industry including: airline engine governors, hydraulic manifolds, fuel bodies and transmissions, landing struts, aircraft structures, and more.
- Automotive - Automotive parts are created by CNC milling machines for OEM and aftermarket parts. Some of which include: engine cylinder heads, aluminum drive housings, flywheels, engine blocks, piston rods, wheels, water pumps, and many more.
- Agriculture - The farm equipment industry relies heavily on parts created by CNC milling machines, including transmissions, gearbox cases, transmission housings, cast parts, and differential cases.
- Construction - Tools used in the construction industry have precision parts created by CNC milling machines.
- Energy Sector - Many small and large industries within the energy sector rely on CNC milling machines for parts. Some include: gasoline pump handles, gears for wind power, housings, valves, and much more.
- Medical - The medical field uses CNC milling machines to build customized precision parts such asprosthetic knee and hip replacement joints, mold cavities and cores, specialized tools and equipment for surgery, and more.
- Military and Defense - Many precision parts used by the military are made on CNC milling machines: firearm bodies and slides, pistol locking devices, gun components, optics housings, sights for firearms, and more.
Electronics - CNC milling machines are capable of producing millions of different parts: anywhere from main frames, cell phone parts, television components, light fixtures, car parts, and much more are created by CNC milling machines.
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
a. 30% Deposit by TT before production and 70% payment by TT before shipment;
b. 30% deposit by TT before production and 70% L/C at sight before shipment;
c. 100% L/C at sight.
Mother machine we use for our production,imported from Spain and Italy.
Wooden case & ocean shipping
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
Looking for agents worldwide
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
If you need more detailed information,please feel free to contact me as following:
Yangyang Niu
Skype: yangyang.niu
QQ:921409109
Wechat:nyy921409109
Tel:0086-527-82561192/95
Mobile:0086-15751064318
