Home > Products > dryer > Kiln dry of sand/sludge machine china dryers equipments factory hot selling
Kiln dry of sand/sludge machine china dryers equipments factory hot selling
- 50 Set / Sets per Month
- Qingdao shanghai tianjin
- T/T Credit Card
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | DINGLI | Model Number: | DLGT1210 | Voltage: | 220v/380v/others |
Power(W): | Customized | Dimension(L*W*H): | 5m*15m(Floor space) | Weight: | depend on the detail model |
Certification: | CE,ISO9001 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Kiln dry of sand/sludge machine china dryers equipments factory hot selling
Description of Kiln dry of sand/sludge machine china dryers equipments factory hot selling

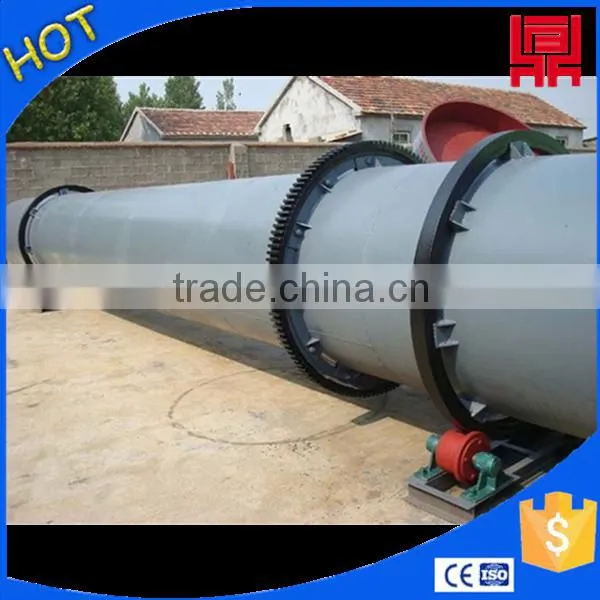

Kiln dry of sand/sludge machine china dryers equipments factory hot selling is shaped as a horizontally inclined rotating cylinder, Three Rotary Drum or Single-cylinder rotary. Wet material is feed at feed port and discharged at the output port. In direct -type rotary dryer (cylinder drier), hot air move through the cylinder in direct contact with the material in the dryer, either downstream or against the direction of its flow. The rotary sand dryer and sludge drying drum for sale is equipped with scatters equipment, make wood chips fully touched with the hot air,so that have a very good drying effect
.
Features of Kiln dry of sand/sludge machine china dryers equipments factory hot selling
1, Strong anti-overload ability, large capacity, low fuel consumption, low drying costs.
2, Adopts downstream drying method, the smoke and wet material enter the dryer from the same side. Make use of high temperature flue gas to get high evaporation intensity. The outlet temperature of dryer is low, high thermal efficiency.
3, Operating parameters can be changed depending on different material properties, which makes the material to form a stable full section materials curtain in the dryer drum, thus the quality and heat exchange can be better;
4, New feeding and nesting devices which can put an end to the phenomena such as blockage, discontinuous, uneven of material feeding of the rotary dryer, as well as the recycles of material, reduces the load of dust removal system.
5, New internal structure which can strengthen the cleaning and heat transfer for scattered material, eliminate the adhesion phenomenon of cylinder wall, and it is more adaptable to materials which are moisture or sticky.
6, The dryer achieves the "zero level thrust", which could greatly reducing the abrasion of block riding wheel, then the cylinder could run smoothly and reliably.
7, Adopts "self-aligning roller-type device", the mating roller can contact with the rolling ring forever linearly, thereby the wear and power loss can be greatly reduced.
8, Control the particle size and moisture of the products according to customers’ requirements. Coal drying moisture can be reduced to under 8%, particle size can be controlled within 8mm.
Working principle of Kiln dry of sand/sludge machine china dryers equipments factory hot selling
The rotary sand dryer and sludge drying drum for sale is consist of heating device, feeding device, transport device, discharge device, dust extraction device and other connecting parts. For the installation process, the rotary drum dryer should slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the rotary drum dryer under gravity. Material to be dried enters the rotary drum dryer, and as the rotary drum dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the rotary drum dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the rotary drum dryer, passing through the hot gas stream as it falls.

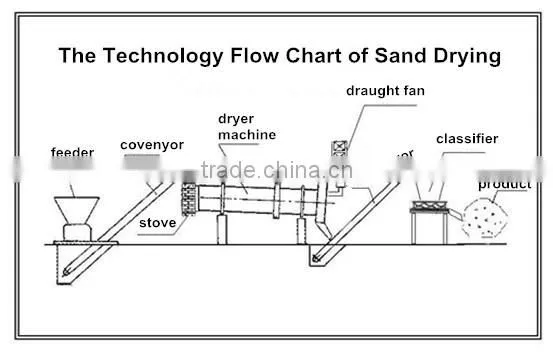

Here is the flow chart of Kiln dry of sand/sludge machine china dryers equipments factory hot selling
Technical parameter of Kiln dry of sand/sludge machine china dryers equipments factory hot selling
Suitable material for Kiln dry of sand/sludge machine china dryers equipments factory hot selling
1. Before packaged& delivered, we will test Kiln dry of sand/sludge machine china dryers equipments factory hot selling seriously and guarantee the machine runs stably with high accuracy.
2. After inspection, our machines are wrapped by plastic film and then carefully packed in export package.
3. Air express, air freight, sea tranportation, can be provided by us.
Henan Dingli Drying Equipment Co.,Ltd,located at No.59,Dongda Street,Guancheng Dist.,Zhengzhou,China.We are the expert and the biggest factory of manufacturing various drying machine equipments as rotary drum dryer,coal dryer,mining drying machine and biomass dryer,applied for coal,wood,biomass,manure,food,grain,decoction,straw and others,equiped with conveyor, crusher or grinder,heater or burner,dust collector or removing,pellet mill and packing machine.
Your demands about rotary sand dryer and sludge drying drum for sale can be fully considered. Welcome to contact us or visit our factory.
1.300000ton/year sawdust pellet production line at Vietnam
duction line site at India
duction line installation site at Indonesia
4.100000 to per year sawdust drying and pelleting production line site at Malaysia
5.pellet machine production site at Chile
6.15000 ton per year sawdust pellet production line at Laos
7.pellet machine production line at Morocco
8.150000 ton/year sawdust pellet production line send to Israel
9.pellet machine installation site at Egypt
10.sawdust pellet production line preassembly site for Russia customer at our company workshop
duction line sit at England
Export to countries abroad
High-tech products not only cover the local market(including Taiwan, Hongkong, Mcao) but also are sold to more than 20 countries like united state, Germany, Britain, Spain.
Kiln dry of sand/sludge machine china dryers equipments factory hot selling Qualification and honour
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in dryer/drying equipment/driers/drying machine.
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install dryer/drying equipment/driers/drying machine for you.
3.warranty:one year for drying waste medicine dregs automatic roller dryer equipment, and long-term supply of parts
Pls contact me to customize Kiln dry of sand/sludge machine china dryers equipments factory hot selling
