China of henan manufacturer drying machine of rotation with best quality
- 110 Set / Sets per Month
- Tianjin qingdao & shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Dingli of Henan | Model Number: | DL-machinary | Voltage: | 220v/380v |
Power(W): | 11kw-110kw | Dimension(L*W*H): | customized | Weight: | with the type of dryers |
Certification: | CE Certificate | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China of henan manufacturer drying machine of rotation with best quality
Profile of China of henan manufacturer drying machine of rotation
Rotary cylinder dryer is widely used in food, feed, chemical industry, pharmaceutical, mining, fertilizer, etc. According to the requirements of drying products, we can use different heat sources, like straight hot stove, indirect hot blast stove, heat conduction oil, electricity, heating, steam, etc. It is suitable for materials less than 85% in moisture content, such as brewer's grains, alcohol lees, pumace, medical slag, sauce dregs, candy pomace, starch residue, animal dung, waste material of slaughtering, etc, to open up the feed resources, reduce feeding costs, reduce environmental pollution has a good effect.

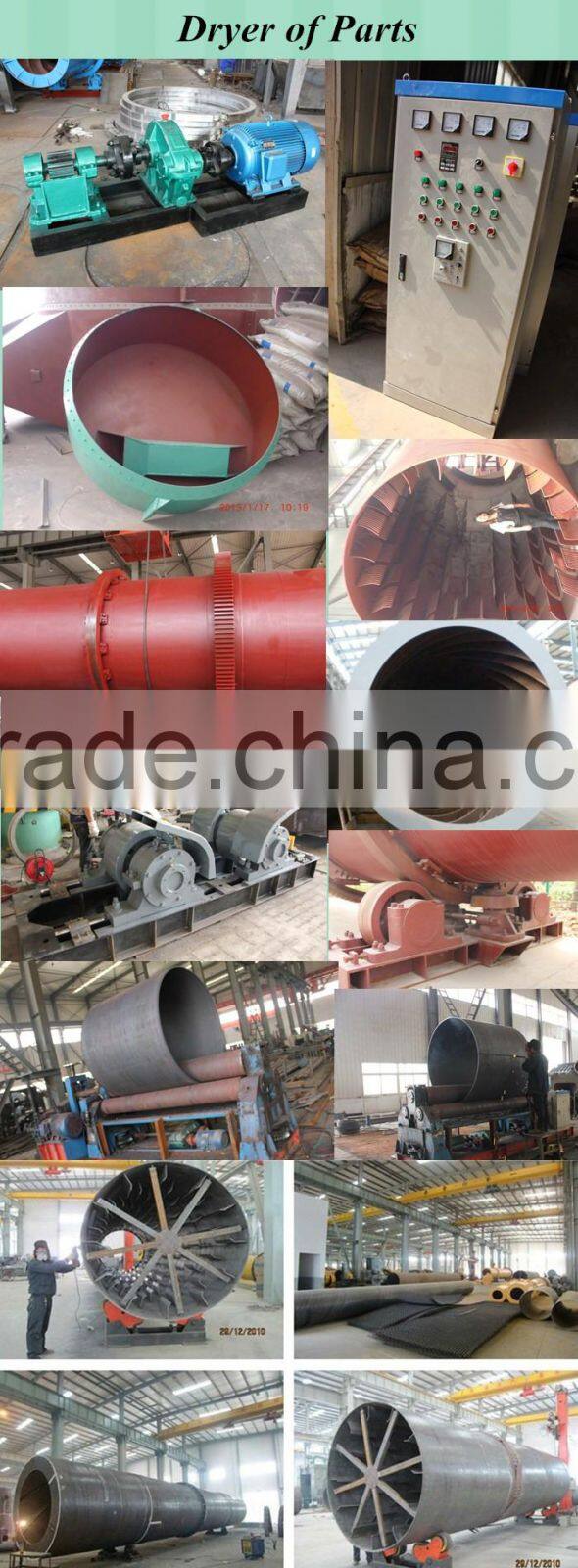

Main structure of rotary drum dryer
Head, tug, catch wheel, drum, Electric motor

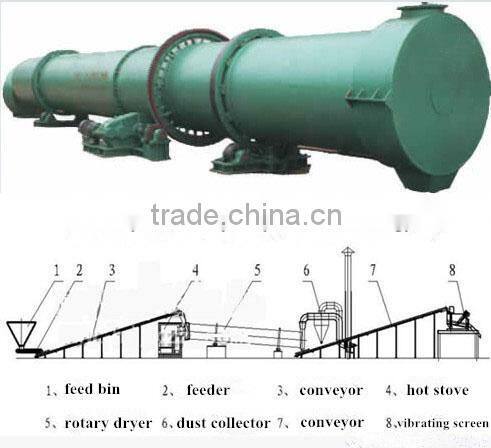

Drying system mainly includes
Hot source, feed, conveying equipment, rotary drum dryer, dust collector
Working principle of China of henan manufacturer drying machine of rotation with best quality
The directly heated rotary cylinder dryer mainly consists of heat supply source, feeding machine, rotary cylinder, discharging machine, induced-draft fan, tripper, and power distribution cabinet. After entering the cylinder, the raw material evenly distributes in the dryer and fully contacts with the hot air when flipped by the lifting plates evenly arranged in the roller, this will quicken the heat transfer and mass transfer. During the drying process, with action of the inclined lifting plate and heat medium, the dried products are discharged from the star-shape discharge valve in another side of the dryer.
Characteristic of China of henan manufacturer drying machine of rotation with best quality
1. Drum drying of high degree of mechanization, a larger production capacity, continuous operation.
2. Excellent structure, simple material passes through the cylinder body resistance, stable running, convenient operation
3. Less failure, low maintenance cost, low power consumption
4. Applicable to a wide range of products, dry good uniformity
Technical parameter of China of henan manufacturer drying machine of rotation with best quality
Specification | DLGT1210 | DLGT1409 | DLGT1412 | DLGT1415 | DLGT1615 | DLGT1918 |
Daily output(t/d) | 44.0-19.5 | 46.5-20.5 | 61.7-25 | 77.2-31.2 | 88.0-39.0 | 125.6-50.9 |
Evaporation capacity(t/h) | 0.565 | 0.595 | 0.792 | 0.99 | 1.130 | 1.61 |
Material moisture content (%) | 35-50% | |||||
moisture content of dried material(%) | 12-15% | |||||
Drying temperature(℃) | 270±30℃ | |||||
Totally power(kw) | 28 | 34 | 34 | 36.5 | 45 | 51 |
Floor space(m2) | 5m×15m | 5m×15m | 5m×18m | 6m×22m | 6m×22m | 7m×25m |
production pictures of Top Sale tumble/rotary drum/single type dryer device of bioenergy
1. Before packaged& delivered, we will test Top Sale tumble/rotary drum/single type dryer device of bioenergy seriously and guarantee the machine runs stably with high accuracy.
2. Air express, air freight, sea tranportation, can be provided by us.
We are henan dingli drying equipment co.,ltd
Zhengzhou dingli has got relevant certifications in China of henan manufacturer drying machine of rotation with best quality
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in dryer/drying equipment/driers/drying machine.
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install dryer/drying equipment/driers/drying machine for you.
3.warranty:one year for drying waste medicine dregs automatic roller dryer equipment, and long-term supply of parts

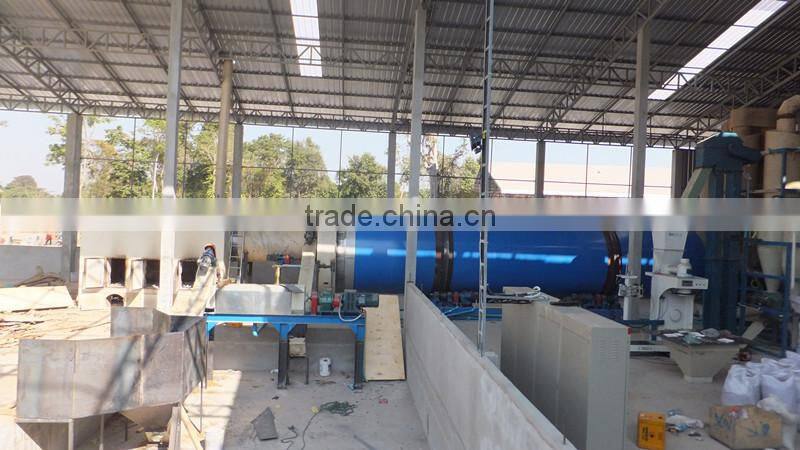

1.300000ton/year sawdust pellet production line at Vietnam
duction line site at India
duction line installation site at Indonesia
4.100000 to per year sawdust drying and pelleting production line site at Malaysia
5.pellet machine production site at Chile
6.15000 ton per year sawdust pellet production line at Laos
7.pellet machine production line at Morocco
8.150000 ton/year sawdust pellet production line send to Israel
9.pellet machine installation site at Egypt
10.sawdust pellet production line preassembly site for Russia customer at our company workshop
duction line sit at England
Export to countries abroad
High-tech products not only cover the local market(including Taiwan, Hongkong, Mcao) but also are sold to more than 20 countries like united state, Germany, Britain, Spain.
China of henan manufacturer drying machine of rotation with best quality customers
if you have any question, please feel free to contact eugenia.
