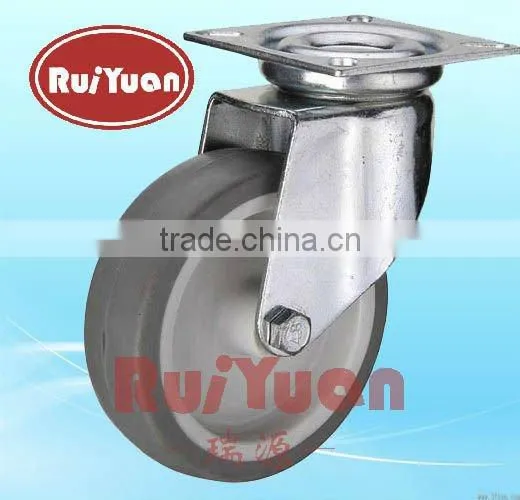

European type thermoplastic rubber swivel caster
Item : 51XXXTPR
Wheel diameter : 50mm,60mm,80mm,100mm
Wheel materials : Thermoplastic rubber
Fittings : Top plate swivel
Wheel bearings : Flange bearing
Load capacity : 38kg,50kg,60kg,70kg
Housing:
Made of pressed steel,zinc plated,
double ballrace swivel head
Wheel:
Materials: Thermoplastic rubber
Hardness: 85±5 Shore A
Bearing type: Plain bearing
Temperature range: -20°C~-80°C
Stainless steel housing is available
Rounya's swivel casters rotate 360 degrees which makes turning the mating equipment possible.
Rounya's rigid casters are typically used in combination with swivel casters since rigids only allow the caster to roll in a straight line.
Rounya's bolt hole fitting casters can be mounted with threaded or friction ring stems.
Rounya's bolt hole fitting brake casters can be mounted with threaded or friction ring stems.
Wheel Materials:
* Nylon caster is the hardest durometer wheel in our line. It has excellent wear, impact resistance, load capacity and can be used in outdoor environments.
* Polyurethane caster is the most versatile caster in our group since it can be used in most hard and soft wheel applications.
* Black Rubber caster is one of the most widely used casters for indoor environments due to it's quieter wheel operation.
* Elastic Rubber is our softest wheel available. This caster is great for lighter loads where quiet operation and floor protection are a must.
* Plastic is our only caster availabe with a low profile housing that minimizes the equipments overall height compared to standard height casters. This caster is great for lighter loads that require excellent wear and abrasion resistance.
Wheels are available in sizes from 2" to 16" and in materials matched to your temperature & chemical operating environment.
Various caster mounting configurations are available for designing, building, repairing, or refurbishing equipment.
We offer a wide variety of top or side locking brake types
- Top Locking
- Side Locking:Plastic/Nylon/Steel Pedal
- Double Lock
- Universal
- Position Swivel Lock/Directional Lock
In addition, you can choose from multiple finishes including:
- Chrome
- Black Ionic
- Yellow Chromate
- Stainless Steel
- Zinc
- Other finishes to match your needs
We can provide various industrial caster bearings:
- Delrin Bearings
- Roller Bearings
- Nylon
- Steel
- Flange Bearings
- Plain Bearings
- Ball Bearings
- Nylon Bearings
- Steel Bearings
For more information, contact The Rounya Caster Company, No.A1-2,1st Industrial Zone,529932 Phone:+86 (0) 13411317724: +86-662-2288280 Fax: +86-662-2288290
