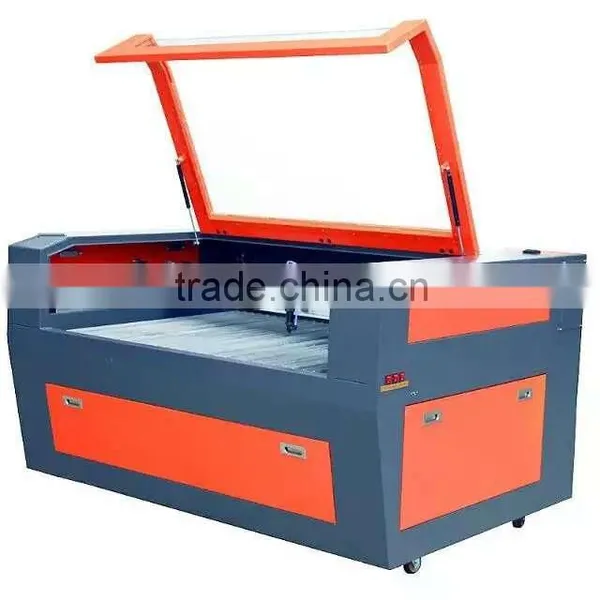

co2 laser engraving cutting machine engraver
| Technical Index | Technical Parameter |
| Model | SCU4030 / SCU6040 / SCU7050 / SCU1060 |
| Working platform size | 400x300 /600x400 / 700x500/ 1000*600mm |
| Power | CO2 40W/60W/80W/100W/130W/150W |
| Controlling system | PCI online / USB offline reading |
| Software | DSP |
| Support format | PLT, BMP, DXF, DST, T100, etc |
| Process Material | Non-metal Materials |
| Engraving speed | ≤1000mm/s |
| Cutting speed | ≤500mm/s |
| Repeated accuracy | ≤±0.025mm |
| Cooling ways | Circulation of Water Cooling |
| Engrave depth | 1.2mm |
| Working humidity | 5-95% |
| Working Power | 220V/50Hz/1kVA |
| Working temperature | 0-35°C |
| Net weight | 40KG/ 150KG/ 200KG/ 399kg |
| Package | Standard Crate for export |
| The whole machine include | Air pump |
| Exhausting Fan | |
| Cooling water box | |
| Dimension | 1030*870*66 / 1520*1200*850 / 1580*1240*970 /1670*1450*1280mm |
1.Equipment Performance
Moduled steel frame structure
Imported liner double lead screw transmission
Servo motor-driven system
Channel-sype material feeding
Red dots indicatio
Circulation of water cooling
Hydraulic protection control system
Dust and smoke exhaust system
Bar-type aluminium lamella worktable
2.Applicable fields
1)Advertising industry,decoration,furniture,model manufacturing,and handicraft industry.
2)The laser engraving machine for sale is widely applied in the fine engraving,cutting and hollowing out on nonmetallic materials like acrylic,organic board,double color plate,plank,bamboo roduct,paper,glass,ect.
3)With all kinds of characters,graphs,images,trademarks and so on.
3. Samples .
