co2 cutting laser machine 1390 CE good price
- 150 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
Product Details
Condition: | Used | Laser Type: | CO2 | Applicable Material: | Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood |
Cutting Thickness: | Materials | Cutting Area: | 1300*900mm | Cutting Speed: | Adjustable |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Lasercut |
Graphic Format Supported: | BMP, DST, DXP | Place of Origin: | Zhejiang, China | Model Number: | 1390 |
Certification: | CE, ISO, Other, CE, ISO, TUV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
co2 cutting laser machine 1390 CE good price
Technical Index | Technical Parameter |
Model | SCU4030 / SCU6040 / SCU7050 / SCU1060 |
Working platform size | 400x300 /600x400 / 700x500/ 1000*600mm |
Power | CO2 40W/60W/80W/100W/130W/150W |
Controlling system | PCI online / USB offline reading |
Software | DSP |
Support format | PLT, BMP, DXF, DST, T100, etc |
Process Material | Non-metal Materials |
Engraving speed | ≤1000mm/s |
Cutting speed | ≤500mm/s |
Repeated accuracy | ≤±0.025mm |
Cooling ways | Circulation of Water Cooling |
Engrave depth | 1.2mm |
Working humidity | 5-95% |
Working Power | 220V/50Hz/1kVA |
Working temperature | 0-35°C |
Net weight | 40KG/ 150KG/ 200KG/ 399kg |
Package | Standard Crate for export |
The whole machine include | Air pump |
Exhausting Fan | |
Cooling water box | |
Dimension | 1030*870*66 / 1520*1200*850 / 1580*1240*970 /1670*1450*1280mm |
1.Equipment Performance
Moduled steel frame structure
Imported liner double lead screw transmission
Servo motor-driven system
Channel-sype material feeding
Red dots indicatio
Circulation of water cooling
Hydraulic protection control system
Dust and smoke exhaust system
Bar-type aluminium lamella worktable
2.Applicable fields
1)Advertising industry,decoration,furniture,model manufacturing,and handicraft industry.
2)The laser engraving machine for sale is widely applied in the fine engraving,cutting and hollowing out on nonmetallic materials like acrylic,organic board,double color plate,plank,bamboo roduct,paper,glass,ect.
3)With all kinds of characters,graphs,images,trademarks and so on.

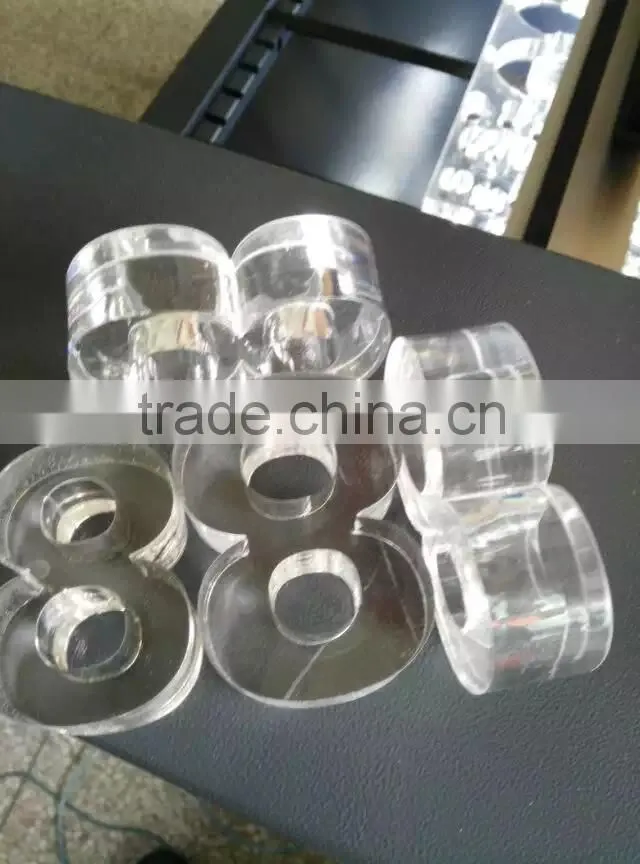

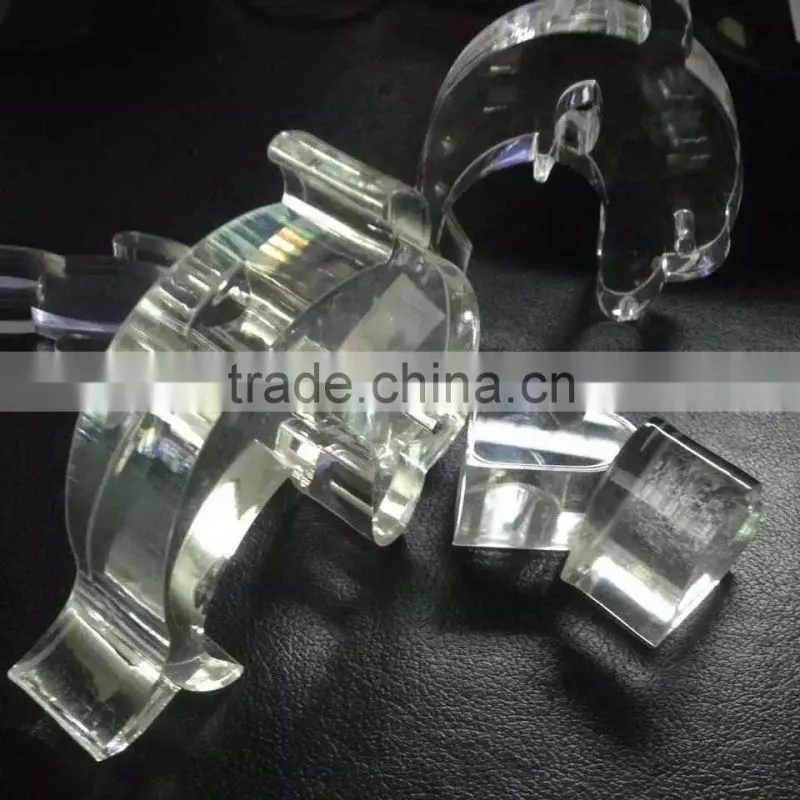

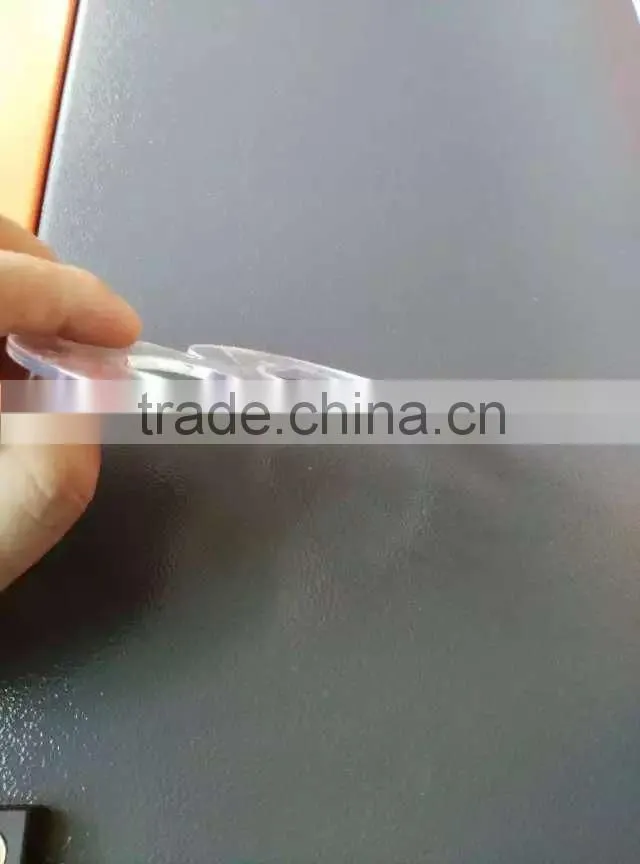

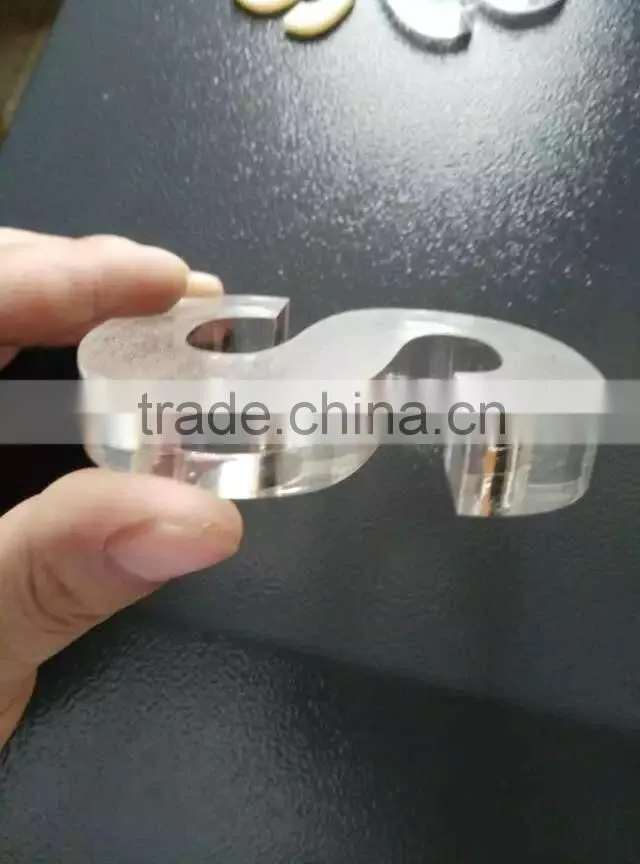

3. Samples .
Packaging :
Pls feel free to contact with us !
Millie wen
MOB : + 86 18667854397 .
Contact Us
- Wenling Fanshang Trade Co., Ltd.
- Contact nameCHARLIER Vincent Steeve
- Phone0086-0576-86816692
- AddressNo. 265, Xingruo Road, Chaoxi Industrial Zone, Ruoheng Town
