Professional manufacture crop stalks dryer machine china promotion
Genaral Description of china dryer machine promotion
The device well used as barley crop stalks dyer, oat straw dyer, wheat straw dyer, rye straw dyer, rice straw dyer, sorghum straw dyer and corn stover, and potato vines dyer, beans stem dyer (including yellow soybean straw, bean straw, hay, pea stalks, straw cowpea, lupine dyer, peanut vines dyer,barley stalks dryer, oat stalks dryer, wheat stalks dryer, rye stalks dryer, straw dryer, sorghum stalks dryer, corn sorghum dryer, potato vine dryer, herb drying machine,beans stalks dryers soybean stalks dryer, pea stalks dryer ,cowpea stalks dryer, lupin stalks dryer, peanut vine stalks dryer,crop stalks dryer,biomass fuel dryer,biomass rotary dryer and other lighten materials dryer. Our company can according to the characteristics of each type biomass materials, the output capacity, application requirements, cost control, operation convenience to start optimize drying technology. Recommended products: three rotary drum dryer patent number: ZL2009 2 0089749.2, this device has large production, energy-efficient, small land occupation, energy saving 30-50% than normal dryer which can be maximized and drying costs.
Basic Working Process of china dryer machine promotion

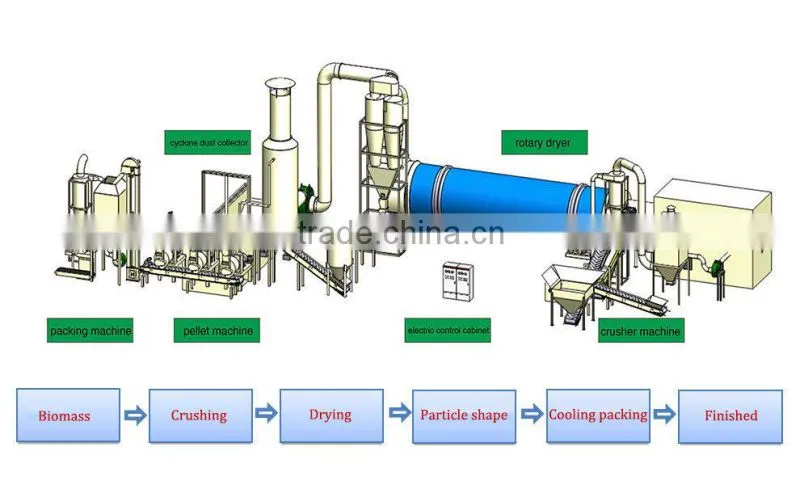

First, the materials transferred into the inner rotary drum by the the feeding machine and achieve downstream drying, in the inner constantly took a copy board, by scattered spiral traveling type to do heat exchange; Then move to the other end into the middle inner do countercurrent drying is repeated bring out and in constantly in the middle by two steps forward and one step back in the traveling mode; then in the middle inner cylinder can fully absorb the heat, and also absorb middle heat of the drum, while extend the drying time, dry materials arein the best state now. At last materials move to the middle of other end and fall into the outer, Within the outer cylinder rectangular loop way moving in the outer drum, the material which reach to the drying effect in the discharge of hot air action fast marching drum, the wet material which has not reach the effect of drying are not due to rapid travels because of the heavy weight. Within the rectangle shovelling plate sufficiently dried, thereby to complete the drying process.
Standard Technical Specifications of Crop Stalks Dryer
China dryer machine promotion structural features
1.Automatic control ensures the drying out of the wood moisture uniformity and stability.
2.Remove stone and iron automaticly, ensures that the wood chips of impurities do not enter the process after the drying of wood.
3.Equipment investment required is 1/6 of imported products cost.
4.The self-cylinder insulation thermal efficiency can reach above 70% (traditional monocular dryer thermal efficiency is only 35%), to improve the thermal efficiency of more than 50%.
5.Use the rear transmission, transmission more stable and reliable; revolutionized wheel rotation often slip phenomenon affecting production.
6.Reduce than monocular dryer covers an area of about 50%, construction investment is about 50% lower power consumption reduced by 60%.
7.A variety of circumferential feed composition distribution, effective regulation of drying time.Drying effect is good..
8.Easily control the final moisture indicators based on user requirements.
9.Adopts frequency motor speed to control material flow, according to user needs easily control the desired final moisture indicators.
10.The outlet temperature is low, dust removal equipment for a long time, continuous production of the next process.
11.Supporting new energy-saving stove, energy efficient, thermal control, simple operation, Coal consumption dropped about 60%
Offical Certifications & Honors about Crop Stalks Dryer
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in pellet making machine/pulverizer/ granulator
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install pellet making machine/pulverizer/ granulator for you.
3.warranty:one year for drying waste medicine dregs automatic roller dryer equipment, and long-term supply of parts
1.300000ton/year sawdust pellet production line at Vietnam
duction line site at India
duction line installation site at Indonesia
4.100000 to per year sawdust drying and pelleting production line site at Malaysia
5.pellet machine production site at Chiole
6.15000 ton per year sawdust pellet prduction line at Laos
7.pellet machine production line at Morocco
8.150000 ton/year sawdust pellet production line send to Israel
9.pellet machine installation site at Egypt
10.sawdust pellet production line preassembly site for Russia customer at our company workshop
duction line sit at England
Export to countries abroad
High-tech products not only cover the local market(including Taiwan, Hongkong, Mcao) but also are sold to more than 20 countries like united state, Germany, Britain, Spain,
About Henan Dingli Crop Stalks dryer
We are Henan Dingli Drying Equipment Co.,Ltd. We manufacturing various dryes mainly for coal drying,lignite drying,sawdust drying, hen dung drying,wood drying,straw drying,sauce drying and many other biomass dryers.The whole equipment system can include, the pellet machine,particles machine and packing machine,dust removing machine,biomass crusher,wood cutting machine and others. The machine can easilly used as fully automated and semi-automatic in intelligent designs.
Your demands about the equipment can be fully considered. Welcome to contact us or visit our factory.
Note: if you want to know more information about china dryer machine promotion , please feel free to contact me.
i will pleased to serve you.
