Downhole Television Imaging System Borehole Camera for Borehole Inspection Camera
Main application of the borehole inspection camera
*Stratum structure divide,
*Well wall stratum crack,
*Karst development discrimination,
*Distinguish fractured development zone,
*Determine the karst distribution position,
*Long time underground borehole monitoring.
Main features of the borehole inspection camera
*Real time video, collect, record,
*Clearly image show on ground instrument,
*Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole,
*Widely used in water well, oil field, coal field, engineering geology, dam, reservoir, oceaneering,
*Stable performance and modern design,
*High resolution LED screen,
*Large storage SD card(max to 32GB),8GB could continue record 32 hours,
*Autofocus,brightness is adjustable.
Specifications of the borehole inspection camera:
No. |
Configuration |
Dimension |
Specification |
1 |
Camera probe |
Diameter: 50/80mm Length: 470mm |
1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to be damaged. 3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water) 4. 6-12 LED lamps are available |
2 |
Camera |
|
1. Sony inducer 1/3’’ CCD 2. HD 850 TVL image definition 3. Waterproof 4. Panoramic lens camera |
3 |
Specialized cable |
Length: 0-2000m (optional) |
1. With steel wire 2. Max bearable tension: 260kg |
4 |
Control unit |
|
1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case |
5 |
Downhold pulley |
|
Logging depth counter equiped |
6 |
Logging winch |
|
Manual & electric winch available |
7 |
HD DVR |
|
SD card |

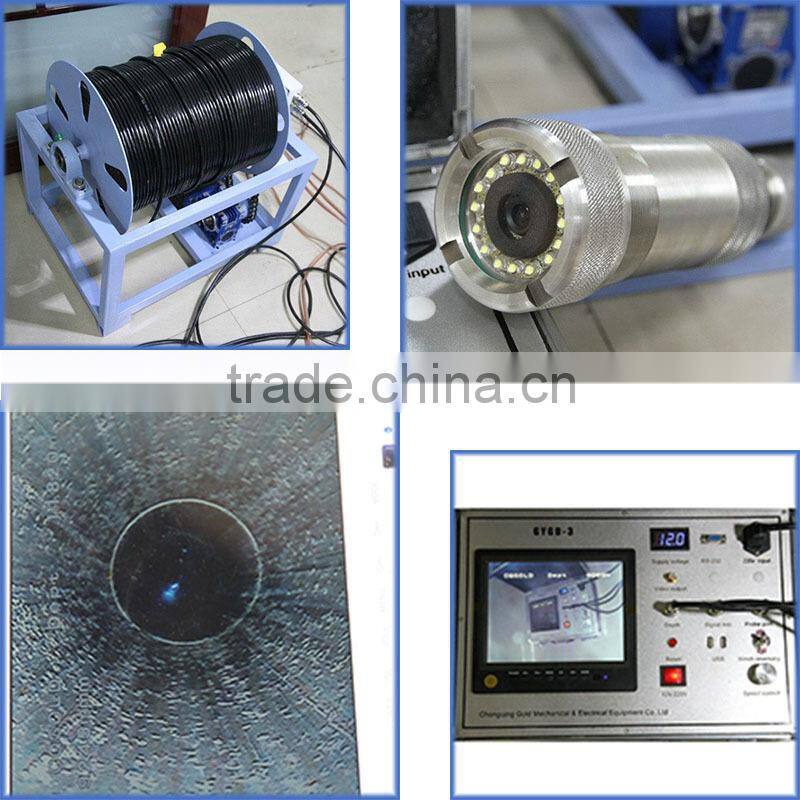

Details of the borehole inspection camera:
Package and Delivery:
*Packaging:
The Instruments are packaged with wooden box,1PC/Carton;
*Delivery:
We will arrange delivery within 15 working days.
