Dual Frequency RTK GPS Base For RTK Surveying System

Dual Frequency RTK GPS Base For RTK Surveying System thumbnail-1
Dual Frequency RTK GPS Base For RTK Surveying System thumbnail-2
Dual Frequency RTK GPS Base For RTK Surveying System thumbnail-3
Dual Frequency RTK GPS Base For RTK Surveying System photo-1
Dual Frequency RTK GPS Base For RTK Surveying System photo-2
Dual Frequency RTK GPS Base For RTK Surveying System photo-3
US$ 5.00 - 5.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Gps Receiver
Use:
Automotive
Screen Size:
Other
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Receiver
Use Automotive
Screen Size Other
Function Bluetooth-enabled
Place of Origin Chongqing, China
Brand Name Hi-target
Model Number V30
Warranty 1 Years

Dual Frequency RTK GPS Base For RTK Surveying System

Dual Frequency RTK GPS Base For RTK Surveying System

Main Application

Dual Frequency RTK GPS Base For RTK Surveying System

1. Construction Layout

2. Electric power transportation

3. CORS application

4. CORS site

5. Control survey

6. Data collection

7. Water Measurement

8. Construction Positioning (water)

Main Feature

Dual Frequency RTK GPS Base For RTK Surveying System

Multi-constellation tracking
1. This RTK GPS has 220 tracking channels.
2. Supports GPS, GLONASS, GALILEO, BDS, SBAS.
3. NGS approved GNSS antenna.
Intelligent operation

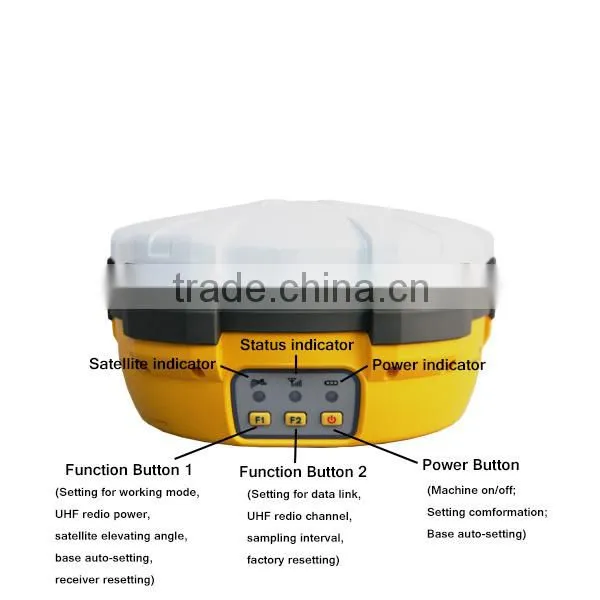

1. Equipped with a smart speaker guiding the whole operation.
2. Multi one-button functions make fieldwork easier, such as auto
base setup by one button, the rover can get fix solution once it
is turned on.

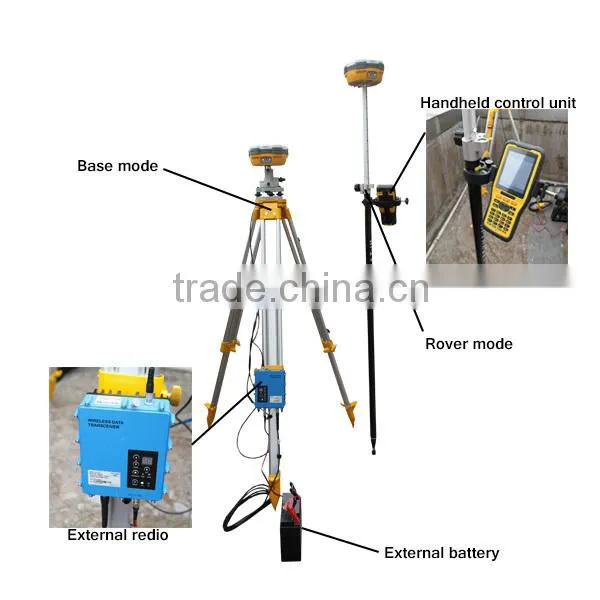

Diversify RTK application

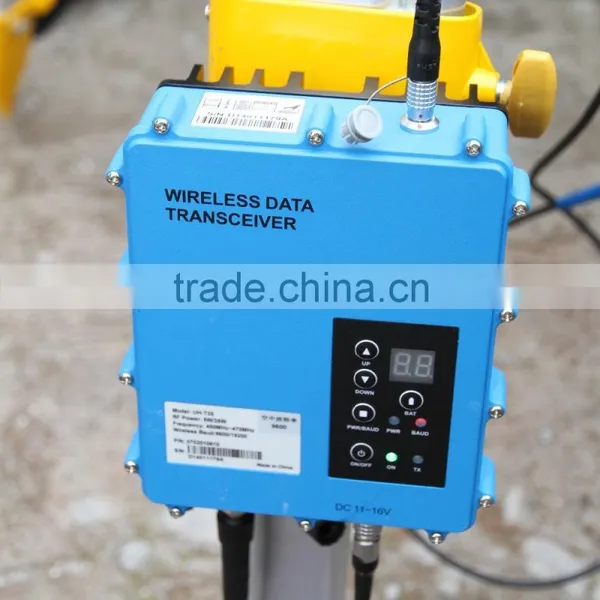

Optional transceiver UHF radio
1. The transceiver UHF radio enables the working mode to be
switchable between base and rover.
2. 2-watt HI-TARGET internal UHF radio and 2-watt Pacific Crest
TrimTalk© internal UHF radio are optional. Pacific Crest TrimTalk©
internal UHF radio is compatible with other radios.
3. Removable internal UHF radio enables users to fix or exchange
simply.
Seamless operation in CORS system
4.Built-in GPRS/GSM/3G module ensures that the V30 works
perfectly with network RTK positioning.
Long-life battery
1. Powered by 5000mAh Li-ion battery.
2. Static working time 13 - 15 hours.
3. RTK Rover (UHF/GPRS/GSM) working time 10 - 12 hours.
4. RTK Base working time 8 - 10 hours.
Rugged and unique design
1. IP67 dust/water protection.
2. Withstands 3-meter natural fall onto concrete.
3. Rapid tracking and perfect avoidance or reduction of obstruction
and multipath effect to ensure superior positioning capability.

Main Specification
Dual Frequency RTK GPS Base For RTK Surveying System

Static receiver

V30

Channel

220

Signal tracking

GPS

L1 C/A, L2E, L2C, L5



Glonass

L1C/A, L1P, L2C/A, L2P



SBAS

L1C/A, L5



BDS

B1,B2

Bluetooth

YES

Positioning accuracy

Static and Fast Static GNSS surveying Horizontal:

±(2.5mm+1ppm RMS); Vertical: ±(5mm+1ppm RMS)



Post processing Kinematic(PPK/Stop & Go)GNSS surveying

Horizontal: ±(1cm+1ppm RMS); Vertical: ±(2.5cm+1ppm RMS)

Initialization time: typical 10 minutes for base while 5 minutes for rover

Initialization reliability:typical>99.9%

Baseline length

Static: 30-40km for low latitude area; up to 100km

Fast Static: <20km; Stop & Go: <20km; PPK: <15km

Data storage

1GB

Data download

COM/USB

Interval

1s-60s adjustable

Elevation

1°-60° adjustable

Data update rate

1-50hz

Communications

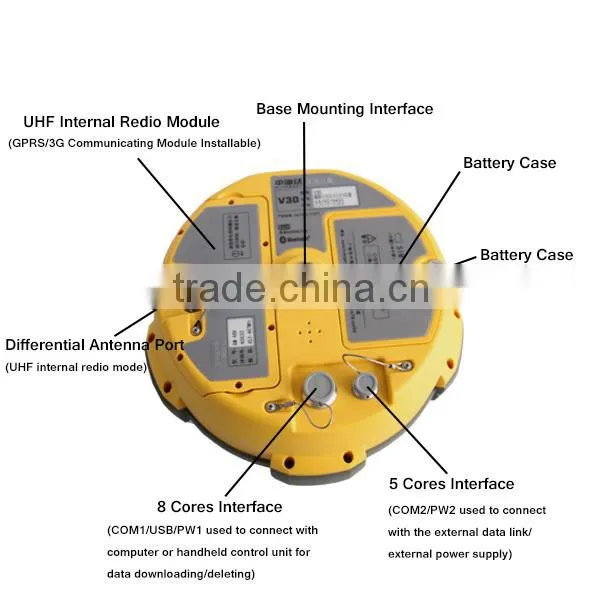

2 RS-232 port; 1 USB port; 1 bluetooth port; 2 external DC power input port

Dimension

19.5cm * h10.4cm

Weight (with battery)

1.3kg (incl.battery)

Water/dust proof

IP67, 3m(9.84ft) natural fall onto concrete

Working temperature

-40℃~+65℃

Storage temperature

-40℃~+75℃

Electrical

2 pcs 7.4v 5000mAh lithium battery, supports 6-28v external DC power supply



Power consumption 3.2W



Working time 13-15 hours

Software

Relevant software provided



Product Presentation

 Dual Frequency RTK GPS Base For RTK Surveying System

Dual Frequency RTK GPS Base For RTK Surveying System

Dual Frequency RTK GPS Base For RTK Surveying System
