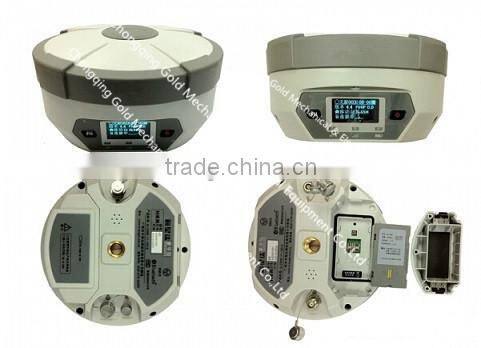

Base or Rover Quality RTK GNSS GPS Land Surveying Instruments

Base or Rover Quality RTK GNSS GPS Land Surveying Instruments



Product Description



MEASUREMENTS
• 120 Channels
• Proven NovAtel GNSS technology
• Multipath mitigating technology
• Auxiliary strobe signals, including a configurable output for time synchronization and mark inputs
GPS: L1, L2, L2C
GLONASS: L1, L2
Galileo: E1
GIOVE-A/GIOVE-B (test)
BDS/Compass
SBAS
QZSS

POSITIONING PERFORMANCE[i]

Static and Fast Static GNSS surveying
Horizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS

Post Processing Kinematic
(PPK / Stop & Go) GNSS surveying
Horizontal: 1cm+1ppm RMS
Vertical: 2.5cm+1ppm RMS
Initialization time: typically 10 minutes for base while 5 minutes for rover
Initialization reliability: typically > 99.9%

Real-time Kinematic (RTK) surveying
Horizontal: 10mm+1ppm RMS
Vertical: 20mm+1ppm RMS
Initialization time: typically < 10 seconds
Initialization reliability: typically > 99.9%

Code Differential GNSS positioning
Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS
SBAS: 0.60m Horizontal

HARDWARE

Physical
Dimensions (w x H): 16.5 cm x 10.5 cm (6.50 in x 4.13 in)
Weight: 1.75kg (3.86lb) with internal battery, internal radio, standard UHF antenna
Operating temperature: -45℃to +65℃ (-49℉ to +149℉)
Storage temperature: -55℃ to +85℃ (-67℉ to +185℉)
Humidity: 100%, considering
Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and Vibration: Designed to survive a 2m (6.56ft) natural fall onto concrete.
Display: 128×64 resolution, 1.54 inch OLED screen

Electrical
Power 6V to 28V DC external power input
Power consumption 2.5W
Automatic Switching between internal power and external power
Rechargeable, removable 7.4V, 4400mAh Lithium-Ion battery in internal battery compartment

Internal battery life
Static 13 - 15 hours
RTK Rover (UHF/GPRS) 10 - 12 hours
RTK Base 8 - 10 hours

I/O interface
1 x Bluetooth
1 x standard USB2.0 port
2 x RS232 serial port
2 x DC power input (8-pin & 5-pin)

COMMUNICATION AND DATA STORAGE

GPRS/GSM
Fully integrated, fully sealed internal GPRS/GSM
Network RTK (via CORS) range 20-50km

HI-TARGET internal UHF radio (standard)
Transmitting Power: 0.1W, 1W, 2W adjustable
Transmitting Speed: Up to 19.2Kbps
Working range: 3~5Km typical, 8~10km optimal

HI-TARGET External UHF radio (standard)
Frequency: 460 MHz with 116 channels
Transmitting Power: 5W, 10W, 20W, 30W adjustable
Transmitting Speed: Up to 19.2Kbps
Working Range: 8~10Km typical, 15~20km optimal

Support other external communication device
For example, external GSM modem.

Data storage
64MB internal memory

Data formats
(1Hz positioning output, up to 50 Hz - depends on installed option)
CMR: CMR+, CMR input and output
RTCM: RTCM 2.1, 2.3, 3.0, 3.1 input and output
RTCA: RTCA
Navigationoutputs: NMEA-0183, NovAtel ASCII and Binary logs




Packaging & Shipping

  Desiccant and Product into a polybag ,together with Instruction Manual and other accessories into a engineering box.



By air or By sea
