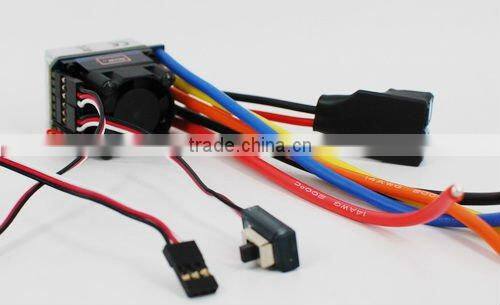

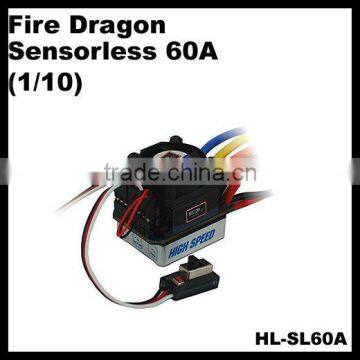

Mystery Fire Dragon 60A Sensorless ESC For 1/10 RC CAR

Specifications

Mystery Fire Dragon 60A Sensorless ESC For 1/10 RC CAR

1.Spec:
1.1 NO:Hl-SL60A

1.2 Suggest Motor: Sensorless motor 3650 6.5T 5200KV, 3650 6.5T 5200KV, 3650 8.5T 4000KV, 3650 10.5T 3300KV
1.3 Program Fucation: Can be used with LED Program Card
1.4 USB Adapter : No

2.The Specification of ESC:
2.1 Output : Cont.Current 60A, Burst Current 380A
2.2 Resistance : 0.0007ohm
2.3 Suitable Car : 1/10 , 1/16 Car
2.4 Suitable Brushless Motor: 2S Lipo ≥5.5T(on-road)
2S Lipo ≥8.5T(off-road)
3S Lipo ≥8.5T(on-road)
3S Lipo ≥13.5T(off-road)
(3650 Brushless Motor)
2.5 Battery Cell : 5-10 Cell Ni-xx(NiMH/NiCd) or 2-3 Cell Lipo
2.6 BEC Output : 6V/2A
2.7 Motor Type : Sensorless Brushless Motor
2.8 Dimension : 27*31*28mm(L*W*H)
2.9 Weight : 74.4g

3. Features:
3.1 Enhanced throttle response, excellent acceleration,strong brakes and throttle linearity
3.2 Using advanced software interface to set up or update the software or using programming card to make adjustments
3.3 Using programming card to program forward or reverse throttle limit
3.4 Using programming card to program braking percent
3.5 Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection
3.6 Compatible with NOVAK, LRP , ORION Sensored brushless motor

Packet content:

1x Fire Dragon SL60A Sensorless ESC

100% brand new
