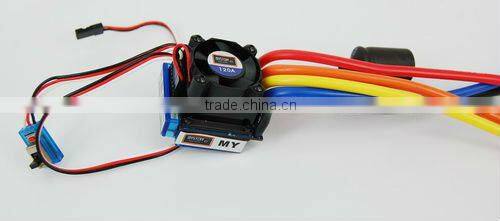

Mystery Fire Dragon 120A Sensored ESC For 1/10 RC CAR

Specifications

Mystery Fire Dragon 120A Sensored ESC For 1/10 RC CAR

1.Spec:
1.1 ESC :HL-SS120A(1/10)

1.2 Suggest Motor: Sensored motor 3650 6.5T 5200KV,Sensored motor 3650 6.5T 5200KV,Sensored motor 3650 5.5T 6000KV,Sensored motor 3650 3.5T 9000KV.
1.3 Program Card: Can be used with LED Program Card
1.4 USB Adapter : Yes

2.The Specification of ESC:
2.1 Output : Cont.Current 120A, Burst Current 760A
2.2 Resistance : 0.0003ohm
2.3 Suitable Car : 1/10 Car
2.4 Suitable Brushless Motor: 2S Lipo ≥3.5T(on-road)
2S Lipo ≥5.5T(off-road)
3S Lipo ≥6.5T(on-road)
3S Lipo ≥8.5T(off-road)
(3650 Brushless Motor)
2.5 Battery Cell : 5-10 Cell Ni-xx(NiMH/NiCd) or 2-3 Cell Lipo
2.6 BEC Output : 6V/3A
2.7 Motor Type : Sensorless and sensored Brushless Motor
2.8 Dimension : 30*43*39mm(L*W*H)
2.9 Weight : 102g

3. Features:
3.1 Enhanced throttle response, excellent acceleration,strong brakes and throttle linearity
3.2 Using advanced software interface to set up or update the software or using programming card to make adjustments
3.3 Using PC or programming card to program forward or reverse throttle limit
3.4 Using PC to program braking percent
3.5 Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection
3.6 Compatible with NOVAK, LRP , ORION Sensored brushless motor

Packet content:

1x Fire Dragon SS120A Sensored ESC(1/10)

100% brand new
