Cheap and Fine Dual-axis Compensation Total Station

Chongqing Huobo Surveying Instruments Co., Ltd.

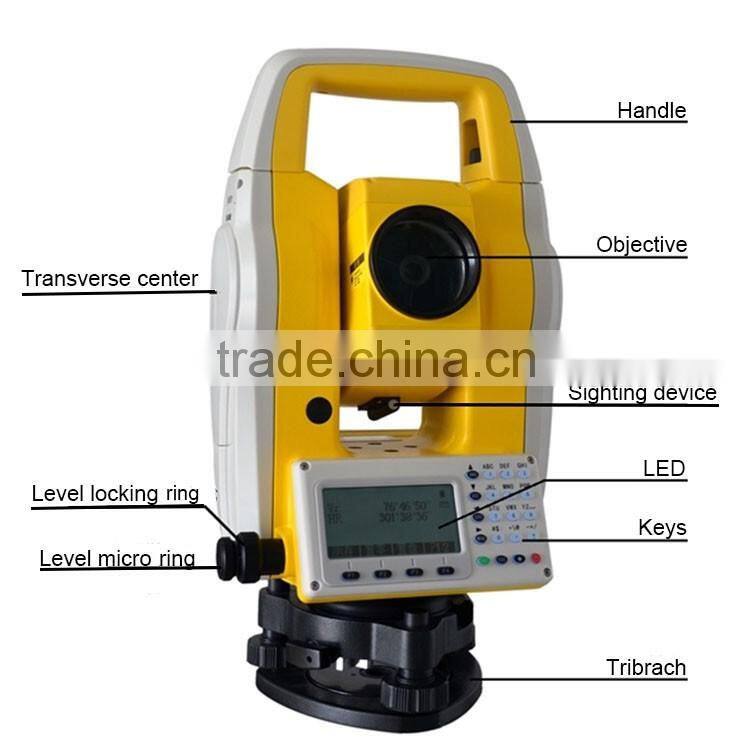

Cheap and Fine Dual-axis Compensation Total Station thumbnail-1
Cheap and Fine Dual-axis Compensation Total Station photo-1
US$ 0.1 - 0.2 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Hi-Target
Model Number:
ZTS-320R total station
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Hi-Target
Model Number ZTS-320R total station

Hi-Target ZTS-320R Hi-Target Total Station in Survey Equipment:

This kind of Hi-Target high precision total station is widely used in surveying and mapping,engineering construction,it's popular in the market for it's high precision,good quality,competitive price...,It can help customers to do most of the work in surveying and mapping.

As for Hi-Target brand Engineering Construction Total Station,it's a yonger products,full of creative and thoughtful sonsideration.It's really a competitive prodcts compete with other brand.

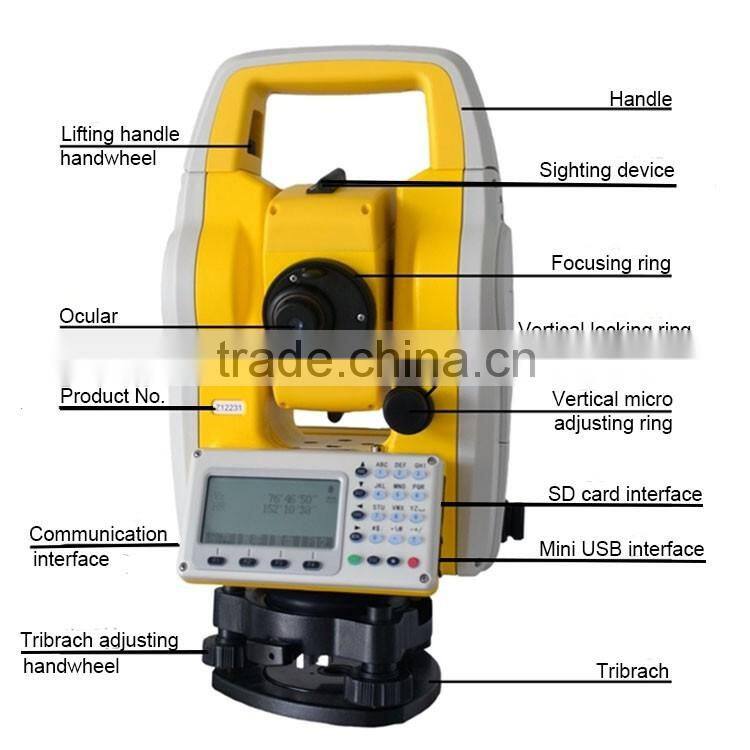

Cheap and Fine Dual-axis Compensation Total StationCheap and Fine Dual-axis Compensation Total Station



Product Description

*Technical Data of Our Hi-Target Total Station:

Angle Measurement

Measurement Method: Absolute Encoding

Minimum Readout: 1″/5″/10″(0.3mgon/1.5mgon/3mgon) adjustable

Accuracy1: 2”



Distance Measurement (ZTS-320 with Reflector)

Single Prism: 3000m (9,842ft.) under good condition3

Three Prisms: 6000m (19,685ft.) under good condition3

Reflective Sheet: 800m (2,624 ft.)

Accuracy: 2 mm+2ppm

Measuring Time (Fine/Quick/Tracking): 1.5s/1s/ 0.5s



Distance Measurement(ZTS-320R Reflectorless)

Reflectorless2 Range: 350m(1,148 ft.)

Single Prism: >7500m(24,606ft.)

Accuracy: 3mm+2ppm

Measuring Time: 1.5s



Telescope

Magnification: 30X

Field of View: 1°30′ (2.7m at 100m)

Minimum Focusing Distance:1.5m

Reticle: Illuminated



Compensator

System: Single-axis liquid tilt sensor/Dual-axis (optional)

Working Range: ±3′

Setting Accuracy: 1″



Communication

Bluetooth

Interface:Standard RS232,SD card4,USB pen drive,mini-B

Internal Data Memory:Approx.20,000 Points

Data Format:ASCII



Operation

Operation system: Real-time Operating System

Display:High resolution backlight black and white display with contrast adjustment/ Graphics: 192 x 96 pixels

Character:6 lines x 25 characters

Keyboard:2 sides Alphanumeric backlit crystal keyboard



Laser Plummet

Type:Laser point, 4 brightness levels adjustment / Optical plummet (optional)

Centering Accuracy:1 mm at 1.5m instrument height



Power Supply

Battery Type:Rechargeable Li-ion battery

Voltage/Capacity:ZBA-400: 7.4V (DC) / 3000mAh

Operating Time With ZBA-400:Optimal 16 hours5 (Continuous angle measurement every 30 seconds)/10 hours (typical)

Measuring Times:Approx. 12000 times



Weight

Weight (Incl. Battery & Tribrach): Approx. 5.5kg (12.1lb.)



Environmental

Operating Temperature: -20℃ ~+50℃( -4℉ to + 122℉)

Storage Temperature: -40℃ ~+70℃(-40℉to + 158℉)

Dust &Water Proof (IEC60529 Standard)/Humidity: IP65, 95%, non-condensing)



*Advantages of Our Hi-Target Total Station:

1.High precision;

2.Competitive quality and price;

3.Strong Technical support;

4.1 year warrenty;

5.Thoughtful after-sales service.

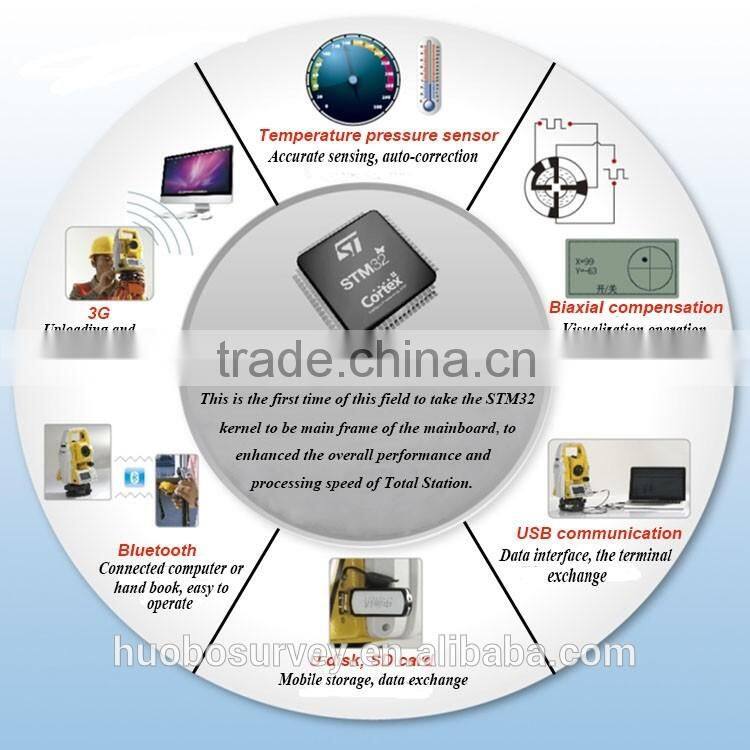

*Main features:

Cheap and Fine Dual-axis Compensation Total Station

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the ZTS-320/R is turned on. The azimuth information won’t be missed even the ZTS-320/R is power-off unexpectedly.



Dual-axis Compensation
The ZTS-320/R is configured with advanced dual-axis compensatorfor auto error elimination and auto accuracy compensation.



High-performance MCU
The STM32 MCU based on ARM Cortex™-M processor enables the ZTS-320/R has extra high processing speed and low-power consumption.



Bluetooth
The Bluetooth wireless technology makes ZTS-320/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the ZTS-320/R.



Data Storage
Diversified data transfer options such as SD card, USB pen drive, mini-B interface.



Backlight
The display and keyboard with backlight for working in the dark.



Diagonal Eyepiece
Support diagonal eyepiece for observations at steep line of sight.



Calibration Software
The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.



Data Transfer Software
The proprietary HI-TARGET data transfer software supports different type of output data format, which can be used in AutoCAD or other brands’ post processing software.



Packaging & Shipping

*Packaging:

The total station is packaged with plastic box inside and carton box outside,1PC/Carton.

*Delivery:

We usually arrange delivery within 15 working days.
