Depth Water borehole CCTV Inspection Camera,Underwater video camera, Inspection Camera with Light
What is Application of inspection camera ?
1.Stratum structure divide
2.Well wall stratum crack
3.Karst development discrimination
4.Distinguish fractured development zone
5.Determine the karst distribution position
6.Long time underground borehole monitoring
What is Feature of inspection camera ?
1.Real time record
2.High resolution camera
3.Waterproof camera
4.Colorful display screen
5.Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,Oceaneering
What is Specification of inspection camera ?
No. |
Configuration |
Dimension |
Specification |
1 |

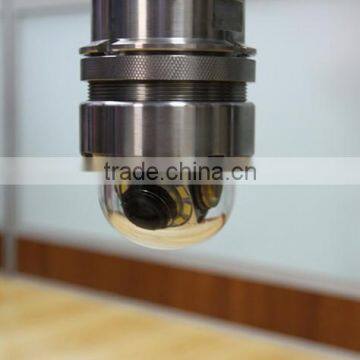

Camera probe |
Diameter: 50/80mm Length: 470mm |
1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to be damaged. 3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water) 4. 6-12 LED lamps are available |
2 |
Camera |
|
1. Sony inducer 1/3’’ CCD 2. HD 850 TVL image definition 3. Waterproof 4. Panoramic lens camera |
3 |
Specialized cable |
Length: 0-2000m (optional) |
1. With steel wire 2. Max bearable tension: 260kg |
4 |
Control unit |
|
1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case |
5 |
Downhold pulley |
|
Logging depth counter equiped |
6 |
Logging winch |
|
Manual & electric winch available |
7 |
HD DVR |
|
SD card |
