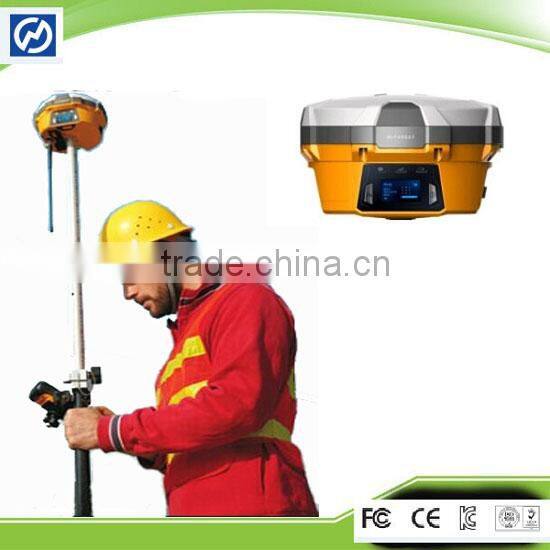

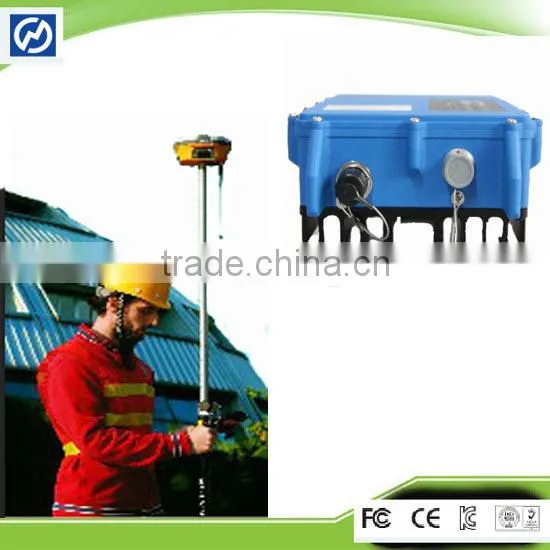

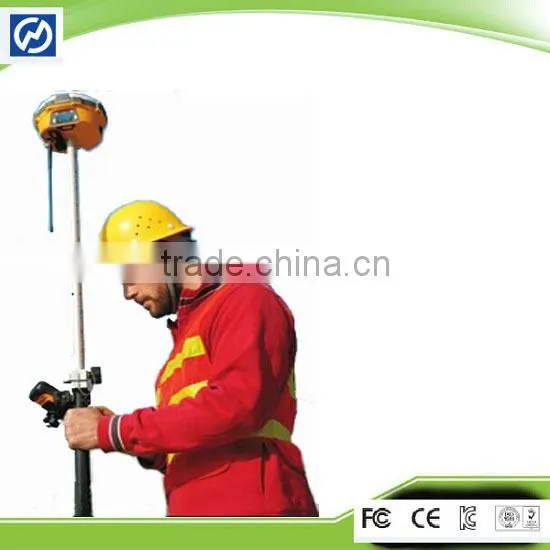

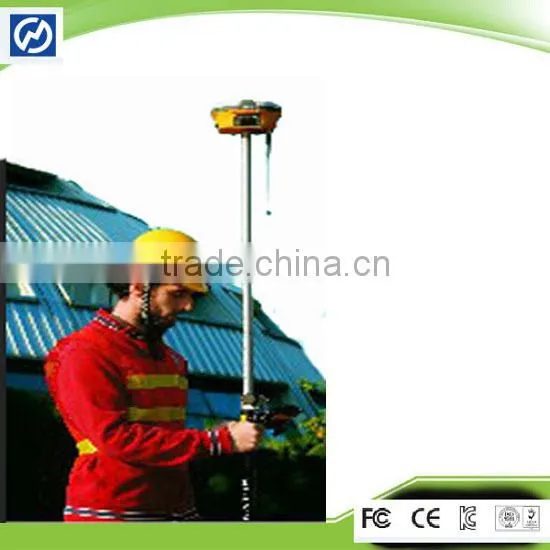

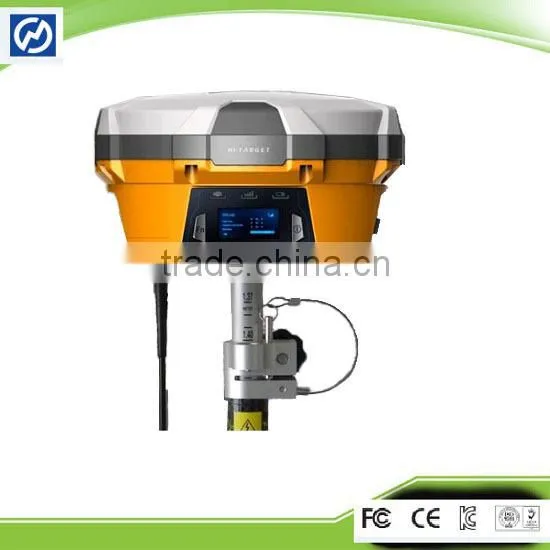

GPS & GLONASS Survey GNSS Receiver V60 RTK System
The V60 is a more compact-design and higher-performance GNSS RTK system, besides its rugged design to resist impact and vibration.
The V60 has industrial OLED display screen on its front control panel to show all information and status of the work. With the smart speaker inside the receiver, the DIY guiding voice can be customized in any language, even dialect! 1GB internal storage plus 8GB Micro SD card memory is standard, the V60 supports up to 32GB extension of memory.
The V60 is fully compatible with other GNSS RTK receivers from the world market. The static data can be saved directly in RINEX format.
Linux Operation System
ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.
RINEX Storage
The static data can be saved directly in RINEX format. The V60 is fully compatible with other brands’ receivers.
Quick Upgrade
Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.
Fully Automated Operation
The V60 is equipped with a smart speaker,which guides the user during operation,The guiding voice can be simply made in any language,even dialect ! All its functionalities are designed to make survey jobs to be done conveniently,such as auto base setup by buttons,the rover can get fix solution once it is turned on,No need to spend time setting the parameters for every single operation.
Multi Constellation Tracking
220 tracking channels.
Supports GPS, GLONASS, GALILEO, BDS, SBAS.
Built-in NGS Approved Antenna.
High Power Transceiver UHF Radio
The transceiver UHF radio enables the working mode switchable between base and rover.
5 watts (Max.) HI-TARGET internal UHF radio and 2 watts (Max.)Pacific Crest micro XDL internal UHF radio are optional
Pacific Crest TrimTalk© internal UHF radio is compatible with other RTK.
Seamlessly Operation in CORS System
With internal 3G modem,the V60 works perfectly with corrections from CORS networks in any version of CMR,RTCM without needing to interpret the message but reading seamlessly.
Long-life Battery
Powered by 5000mAh Li-Ion battery.
Static working time 13 - 15 hours
RTK Rover(UHF/GPRS/3G) working time 10 - 12 hours
RTK Base working time 8 - 10 hours
Rugged Design, IP67
The sepcial latching technology on flexible flat cables ensures trouble-free operation under impact or vibration,
Withstands 3 meters natural fall onto concrete.
| Model | GPS V60 |
| Measurements | |
| 220 tracking channels | |
| Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology | |
| High precision multiple correlator for GNSS pseudo range measurements | |
| Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response | |
| Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth | |
| Signal-to-Noise ratios reported in dB-Hz | |
| Proven Pacific Crest low elevation tracking technology | |
| Satellite signals tracked simultaneously | |
| GPS | Simultaneous L1C/A, L2C, L2E, L5 |
| GLONASS | Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P |
| SBAS | Simultaneous L1 C/A, L5 |
| Galileo | Simultaneous L1 BOC, E5A, E5B, E5AltBOC |
| BDS | B1, B2 |
| QZSS | L1 C/A, L1 SAIF, L2C, L5 |
| POSITIONING PERFORMANCE | |
| Static and Fast Static GNSS surveying | |
| Horizontal | 2.5mm+0.5ppm RMS |
| Vertical | 5mm+0.5ppm RMS |
| Post Processing Kinematic | |
| (PPK / Stop & Go) GNSS surveying | |
| Horizontal | 1cm+1ppm RMS |
| Vertical | 2.5cm+1ppm RMS |
| Initialization time | typically 10 minutes for base while 5 minutes for rover |
| Initialization reliability | typically > 99.9% |
| RealtimeKinematic(RTK) surveying | |
| Horizontal | 8mm+1ppm RMS |
| Vertical | 15mm+1ppm RMS |
| Initialization time | typically < 8 seconds |
| Initialization reliability | typically > 99.9% |
| Code Differential GNSS positioning | |
| Horizontal | 25cm+1ppm RMS |
| Vertical | 50cm+1ppm RMS |
| SBAS | 0.50m Horizontal, 0.85m Vertical |
| HARDWARE | |
| Physical | |
| Dimensions (W x H) | 18.20cm x 9.80cm (7.17 in x 3.86 in) |
| Weight | 1.25kg (2.76lb) without internal battery |
| Operating temperature | below 45℃ to above 65℃ (-49℉ to +149℉) |
| Storage temperature | below 55℃ to above 85℃ (-67℉ to +185℉) |
| Humidity | 100%, considering |
| Water/dustproof | IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft). |
| Shock and Vibration | Designed to survive a 3m(9.84ft) natural fall onto concrete |
| Electrical | |
| Power 6V to 28V DC external power input | |
| Power consumption ≤3.5W | |
| Automatic Switching between internal power and external power | |
| Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment | |
| Internal battery life | |
| Static 13 - 15 hours | |
| RTK Rover (UHF/GPRS/3G) 10 - 12 hours | |
| RTK Base 8 - 10 hours | |
| I/O interface | |
| 1 x Bluetooth | |
| 1 x standard USB2.0 port | |
| 1 x TNC UHF connector | |
| 2 x RS232 serial port | |
| 2 x DC power input (8-pin & 5-pin) | |
| 1 x Micro SD card port | |
| COMMUNICATION AND DATA STORAGE | |
| 3G Communication | |
| Fully integrated, fully sealed internal 3G compatible with GPRS | |
| Network RTK (via CORS) range20-50km | |
| HI-TARGET internal UHF radio (standard) | |
| Frequency | 450~470MHz with 116 channels |
| Transmitting Power | 1W, 2W, 5W adjustable |
| Transmitting Speed | 9.6Kbps, 19.2Kbps |
| Working Range | 5km typical, 8~10km optimal |
| Pacific Crest XDL micro Internal UHF Radio | |
| Frequency | 403~473 MHz |
| Transmitting Power | 0.5W, 2W adjustable |
| Transmitting Speed | Up to 19.2Kbps |
| Working Range | 3~5km typical, 8~10km optimal |
| Support most of radio communication protocol | |
| HI-TARGET External UHF radio (standard) | |
| Frequency | 460 MHz with 116 channels |
| Transmitting Power | 5W, 10W, 20W, 30W adjustable |
| Transmitting Speed | Up to 19.2Kbps |
| Working Range | 8~10Km typical, 15~20km optimal |
| Frequency | 390~430 MHz or 430~470 MHz |
| Transmitting Power | 4W to 35W adjustable |
| Transmitting Speed | Up to 19.2Kbps |
| Working Range | 8~10Km typical, 15~20km optimal |
| Support most of radio communication protocol | |
| Support other external communication device | |
| For example, external GSM modem. | |
| Data storage | |
| 1GB Internal storage+ 8GB Internal Micro SD Card memory (Support up to 32GB extension) | |
| Record GNS and Rinex format simultaneously | |
| Data formats | |
| (1Hz positioning output, up to 50 Hz - depends on installed option) | |
| CMR | sCMRx, CMR, CMR+input and output |
| RTCM | RTCM 2.1, 2.2, 2.3, 3.0, 3.1 input and output |
| Navigation outputs ASCII | NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS |
| Navigation outputs Binary | GSOF |
| 1 Pulse Per Second Output | |
Activities display
Why choose us?1.We have more than 6 years of developed sales chanels in many countries.
2.Our company are highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export.
3.We prominent emphasize the human concern,respect,rust in company management,as we as stimulate staff's sense of responsibility and the sense of mission.
4.Inspected by the Inspection Institution of Bureau Veritas Certification.
5.100% QC inspection Before Shippment.
6.CE/FC listed,competitve price.effective delivery.
Our packing for option
