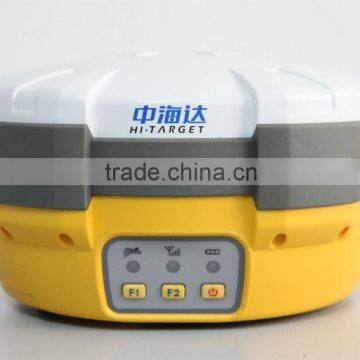

Survey Instruments With High Positioning Accuracy V30 RTK GPS Hi-Target

Name: Survey Instruments With High Positioning Accuracy V30 RTK GPS Hi-Target
Brand: Hi-Target
Availability: InStock

FOB Price

US$ 0.1 - 0.2 / Set

1 Set(Min. Order)

Port Shaghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Hi-Target
Model Number	V30

Product Description

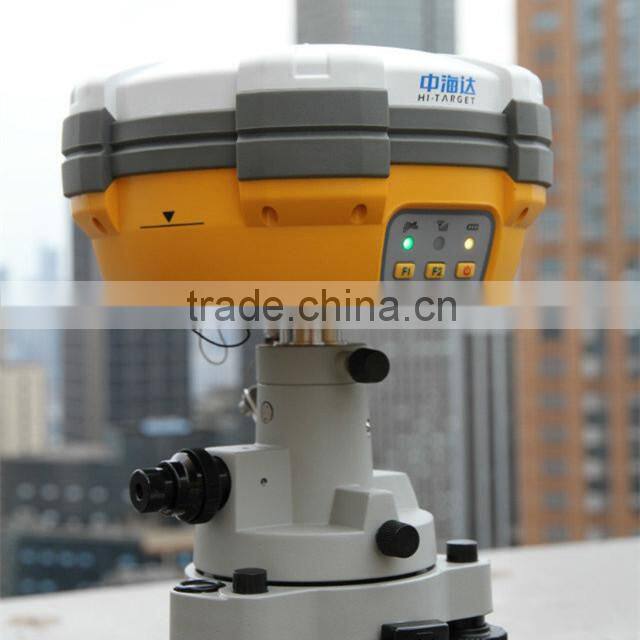

Survey Instruments with high positioning accuracy V30 RTK GPS Hi-Target

Product Description

Ten Unique Innovations

1. Internationally leading PCC BD970 multi-satellite, multi-system kernel

2. Built-in transmitter-receiver, exchangeable base and rover

3. Original 1+X multi-module communication units in the industry

4. Extreme distance plugin radio station optional

5. Strongest waterproof, dustproof, broken-resistant performance in the industry 6. With intelligentialized self-diagnosis function

7. Double battery capacity, with 4400mAh capacity for a single battery

8. Original double GPRS communication function in the industry optional

9. Config multi-function RTK controller iHand 10 Series

10. Original voice navigation RTK controller software in the industry

Standard GPRS wireless data transmission unit

Optional 3G wireless data transmission unit

Optional CDMA wireless data transmission unit

Optional built-in transmitter-receiver, V8 compatible

Optional high-performance built-in transmitter-receiver

Optional built-in transmitter-receiver, imported brand RTK compatible

Optional extreme distance plugin radio station

Optional high-performance plugin radio

Optional original integrated data transmission station

Independence: No external cable or battery is needed, so you can put it where you want.

Compatibility: It can both directly transmit and forward in same-frequency or pilot-frequency

Multi-channel: It has 116 UHF channels, and supports custom channels.

Power: 5W/10W/20W/35W adjustable

Distance:Its max working distance is 50 km, which depends on the setting altitude.

Resistant features: waterproof, dustproof, broken-resistant performance.Intelligentialized self-diagnosis function

Double battery capacity:

with 4400mAh capacity for a single battery, altogether 8800mAh super-large capacity battery

The endurance for a single battery is 120% of a traditional battery, which enables the system:

1. RTK mobile station working 12 hours

2. Static working 15 hours

3. 2W built-in transmitter-receiver working 8 hours

Packaging & Shipping

Technical Parameters
Measurements	220 tracking channels
	Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
	High precision multiple correlator for GNSS pseudo range measurements
	Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
	Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
	Signal-to-Noise ratios reported in dB-Hz
	Proven Pacific Crest low elevation tracking technology
Satellite signals tracked simultaneously	GPS: Simultaneous L1C/A, L2C, L2E, L5
	GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
	SBAS: Simultaneous L1 C/A, L5
	Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC
	BDS: B1, B2
	QZSS: L1 C/A, L1 SAIF, L2C, L5
Positioning Accuracy	Static and Fast Static GNSS surveying		Horizontal: 2.5mm+0.5ppm RMS Vertical: 5mm+0.5ppm RMS
	Stop & Go GNSS surveying		Horizontal: 1cm+1ppm RMS Vertical: 2.5cm+1ppm RMS Initialization time: typically 10 minutes for base while 5 minutes for rover Initialization reliability: typically > 99.9%
	Realtime Kinematic(RTK) surveying		Horizontal: 8mm+1ppm RMS Vertical: 15mm+1ppm RMS Initialization time: typically < 8 seconds Initialization reliability: typically > 99.9%
	Code Differential GNSS positioning			Horizontal: 25cm+1ppm RMS Vertical: 50cm+1ppm RMS SBAS[iv]:0.50mHorizontal,0.85m Vertical
Hardware	Physical	1.Dimensions (W x H): 19.50cm x 10.40cm(7.68 in x 4.09 in) 2.Weight: 1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna 3.Operating temperature: -45℃to +65℃ (-49℉ to +149℉) 4.Storage temperature: -55℃ to +85℃(-67℉ to +185℉) 5.Humidity: 100%, considering 6.Water/dustproof: IP67 dustproof, protected from temporary 7.immersion to depth of 1m (3.28ft). 8.Shock and Vibration: Designed to survive a 3m(9.84ft) natural fall onto concrete. 9. Storage: 64M
	Electrical	1.Power 6V to 28V DC external power input 2.Power consumption 2.5W 3.Automatic Switching between internal power and external power 4.Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment 5.Internal battery life, Static 13 - 15 hours, RTK Rover (UHF/GPRS/3G) 10 - 12 hours and RTK Base 8 - 10 hours

Communication

GPRS/GSM or 3G

Fully integrated, fully sealed internal GPRS/GSM or 3G Network RTK (via CORS) range20-50km

HI-TARGET internal UHF radio (standard)

Frequency: 460 MHz with 116 channels

Transmitting Power: 0.1W, 1W, 2W adjustable

Transmitting Speed: Up to 19.2Kbps

Working Range: 3~5Km typical, 8~10km optimal

PacificCrest XDL micro Internal UHF Radio

(Optional)

Frequency: 403~473 MHz

Transmitting Power: 0.5W, 1.0W, 2.0W adjustable

Transmitting Speed: Up to 19.2Kbps

Support most of radio communication protocol

Working Range: 3~5km typical, 8~10km optimal

HI-TARGET External UHF radio (standard)

Frequency: 460 MHz with 116 channels

Transmitting Power: 5W, 10W, 20W, 30W adjustable

Transmitting Speed: Up to 19.2Kbps

Working Range: 8~10Km typical, 15~20km optimal

Pacific Crest ADL Vantage Pro External UHF radio

(Optional)

Frequency: 390~430 MHz or 430~470 MHz

Transmitting Power: 4W to 35W adjustable

Transmitting Speed: Up to 19.2Kbps

Support most of radio communication protocol

Working Range: 8~10Km typical, 15~20km optimal

Our Services

Application:

1.Construction Lay Out

Abundant point and line lay out function, assistant by graph operation instruction, save your expenditure in practical construction.

2.Electricity and Transportation

Friendly function on power line route direction survey, distance survey and angle calculation; comprehensive survey functionality on road survey, center line, offset survey, profile and cross-section survey.

3.CORS Application

Seamlessly compatible with CORS system, only one RTK rover can receive CORS difference signal and carry out data collection, construction lay out work.

4.CORS Station Establishment

HD-CORS apply profound experience and mutual technology, stable on operation, long distance on data transmission, is yur first choice for city continuous reference stations system.

5.Control Survey

Only one investment you can get list of function, v30 dual frequency static survey accuracy can satisfy any requirements, config with mutual professional data solution software. You can easily accomplish various high precision control survey work.

6.Data conllection

Cotroller operation software designed for GIS application, convenient coding function, meets all your requirements in field data collection work.
