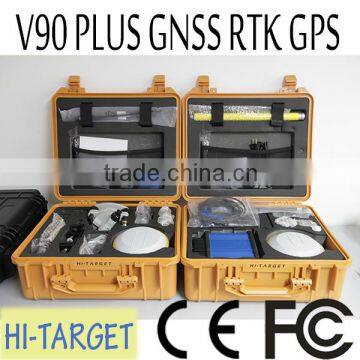

HI-TARGET Dual Frequency RTK GPS

HI-TARGET Dual Frequency RTK GPS thumbnail-1
HI-TARGET Dual Frequency RTK GPS thumbnail-2

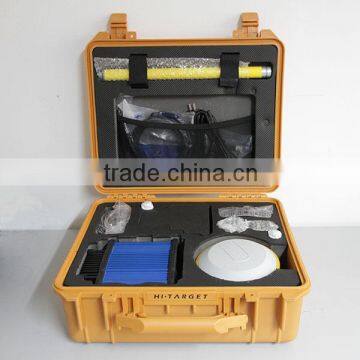

HI-TARGET Dual Frequency RTK GPS photo-1
HI-TARGET Dual Frequency RTK GPS photo-2
US$ 0.1 - 0.2 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HI-TARGET
Model Number:
V90 Plus RTK GPS
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HI-TARGET
Model Number V90 Plus RTK GPS
Product Description

Product Applications of the HI-TARGET Dual Frequency RTK GPS

Construction stakeout
Rich point, line stakeout functions, combined with graphical user guidance to help you save more construction cost

Traffic Power
Convenient power direction finding, ranging, angle calculation function; comprehensive and practical road layout, the pile, pile edge measurement, vertical, cross-sectional measurements

CORS Application
CORS system for applications, just need one rover station can receive CORS RTK differential signal to do data collection, construction layout, etc.

CORS station
HD-CORS combines the advantages of HI-TARGET, such as mature technology, stable running, long distance transmission, etc., it is the solution of choice for a city to build a continuous reference station.

Control Survey
An investment, multiple functions, V30 GNSS RTK dual frequency static measurement accuracy meets the requirements of any control measure, supporting mature professional data solver software that can help you complete a variety of high-precision control measurements

Data collection
GIS-oriented system design hand book operating software, flexible encoding capabilities to meet your fast and efficient needs in data collection in the wild

Above Water Measurement
Work with HI-TARGET marine surveying, mapping software and echo sounder, easy to finish underwater topography measure, completely change the traditional mode of above water measurement and operation

Underwater Construction Positioning
With HI-TARGET marine construction positioning software, V30 GNSS RTK system could help you accurately complete riprap, arrangement, piling and other marine engineering, to meet the special requirements for marine engineering construction projects.

Spercification of the Dual Frequency RTK GPS
Satellite Signals Tracked Simultaneously
220 Channels
GPS……….. Simultaneous L1C/A, L2C, L2E, L5
GLONASS……………..Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
SBAS……………………. Simultaneous L1 C/A, L5
Galileo………………... Simultaneous L1 BOC, E5A, E5B, E5AltBOC
BDS………………..…….……………………………. B1, B2
QZSS…………………….. L1 C/A, L1 SAIF, L2C, L5

Positioning Performance
Static and Fast Static GNSS Surveying
Horizontal……………………2.5mm+0.5ppm RMS
Vertical…………………………. 5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying
Horizontal……………………….. 1cm+1ppm RMS
Vertical………………………… 2.5cm+1ppm RMS
Initialization time……….Typically 10 minutes for base while 5 minutes for rover
Initialization reliability……Typically > 99.9%

Real Time Kinematic (RTK) Surveying
Single Baseline
Horizontal……………………….. 8mm+1ppm RMS
Vertical…………………………. 15mm+1ppm RMS

Network RTK
Horizontal……………………….. 8mm+0.5ppm RMS
Vertical………………………….. 15mm+0.5ppm RMS
Initialization time……..…Typically < 8seconds
Initialization reliability…….Typically > 99.9%

Code Differential GNSS Positioning
Horizontal………………………. 25cm+1ppm RMS
Vertical…………………………… 50cm+1ppm RMS
SBAS ……… 0.50m Horizontal, 0.85m Vertical

Hardware
Physical
Dimensions (W x H)…….153mm x 83mm (6.02inch x 3.27inch)
Weight………950g (2.09lb) without internal battery
Operating temperature………. -40℃to +65℃ (-40℉ to +149℉)
Storage temperature…………. -40℃ to +75℃(-40℉ to +167℉)
Humidity………………………. 100%, considering
Water/dustproof……………….. IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
Shock and vibration……………Designed to survive a 3m(9.84ft) natural fall onto concrete.

Electrical
Power 6V to 28V DC external power input
Power consumption ≤3.5W
Automatic switching between internal power and external power
Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment

Internal Battery Life
Static 12hours
RTK rover (UHF/GPRS/3G) 8-10 hours
RTK base 8 hours

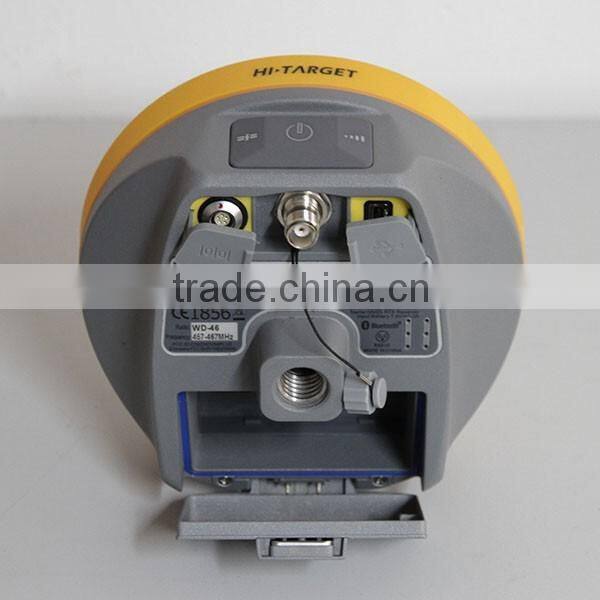

I/O Interface
1 xBluetooth, NFC
1 x standard USB2.0 port
1 x TNC antenna connector
1 x RS232 serial port
1 x DC power input (5-pin)

Communication
Network Communication
Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
Wifi frequency is 2.4G, supports 802.11b/g/n protocol
Network RTK (via CORS) range20-50km

HI-TARGET Internal UHF Radio(Standard)
Frequency… 450~470MHz with 116 channels
Transmitting power…0.5W, 1W, 2W adjustable
Transmitting speed……….9.6Kbps, 19.2Kbps
Working range………….3~5km typical, 8~10kmoptimal

Pacific Crest XDL Micro Internal UHF Radio
Frequency…………………………….403~473MHz
Transmitting power……………… 0.5W, 2W adjustable
Transmitting speed…………….. Up to 19.2Kbps
Support most of radio communication protocol
Working range……………………… 3~5km typical, 8~10km optimal

HI-TARGET External UHF Radio (Standard)
Frequency………… 460MHz with 116 channels
Transmitting power……. 5W, 10W, 20W, 30W adjustable
Transmitting speed…………… Up to 19.2Kbps
Working range…………………. 8~10km typical, 15~20km optimal

Pacific Crest ADL Vantage Pro External UHF Radio
Frequency…. 390~430MHz or 430~470MHz
Transmitting power….. 4W to 35W adjustable
Transmitting speed…………….. Up to 19.2Kbps
Support most of radio communication protocol
Working range…. 8~10km typical, 15~20km optimal

Main Features of the Dual Frequency RTK GPS

1) Small and lightweight

• Only weighs 950g.
• Measures Diameter 153mm x Height 83mm.

2) Multi-constellation Tracking
• 220 tracking channels
• Supports GPS, GLONASS, GALILEO, BDS, SBAS
• NGS approved full-band GNSS antenna

3) Smart Application
• Offers tilt survey with a maximum tilt angle of 30 degrees.
• Supports electronic bubble calibration
• The internal NFC module makes Bluetooth communication quick and easy.
• Intelligent voice assistance guides field operations. Voice can be DIY.
• Standard Rinex data and HI-TARGET raw data recorded simultaneously.

4)Optional Transceiver UHF Radio
• The transceiver UHF radio enables switchable working modes between base and rover.
• Three types of internal UHF radio provide different frequencies based on users requirements. The Pacific Crest TrimTalk© internal UHF radio is compatible with other radios.

5) Multi-network Connection
• Supports GPRS, GSM and WCDMA
• Supports WIFI

6) Powerful Battery
• Powered by high-capacity (5000mAh) Li-ion battery to ensure full day operation

7) Rugged Design
• IP67 dustproof and waterproof
• Able to survive a 3-meter natural fall onto concrete

Packing & Delivery
Packaging
Size
52 (L) * 28 (W) * 47 (D)*2 pcs
Weight
12Kg



Packaging Details
The normal package is carton box(Size: L*W*H).
