Type Gps Receiver
Use Hand Held
Screen Size Other, 3.7inch
Function Bluetooth-enabled, Mp3/Mp4, Photo Viewer, Radio Tuner, Touch Screen
Place of Origin Chongqing, China
Brand Name HI-TARGET GPS receiver
Model Number Qmini MP handheld gps receiver
Warranty 12 Months

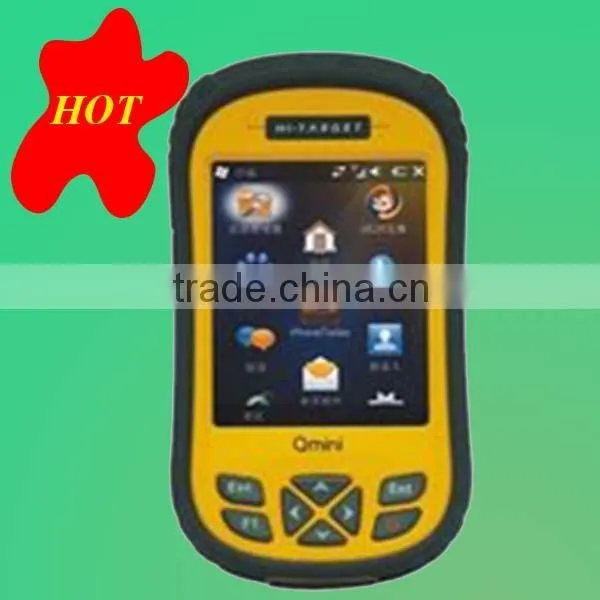

5m accuracy single point positioning handheld GPS receiver

With Windows Mobile 6.5 you may upload necessary utilities or software on your Qmini MP,to suit your next job.You can collect GIS/GPS points and maps via the GIS application of your choice,either a third-party software such as ESRI,ArcPad or the proprietary HI-TARGET application.



*Specification of the handheld GPS receiver:

System Configuration

Operating system…………………..……. Windows Mobile 6.5

Processor………………………………………………………….. 806MHz

RAM………………………………………………………..….. 256MB RAM

Flash memory………………………………………………………… 8 GB

Display……………..……… 3.7 inch LED, 640×480 resolution



GPS Features

GPS………………………………………………………………..……….. L1

BDS………………………………………………………………………….. B1

Built-in high sensitivity anti-interference GPS antenna

Update rate……………………….…. 1fix/s (User configurable)

Update rate................................... 1Hz (Configurable w/future FW 2Hz max)

Time to first fix (TTFF)…………………. 35 seconds (Typical)



Position Accuracy

Single point positioning……………………………………..……… 5m



Application Functions

5 million pixel camera with LED

Built-in speaker



Communication Interface

BLUETOOTH 2.1+EDR

Mini USB

WIFI: 802.11b/g

Micro SD card slot, supports up to 32GB

Built-in 3G module



Power Supply

3.7V, 3100mAh lithium battery, up to 8 hours continuous work, online charging



Physical Properties

10 keys, with the four arrow keys

Size……………………..………………. 152mm x 82mm x 32mm

Weight……………………………………………. 315g (with battery)

Operating temperature…………………………..-20℃ to +70℃

Storage temperature……………………………….-30℃ to +80℃

Water/dustproof………….………………………..………………. IP67

Anti-shock………………………………………………….1.5m free fall



*Main features of the new condition land survey GPS receiver:

1.Rugged design;

2.Microsoft Windows Mobile 6.5;

3.806MHz high-speed CPU;

4.Embedded high sensitivity GPS+GLONASS receiver;

5.3.7 inch QVGA TFT,sunlight-readable color touch screen;

6.5 Megapixel auto-focus camera with LED;

7.Field swappable long life Li-Ion battery.



*Package:

Packaging & Shipping

*Packaging:

The GIS handheld instrument is packaged with carton box outside,1PC/Carton;

*Delivery:

We will arrange delivery within 10 working days.
