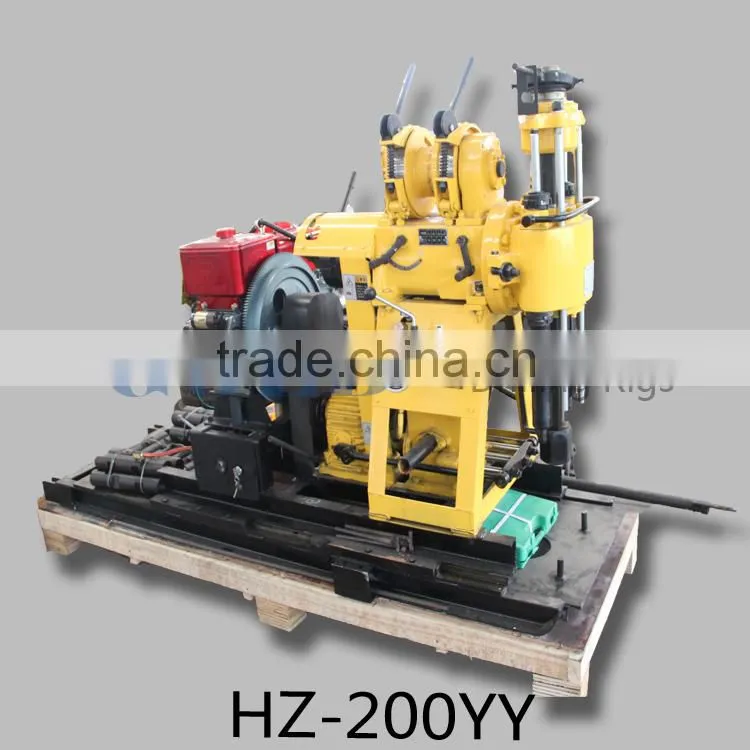

Hydraulic core drilling rig HZ-200YY directional drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drillling and driect grouting,civil wells and earth temperature entral air-conditioner,etc.
1.53*59 drilling rod adopted,high rigidity and strong delivery torque.
the machine is equipped with national patent technology---taper clutch,with charactristics of strong transmission troque,easy operation and free maintenance.
2.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
3.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
4.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
| Drilling depth | 200m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 975kg |
| Triangle conveyer belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22HP Electric motor 15kw |
| Spindle | |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wirerope caliber | 13mm |
| Wirerope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug folldgate belt width | 70mm |
| Mud pump | |
| Type | Horizontal single-urn twin-action |
| Displacement | Diesel engine 170L/min Electric motor 150L/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Inlet pipe caliber | 40mm |
| Outlet pipe caliber | 30mm |
| Triangle conveyer belt | B1728mm |
| Hydralic oil pump | |
| Type | CBT-F-314 |
| Triangle conveyer belt | B1100 X 1 |
