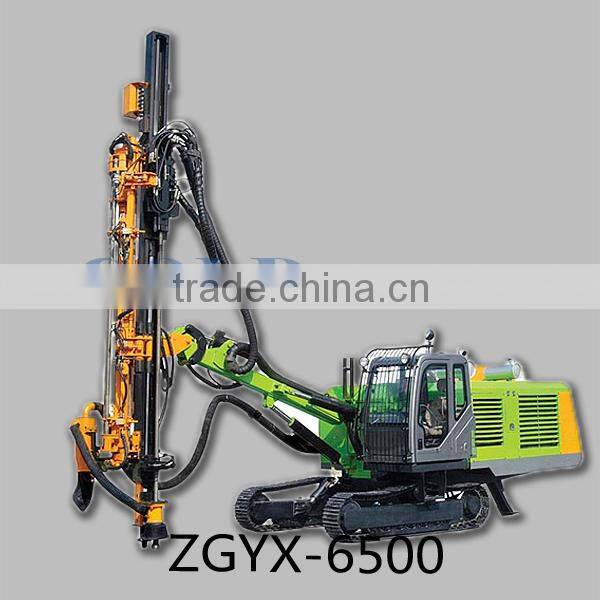

ZGYX-6500 Down-the-hole Hammer Drilling Rig for Blasting Hole
US$ 19,000 - 19,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, dth hammer
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Down-the-hole Drill Rig ZGYX-5500 Shallow Hole Surface DrillingUS$ 13,000 - 13,000MOQ: 1 Set -
ZGYX-4500 Hydraulic Down the Hole Drill Hammer Drill Rig With Air CompressorUS$ 15,000 - 15,000MOQ: 1 Set
-
ZGYX-3500 Hydraulic Down-the-hole Hammer Drilling Rig Blasting HoleUS$ 15,000 - 15,000MOQ: 1 Set
-
Hydraulic Down-the-hole Drill Rig ZGYX-430 Shallow GroundUS$ 13,000 - 13,000MOQ: 1 Set
-
The ZGYX-420A/B/D Crawler Mounted DTH Shallow Hole Surface Drilling RigUS$ 15,000 - 15,000MOQ: 1 Set
Condition
New
Type
Other, dth hammer
Power Type
Diesel
Place of Origin
China
Brand Name
Gold
Model Number
ZGYX-6500
Usage
Other, construction
Dimension(L*W*H)
12000*2350*2800mm
Weight
13500 kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Features
ZGYX-6500 Hydraulic Crawler Rock Drill own stage,Can be used for: quarries, open mines, large-scale supplementary drilling rigs, ramps, open up the preparatory phase of the slope drilling, civil construction works.ZGYX-6500 Rock Drill drilling aperture of 76-152 mm (2-5 inches) diameter drill rods used in 11 / 2 inches, 14 / 5 inch and 2 inches.When using the steel drill pipe, diameter up to 6 inches, stage height up to 25 meters. Rock Drill ZGYX-6500 diesel engine-driven, crawler frame stable, rough roads, drill all the working procedures of car driving chamber.
Specification
Working Wind Pressure (Mpa) |
0.8 - 1.2 |
Air Consumption(m3/min) |
8 - 12 |
Bore Dia.(mm) |
89 - 150 |
DTH-Hammer(mm) |
DZYG51GHydraulic Rock Drill |
Bore Depth.(m) |
25 |
Pushing Length(mm) |
3660 |
Length of Drilling Pole (mm) |
3660 |
Drilling Pole Diameter(mm) |
T51 |
Max. Lifting Force(N) |
20000 |
Pitch Angle of Boom(°) |
Up 50 Down 15 |
Flexing Angle of Boom(°) |
Left 20 Right 35 |
Climbing Ability (°) |
25 |
Traveling speed(km/h) |
1.5 - 3 |
Rotating Speed(rpm) |
0 - 200 |
Swing Torque(N.m) |
1400 |
Total Weight(kg ) |
13500 |
Dimensions(mm) |
12000×2350×2800 |
Method Dust Abatement |
Dry-type Dust Collector |
Matched Power |
37KW+ Yuchai 4108 |
