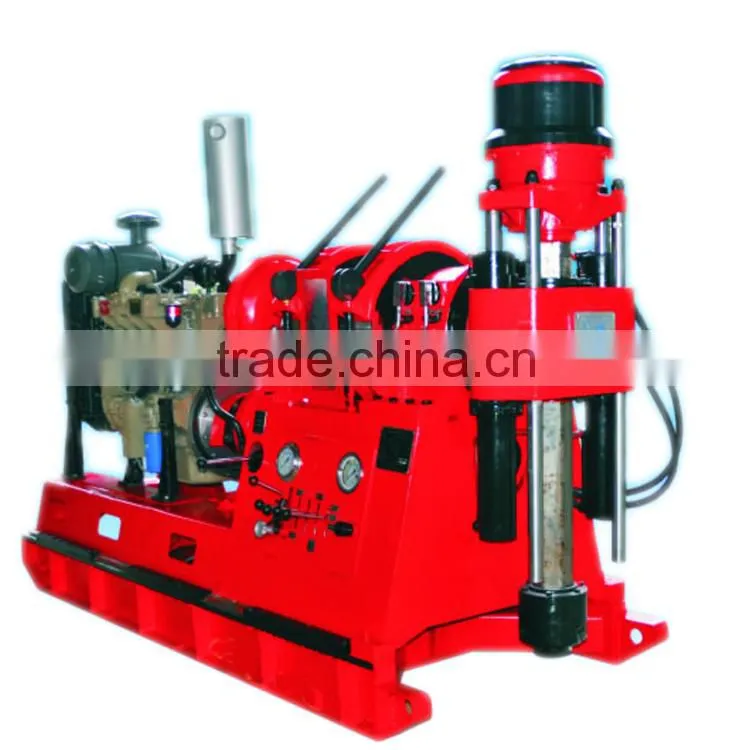

XY-44C 1000m 1200m Depth Spindle Type Hydraulic Drilling Rig
US$ 9,999 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Widely Used Hot Sale Light and Flexible Water Well Drilling Machine With Diesel EngineUS$ 1 - 10MOQ: 1 Set -
Portable Water Well Drilling Rig/core Drilling Rig Drill Rod 75mmUS$ 1 - 10MOQ: 1 Set
-
20m 800mm SR200M Rotary Drilling Rig Caisson Pile FoundationUS$ 10,000 - 10,000MOQ: 1 Set
-
JDL-300 DTH Percussive Drilling Water-air Dual Purpose Crawler Mounted Core Drilling RigUS$ 33,200 - 35,000MOQ: 1 Set
-
JDL-300 DTH Percussion Drilling Rig Water-air Multipurpose Crawler Drilling MachineUS$ 33,000 - 35,000MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
Chongqing, China
Brand Name
Gold
Model Number
XY-44C
Usage
Ore
Power(W)
50 KW
Dimension(L*W*H)
3038*1100*1938
Weight
2800KG( without power unit )
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

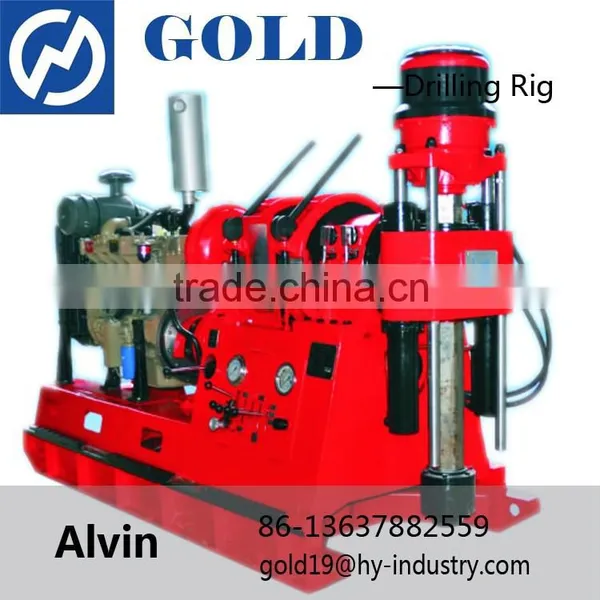

XY-44C spindle type hydraulic drilling rig
Product Description
Specification
| Drilling depth( m ) | 750-1400 | |
| Spindle speed (r/min) | Forward | 83;152;217;254;316;468;667;970 |
| Reverse | 67;206 | |
| Max. spindle torque(Nm) | 4250 | |
| Spindle stroke (mm) | 600 | |
| Inner diameter of spindle (mm) | Φ93 | |
| Max. pull/push force(KN) | 120/90 | |
| Max. hoisting force (single wire rope(KN) | 45 | |
| Hoisting speed(the third layer)(m/s) | 0.70,1.29,1.84,2.68 | |
| Drum capacity and wire rope dia.)(m) | 17.5mm(170kg/mm2)110 m | |
| 18.5mm(170kg/mm2)90 m | ||
| Speed of water brake (r/min) | 700~1800 | |
| Water brake balance speed of single rope / single rope balancing load | 3~8m/s/45KN | |
| Rated pressure of hydraulic system(Mpa) | 8 | |
| Driving stem | Driving stemΦ89×79×6000mm | |
| Power unit | Electric motor | Y225S-4 37Kw 1480r/min |
| Diesel engine | R4105G54 42Kw 1480r/min | |
| Diesel enige | YC4108ZD 50Kw 1500r/min | |
| Weight(excluding power unit) (kg) | 2200 | |
| Max. detachable subassembly(kg) | 350 | |
| Dimension(LXWXH) (mm) | 3038×1100×1938 | |
Established in 2009.
Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
Package: Wooden Case or Plywood
Deliverey: Container ship
