100m Multipurpose HZ-130Y Water Well Drilling Rig Small Drilling Rig
US$ 5,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, water well drilling
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Large End Hole Diameter Drilling Machine on Platform XY-44MP Water Well Drilling RigsUS$ 1 - 1MOQ: 1 Set -
off Road Condition XYC-200GT Truck Mounted Water Well Drilling RigUS$ 1 - 1MOQ: 1 Set
-
Drilling Rig Manufacturer MGY-90 Man Portable Anchoring Drilling RigUS$ 1 - 1MOQ: 1 Set
-
HZ-200YG Portabler Hydraulic Water Drilling RigNegotiableMOQ: 1 Set
-
Horizontal Directional Drilling Machine From Machine Manufacturers MGQ--30 Full Accessories Small Drilling RigUS$ 3,300 - 3,300MOQ: 1 Set
Condition
New
Type
Other, water well drilling
Power Type
Diesel
Place of Origin
China
Brand Name
Gold
Model Number
HZ-130Y water well drill machine
Usage
Water Well
Voltage
380V
Power(W)
11 KW
Dimension(L*W*H)
2500*1000*1300mm
Weight
560KG
Certification
CE SGS ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

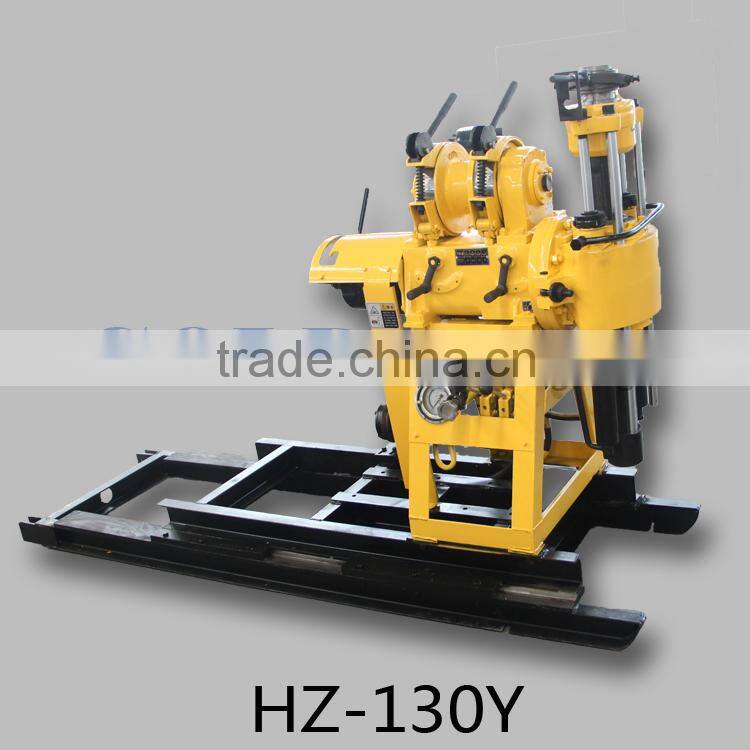

HZ-130Y small water well drilling machine
barrenas de perforacion|pozos petroleros|agua de pozo|equipo para perforar pozos de agua| perforadoras de agua| perforación de agua| pozos petroleros en mexico
Pictures of Product
Specification
| Specifications of water well drilling machine | ||
| Unity machine parameter | ||
| Drilling depth | 130m | |
| Maximum open hole caliber | 260mm | |
| End hole caliber | 75mm | |
| Drill rod caliber | 50mm | |
| Drilling angle | 90~75 | |
| Drill weight (No include power) | 510 560kg | |
| Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m | |
| Spindle | ||
| spindle speed | 142,285,570r/min | |
| Spindle stroke | 450mm | |
| Hoist | ||
| Max.single line hoisting capacity | 960kg | |
| Single line lifting speed | 0.41,0.82,1.64m/s | |
| Tightrope caliber | 27m | |
| Mud pump | ||
| Type | Horizontal single urn twin-action | |
| Displacement | 95/77L/min | |
| Diesle engine | S1105model 18HP | |
| Electric motor | Y160M—4 11kw 1440r/min | |
| Maximum pressure | 1.2Mpa | |
| Work pressure | 0.7Mpa | |
| Water inlet caliber | 30mm | |
| Water to exit caliber | 25mm | |
| Triangle conveyer belt | B1575mm | |
