Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig

Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig thumbnail-1
Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig thumbnail-2
Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig thumbnail-3
Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig thumbnail-4
Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig photo-1

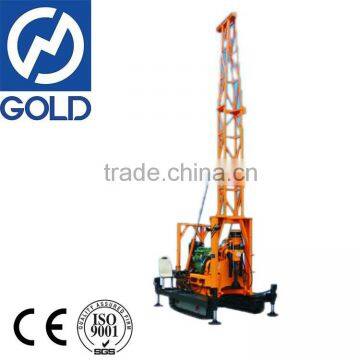

Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig photo-2
Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig photo-3

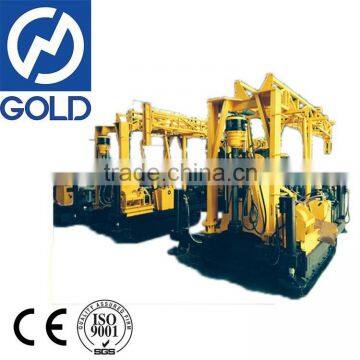

Market Price Crawler Mounted Soil Drilling Rig XY-2L Drilling Rig photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number XY-2L
Usage Other, Both ore and engineering
Voltage 380V
Power(W) 30 kW
Dimension(L*W*H) 4320*2104*2995
Weight 5000 kg
Certification ISO9001-2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Applications:



XY-2L crawler mounted water well drilling rig is developed base on XY-2 Core Drilling Rig, integrating drilling rig, crawler, mast, mud pump and control panel into whole. The rig is a kind of drilling rig which is mainly used for drilling shallow-medium hole for minerals,engineering geological, hydro-geological, water well and pile grouting hole drilling, and especially for where mobility and set up time are imprtant. It is a type of integration and modular drilling equipment with quick migration.



Features:



1. Integrated crawler traveling device, mud pump, control panel into one whole;

2, Caterpillar walking, base support, mast landing are all driven by the hydraulic system of drilling rig, it is easy to operate;

3. It is easy to move around and from or to at work site, improve the drilling efficient, and reduce the intensity of labor;

4. Mast landing, folding function for easy walking and transportation.

5. Have more speeds (8-speed), reasonable speed range, and big torque at lower speed, wide applications;

6. Having two reverse speeds, it is easy to handle the accidents.

7. The feed stroke of spindle is 600 mm, help to improve drilling efficiency, reduce blocking and burning of bit, easy to handle drilling accidents.

8. Twin-gear oil pump to supply oil for the hydraulic system of drilling rig, less power consumption, lower temperature of the hydraulic system.

9. Few control levers, reasonable layout, flexible and reliable manipulation.

10. Have normally a closed hydraulic chuck, also equipped with a lower mechanical manual chuck



specifications



Drilling depth

100-350 m

Drilling hole caliber

300-76 mm

Spindle speed

Forward:

65; 114; 180; 284; 310; 538;849;1172r/min

Reverse:

51; 242 r/min

Max. spindle torque:

2900 N.m

Max. pull force:

60 kN

Spindle stroke:

600 mm

Max. hoisting force:

30 kN

Inner dia. of spindle:

76 mm

Stroke of retraction cylinder:

304 mm

Distance away from hole

140 mm

Power unit (option):

Electric motor 22 kW; diesel engine 30 kW

Mud pump (option):

BW-200

Max. traction pull force of crawler:

20.3 kN

Crawler walking speed:

1.2 km/h

Track gradeability of crawler:

less 20°

Specific pressure of track ground:

0.06 MPa

Height of mast:

8 m

Hook hoisting load of mast:

29.4 kN

Crane beam max. static load:

58.8 kN

Pulley qty of crown block:

2 pcs

Angle of mast landing:

0°~ 90°

Overall dimension L*W*H

When transportation

4320*2104*2995 mm

When drilling

3816*2104*8536 mm

Whole weight:

About 3000 kg





Packaging & Shipping



Package: Wooden Case or Plywood

Shipping: within 10 working days after receival of deposit



Our Services

  Engineers available for overseas service of the machinery



Company Information

   Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
