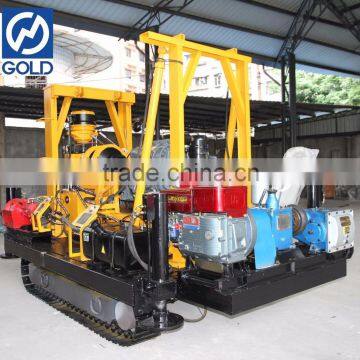

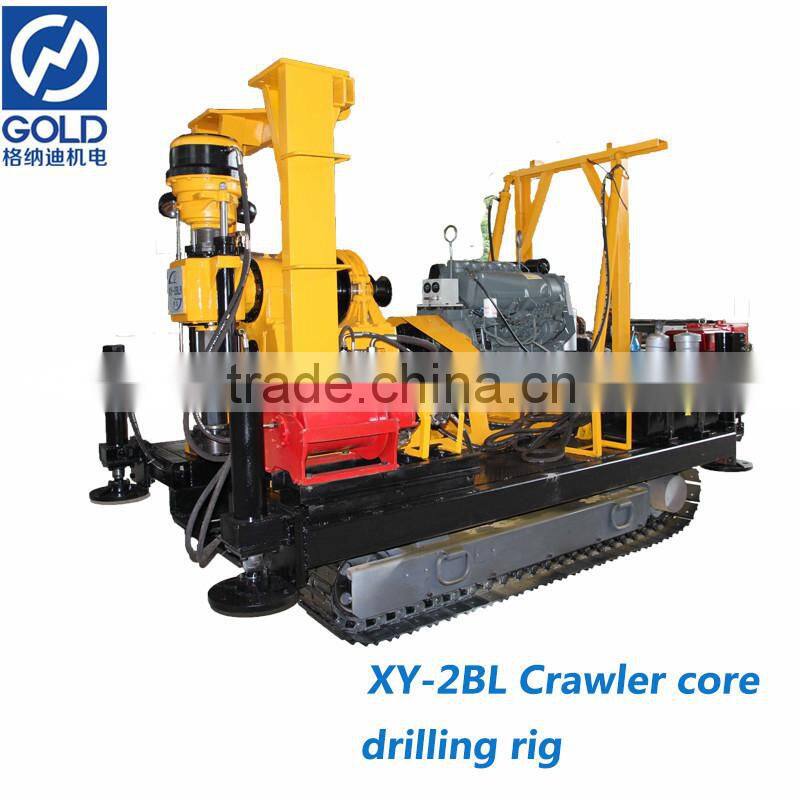

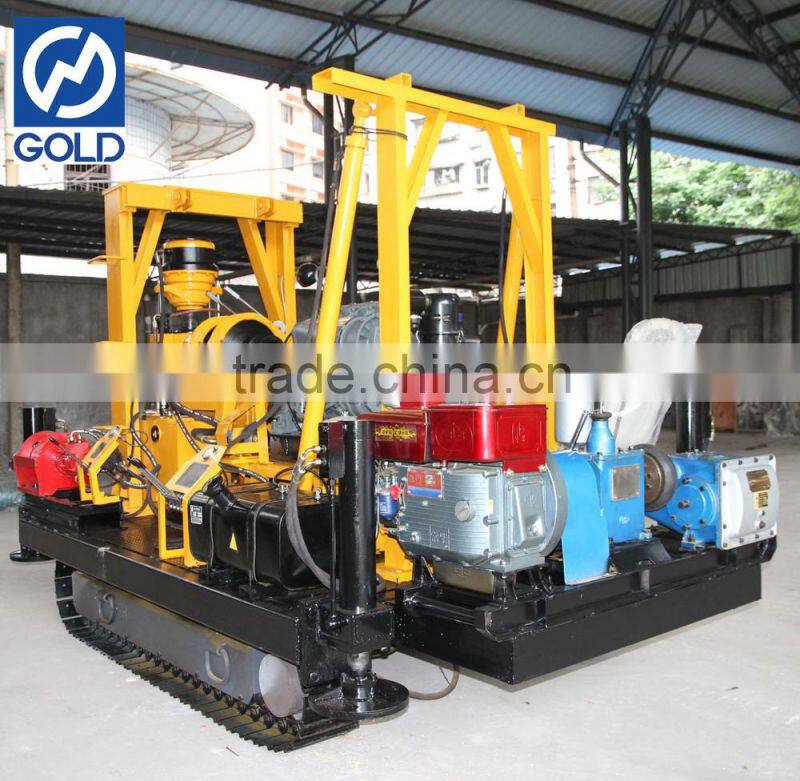

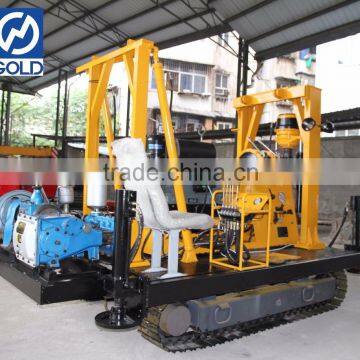

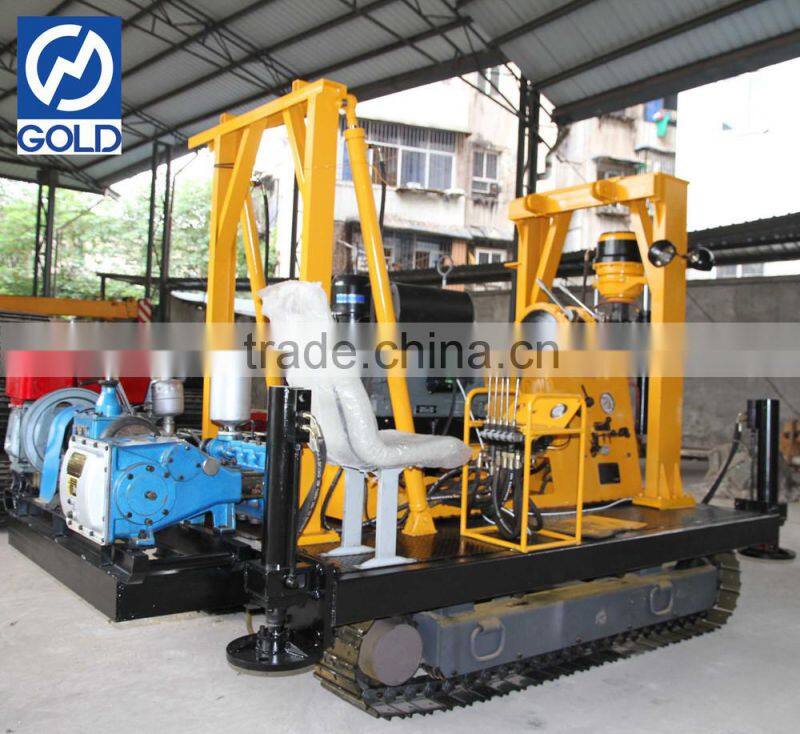

Efficient crawler integrated geological core drilling machine with ISO certificated
Geological core drilling sampling
Modular and integral drilling rig
XY-2BL
1.APPLICATION
XY-2BL rig is developed based on our XY-2 core drilling rig, integrating drilling rig, crawler, mud pump, console rack and other devices into the integral one. It is mainly targeted at the shallow-medium hole of geology core drilling, and where the mobility is important. It is modular and integral drilling rig.
2.FEATURES
-Integrated crawler, rig, mud pump, console racks;
-Crawler, the whole support rigs and tower with ups and downs are controlled by the hydraulic system of the rig, easy to operate and transport;
-The whole set of equipment can move to relocate, improve drilling efficiency, reduce labor intensity;
-The tower has the function of ups and downs , folding , easy walking and transportation;
-Rig with more (8 block) the speed of progression and reasonable speed range, and the relatively large low-speed torque, wide range of application.
-Rig has two reverse gear speeds, easy to deal with incidents;
-Rig has longer feed stroke as long as 600mm, will help improve drilling efficiency and reduce blocking drill, burning accidents;
-Rig has double oil pump, less power consumption, lower oil temperature of hydraulic system;
-Rig has few control levers, rational layout, flexible and reliable operation;
-In addition there is a normally closed upper hydraulic chuck on , but also with lower mechanical man-powered chuck.
3.SPECIFICATION
| 1 | Drilling depth (NQ drill rod) | Approximately 500m | ||
| 2 | Spindle speed | Forward | 57;99;157;217;270;470;742;1024 | |
| Reverse | 45;212 r/min | |||
| 3 | Spindle Maximum torque | 3200 N·m | ||
| 4 | Spindle max pulling force | 60 KN | ||
| 5 | Spindle stroke | 600 mm | ||
| 6 | Max. lifting force of the hoist with single rope | 30 KN | ||
| 7 | Inner diameter of the spindle | 96 mm | ||
| 8 | Retraction distance | 305 mm | ||
| Retraction distance for the host drill rig | 330 mm | |||
| Retraction distance for both drill rig and tower | 160 mm | |||
| 10 | Oil pump | SCB32/12 double gear pump | ||
| 11 | Power unit | engine power | 30 KW 1500 r/min | |
| electric motor | 22KW 1470 r/min | |||
| 12 | Crawler maximum walking speed | 1.2 km/h | ||
| 13 | Crawler Climbing capacity | no more than 25 ° | ||
| 14 | Tracked Ground pressure | 0.042 MPa | ||
| 15 | Rig height | 8 m | ||
| 16 | Hook load of the tower | 29.4 kN | ||
| 17 | Max.static load of crown block beam | 58.8 kN | ||
| 18 | Quantity of pulley | 2 | ||
| 19 | Angle range of tower ups and downs | 0°~ 90° | ||
| 20 | Rig Dimensions ( tower horizontal position ) | (L*W*H) 4450×2166×3080 mm | ||
| 21 | Total weight | about 5500 kg | ||
-Plywood
-Woodencase
-Normal packing
Our company can provide overseas services!
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
Web:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing oil treatment equipment. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil purifiers which are excellent in quality, capable of standing wear, complete in various styles. And its aviation, ship, railway, pharmacy and edible oil processing. Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with the standard JB/T5285-2001 by Ministry of Machine Building, standard DL/T521-2004 by Ministry of Power Industry.
Richard Li
Skype:lzxbuktop
Tel.: 86-185-2384 6792
Fax.: 86-023-6294 0030
Chongqing GOLD mechanical & electrical equipment Co., Ltd.
