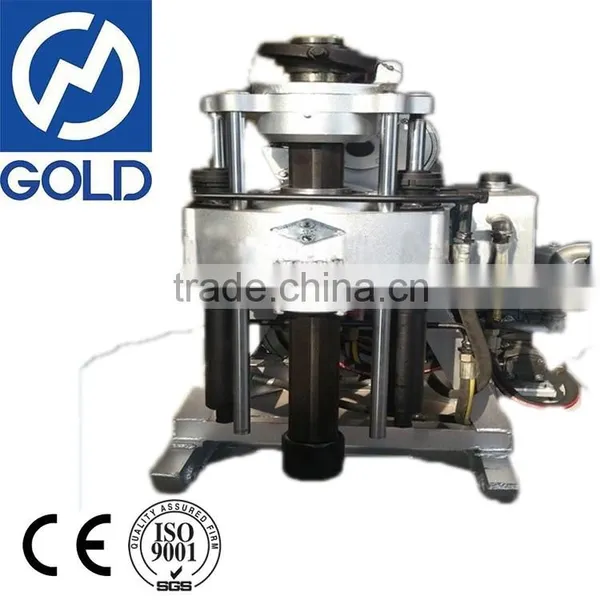

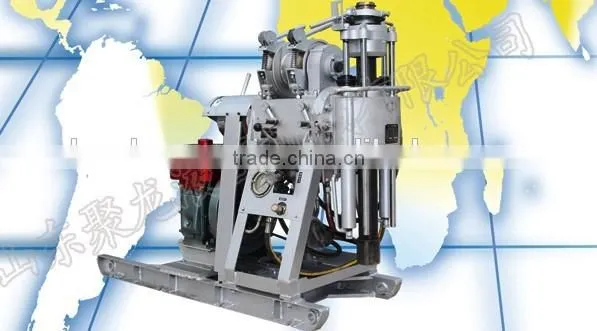

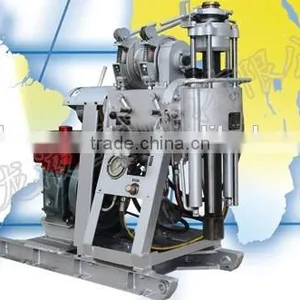

Help CenterAluminum Alloy Geological Water Well Drilling Rig HZ-130T
Related Products
-
Qualified XYX-200 600m Mobile Drilling Rig WorldwideNegotiableMOQ: 1 Set -
Shallow Hole Core Drilling Rig With Wireline System XY-2BTCNegotiableMOQ: 1 Set
-
XYD-200 Top Drive Crawler Water Well Drilling RigNegotiableMOQ: 1 Set
-
Best Sale in China, Core Drilling RigNegotiableMOQ: 1 Set
-
Multi-founctional Core Drilling Rig, Depth-1000mNegotiableMOQ: 1 Set
a. Keeping bracket is installed on the hoist to form a double wheel support structure, able to withstand strong blow

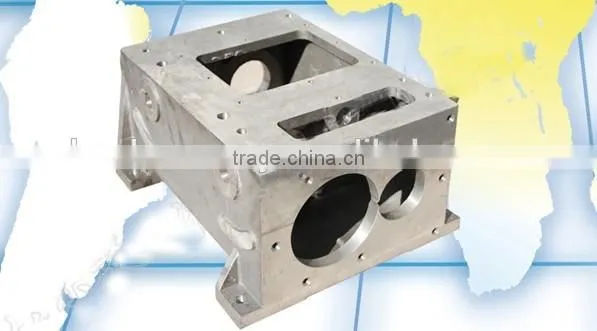

b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology--- taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
HZ130YY drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and direct grouting, civil wells and earth temperature central air-conditioner,etc
Drilling depth |
10-130m |
Maximum open hole caliber |
260mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90~75 |
Drill weight (No include power) |
510 560kg |
Unity machine dimensions |
2.5×1×1.3 2.5×0.9×1.3m |
Spindle | |
spindle speed |
142,285,570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
960kg |
Single line lifting speed |
0.41,0.82,1.64m/s |
Tightrope caliber |
27m |
Mud pump of HZ-130t model drilling rig | |
Type |
Horizontal single urn twin-action |
Displacement |
95/77L/min |
Diesle engine |
Model s1110 18HP |
Electric motor |
Y160M—4 11kw 1440r/min |
Maximum pressure |
1.2Mpa |
Work pressure |
0.7Mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
25mm |
Triangle conveyor belt |
B1575mm |
| Packaging Details: | Wooden Case or Plywood |
|---|---|
| Delivery Detail: | within 10 working days after receival of deposit |
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
