Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Multi-founctional Efficient Skid Type Drilling Machine

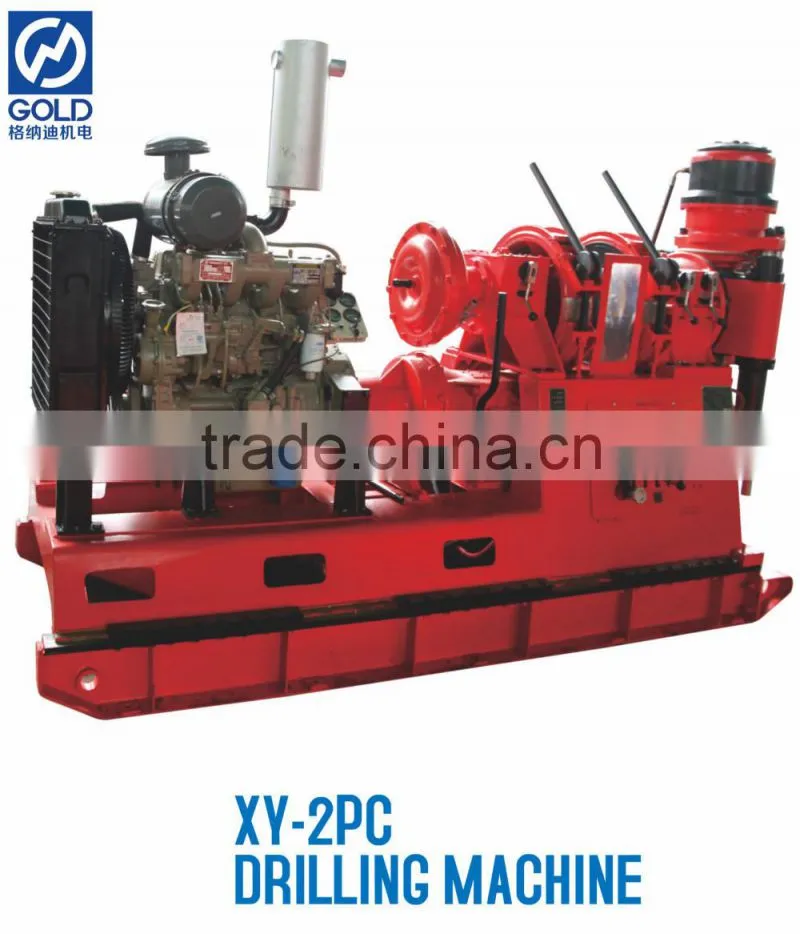

Multi-founctional Efficient Skid Type Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Crawler Drilling Rigs XYD-3 Portable Drilling RigNegotiableMOQ: 1 Set -
Truck Mounted XYC-200GT Grouting & Grouting Hole Drilling Rig With ISO CertificatedUS$ 1 - 2MOQ: 1 Set
-
Hot Sold Crawler Drilling Rig for Anchoring and Jet-grouting With Competitive Price and Good QualityNegotiableMOQ: 1 Set
-
Portable Dam Grouting Hole Drilling, XYX-3 Trailer Drilling RigUS$ 1 - 2MOQ: 1 Set
-
Powerful Hydraulic BG-60/(60A) Drawbench MachineUS$ 1 - 8,888MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
Chongqing, China
Brand Name
GOLD
Model Number
XY-2PC
Usage
Other, geological exploration and construction drilling
Voltage
380V
Power(W)
13.2KW
Dimension(L*W*H)
1720*800*1300mm
Weight
650kg
Certification
ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Competitive Core drilling rig with light weight
XY-2PC
Product Description
1. APPLICATION
The drillrig is used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway, roadway and harbor and drilling pile grouting hole.
2.FEATURES
The drill has such features as small body, light weight; especially available for construction of hydroelectric power-station. It can get two series of speeds by means of substitution of one pair of helical gears for other one.
3.SPECIFICAITON
Drill Capacity(m) |
50mm drill rod | 150 |
| 43mm Wire line drillrod | 300 | |
| spindle speed (r/min) | Forward | 81;164;298;334;587;1190 |
| Reverse | 98;199 | |
| Max torque(Nm) | 1110 | |
| Angle range | 0-90° | |
| Max spindle pull force (KN) | 45 | |
| Spindle stroke | 500 | |
| Hoist max lift capacity (singlerope) (KN) | 20 | |
| Oil pump | CB32 gear oil pump | |
| Power unit | Diesel engine | 295D 13.2KW |
| Electric motor | YD180L-4/8 17/11KW | |
| Drill body weight(excluding power)(Kg) | 650 | |
| Overal dimensions(L×W×H)(mm) | 1720×800×1300 | |
Pictures
