Multi-founctional drilling machine
Pile grouting hole drilling (building, hydroelectric power-station, highway, roadway and harbor) & Geological prospecting
Light in weight, especially available for construction of hydroelectric power-station.

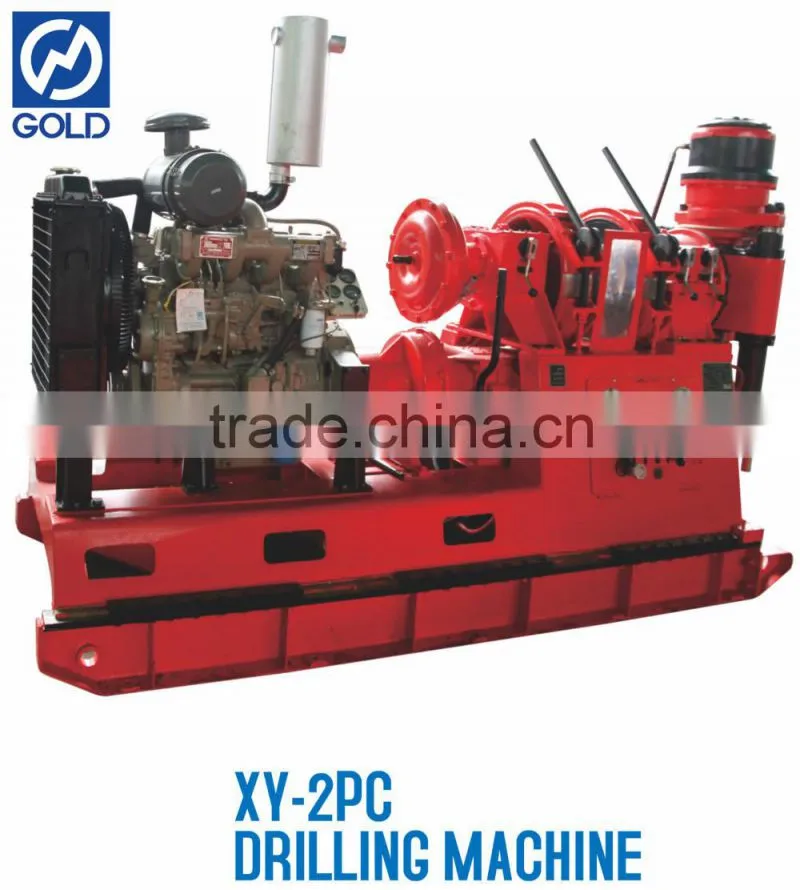

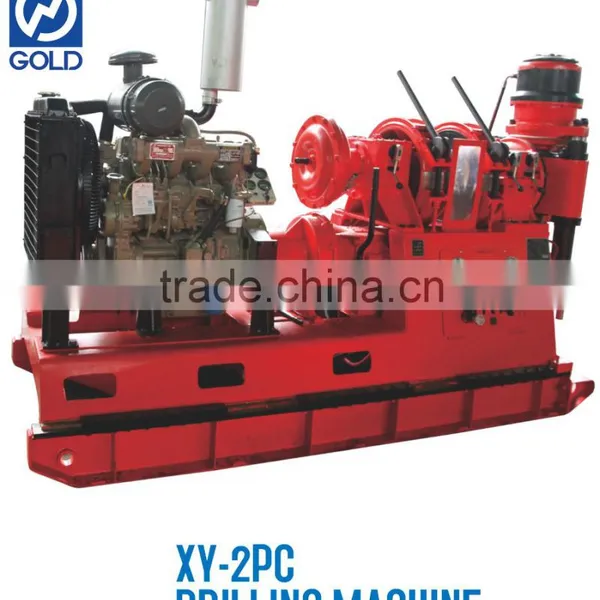

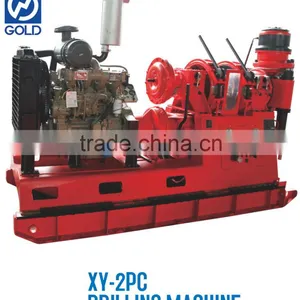

XY-2PC
1. APPLICATION
The drillrig is used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway, roadway and harbor and drilling pile grouting hole.
2.FEATURES
The drill has such features as small body, light weight; especially available for construction of hydroelectric power-station. It can get two series of speeds by means of substitution of one pair of helical gears for other one.
3.SPECIFICAITON
Drill Capacity(m) |
50mm drill rod | 150 |
| 43mm Wire line drillrod | 300 | |
| spindle speed (r/min) | Forward | 81;164;298;334;587;1190 |
| Reverse | 98;199 | |
| Max torque(Nm) | 1110 | |
| Angle range | 0-90° | |
| Max spindle pull force (KN) | 45 | |
| Spindle stroke | 500 | |
| Hoist max lift capacity (singlerope) (KN) | 20 | |
| Oil pump | CB32 gear oil pump | |
| Power unit | Diesel engine | 295D 13.2KW |
| Electric motor | YD180L-4/8 17/11KW | |
| Drill body weight(excluding power)(Kg) | 650 | |
| Overal dimensions(L×W×H)(mm) | 1720×800×1300 |
|
-Plywood
-Woodencase
-Normal packing
