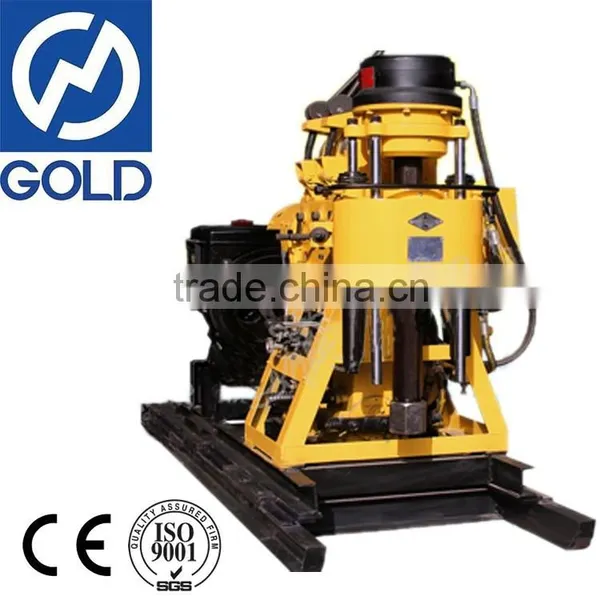

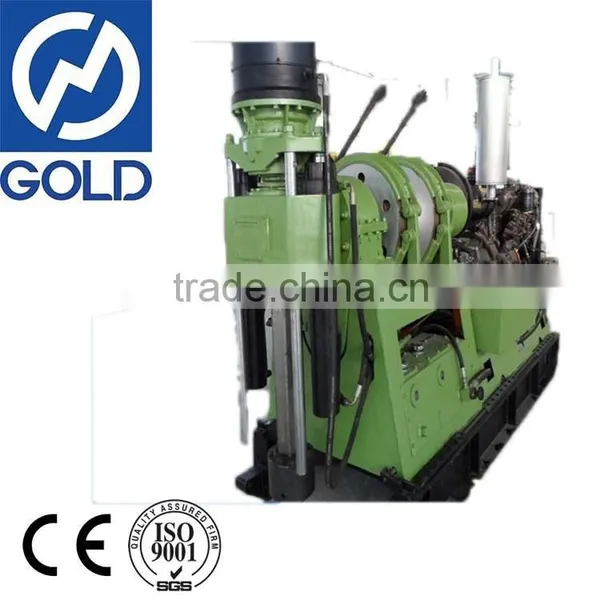

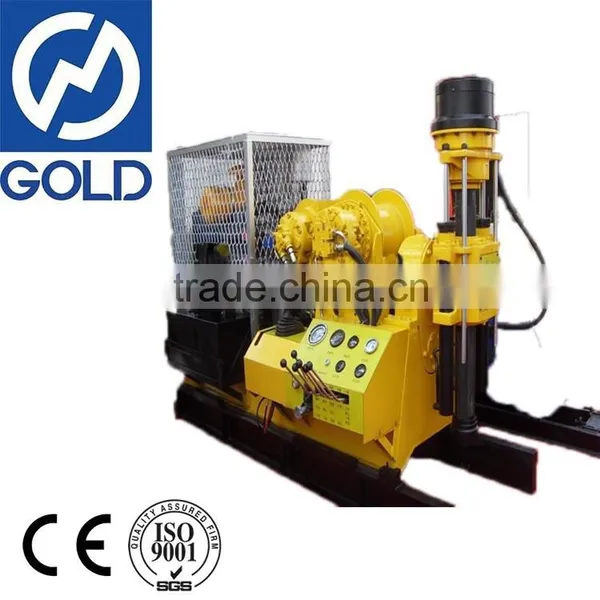

Help CenterDiamond Core High Effciency Drilling Rig HZ-200GT
Related Products
-
New Condition XY-8B Core Drilling RigNegotiableMOQ: 1 Set -
XY-2BTC New Max Depth 500m Water Well Drilling RigNegotiableMOQ: 1 Set
-
High-performance Crawler Drilling Machine for Mineral ExplorationUS$ 1 - 2MOQ: 1 Set
-
ISO Certificated Hydraulic MGJ-50L Road & Dam Base Consolidation Anchor Drilling RigUS$ 1 - 2MOQ: 1 Set
-
Efficient ZLJ-2900 Coal Mining Hydraulic Drilling Machine With ISO CertificatedUS$ 1 - 2MOQ: 1 Set
Features of HZ-200GT Drilling Rig
a. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
b. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
c. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
d. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
Applications
HZ-200GT drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, civil wells and earthtemperature central air-conditioner
| Unity machine parameter | |
| Drilling depth | 200m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 975kg |
| Triangle conveyer belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22HP Electric motor 15kw |
| Spindle | |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wirerope caliber | 13mm |
| Wirerope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug folldgate belt width | 70mm |
| Mud pump | |
| Type | Horizontal single-urn twin-action |
| Displacement |
Dieselengine170L/min Electric motor 150L/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Inlet pipe caliber | 40mm |
| Outlet pipe caliber | 30mm |
| Triangle conveyer belt | B1728mm |
| Hydraulic pump | |
| Type | CBT-F-314 |
| Triangle conveyer belt | B1100 X 1 |
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
