100m, 150m, 300m, 500m Borehole Drilling Equipment

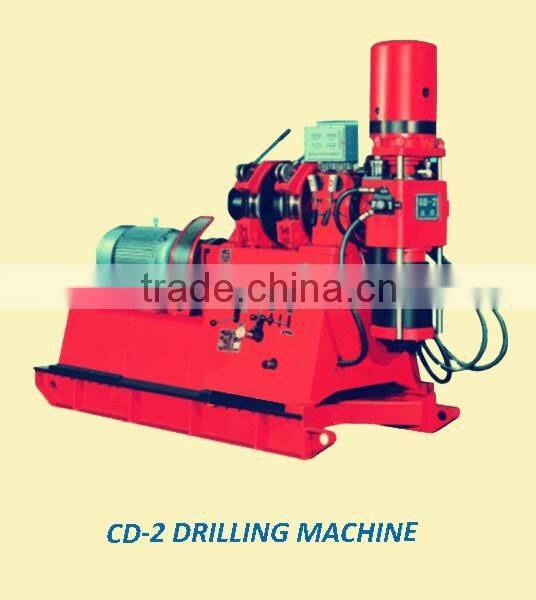

100m, 150m, 300m, 500m Borehole Drilling Equipment photo-1
US$ 1 - 18,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number HZ-130Y
Usage Water Well
Voltage 380V
Dimension(L*W*H) 250*10*130cm
Weight (No include power) 510 560kg
Certification ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



                                           100m, 150m, 300m, 500m borehole drilling equipment

100m, 150m, 300m, 500m borehole drilling equipment





specifications



Unity machine parameter
Drilling depth 10-130m
Maximum open hole caliber 260mm
End hole caliber 75mm
Drill rod caliber 50mm
Drilling angle 90~75
Drill weight (No include power) 510 560kg
Unity machine dimensions 2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed 142,285,570r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 960kg
Single line lifting speed 0.41,0.82,1.64m/s
Tightrope caliber 27m
Mud pump of HZ-130YY model drilling rig
Type Horizontal single urn twin-action
Displacement 95/77L/min
Diesle engine Model s1110  18HP
Electric motor Y160M—4 11kw 1440r/min
Maximum pressure 1.2Mpa
Work pressure 0.7Mpa
Water inlet caliber 30mm
Water to exit caliber 25mm
Triangle conveyer belt B1575mm





Packaging & Shipping



Package: Wooden Case or Plywood

Shipping: within 10 working days after receival of deposit



Our Services

  Engineers available for overseas service of the machinery



Company Information

   Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
