2016 hot product 8ch DVR kit with 1080P AHD cameras security alarm system
- 500 Piece / Pieces per Month
- Shenzhen and Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
-
Landwell 2014 new rfid 125khz guard tour reader checkpoint
-
Rfid Tag for guard tour system
-
2015 New LANDWELL new 3000-EF RFID shockproof guard tour patrol management system
-
2015 New LANDWELL 3000-EF Handheld rfid digital guard tour system
-
2015 New LANDWELL 3000-EF Handheld hot selling Waterproof Guard Patrol Tour System
-
2015 New Product LANDWELL 3000-EF Handheld Waterproof RFID Contactless Guard Tour System
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Neutral or OEM | Model Number: | CS-S7820FA |
Product Description

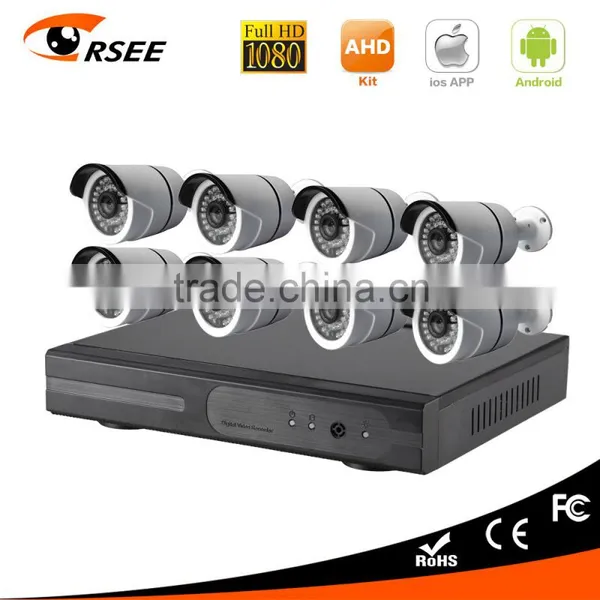

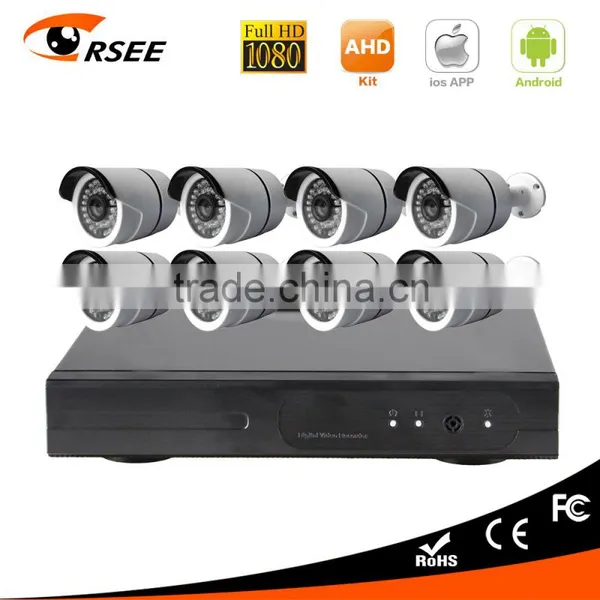

2016 hot product 8ch DVR kit with 1080P AHD cameras security alarm system
Main Features:
1. HD Remote View by PC and Smart Phone.
2. Max 500 Meters Video Transportation Distance
3. Support VGA, HDMI Output
4. Plug and Play, Auto Connection Camera , No Need Any Setting.
5. Support UTC Function for HD Analog Camera
6. 4*18Meters BNC Cable apply to All Kinds of Scene.
Firmware | Operating System | Embedded Linux |
Video parameter | Input channel | 8ch |
Preview resolution | 1080P | |
Image coding format | H.264 | |
Encode Resolution | 1080P | |
Video bitrate | 512Kbps~4192Kbps,default 2048Kbps | |
Video Playback | 4*1080P | |
Subcode Resolution | Cif@15fps | |
Stream Type | Video stream/compound stream | |
Dual-stream | Support | |
Audio parameter | coding standard | G.711A |
Audio Sample Rate | 8KHz/16Bit | |
AUdio Bitrate | 64Kbps | |
Video Interface | Anolog Video Input | 8xBNC Interface |
Video in | 1xVGA,1xHDMI | |
Audio Interface | Audio in | 1xRCA (4CH/8CH optional) |
Audio output | 1xRCA | |
video Management | Recording Mode | Alarm Recording, Auto Recording,Motion Detection Recording, Manual Recording |
Backup | U disk, Hard Drive, Internet. | |
Alarm | Alarm Input | 4CH (optional) |
Alarm Output | 1CH (optional) | |
Hard Disk | Hard Disk Interface | 2xSATA |
Single Disk Capacity | 4TB | |
Communication Interface | Network Interface | 1xRJ45 Interface, 100M Ethernet Interface |
Communication | 1x485 Interface (Extensible matching) | |
USB | 2xUSB Interface | |
Others | BNC cable | 8*18 meters |
Power Supply | DC12V | |
Power Consumption | 4W(Without HDD) | |
Operate Temperature | -10°C~+55°C | |
Working Humidity | 10%~90% | |
AHD Camera Specification | ||
Technical Parameters | Camera quantity | 8pcs |
Sensor | 1/4" 1 Mega PICADIS | |
Signal System | PAL/NTSC | |
Mega pixel | 1080P | |
Sensor | IMX322 | |
Minimum illumination | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR | |
Shutter | 1/25s to 1/25,000s | |
Lens | 3.6mm/6mm | |
Lens Interface type | M12 | |
Day & Night Mode | ICR | |
IR View Distance | 20~30M | |
Video Output | 1Vp-p Composite Output(75Ω/BNC) | |
General Specification | S/N | >62dB |
Operating Environment | -40°C~60°C, < 90% | |
Power Supply | DC12V±10% | |
Power consumption | 4W MAX | |
Level of Protection | IP66 | |
Q: What’s your company’s advantage?
A: We are a R&D, Production and Marketing 3 in 1 enterprise. We provide high quality products with competitive price based on scientific management.
Q: Can you offer OEM&ODM service?
A: Yes, we can. We have about 150 senior engineers and will satisfy all your specific requirements.
Q: How about your company's production capacity?
A: We produce 5000pcs of DVR/NVR and 2000pcs of Cameras per day on average.
Q: How long is your delivery time?
A: Within 3 days for sample order, 5-12 days for mass order in general.
Q: How long is your product’s warranty?
A: The warranty is 24 months. We also have a professional engineer team for after-sale technical support.
Thanks for your attention to our company and products. We are confident that you will be satisfied with our products and service. Welcome to visit our factory in Guangzhou. Hope to cooperate with you for Win-Win.
