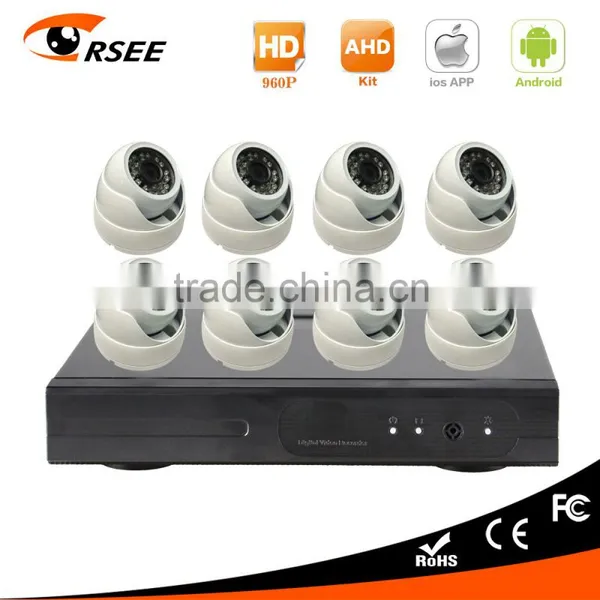

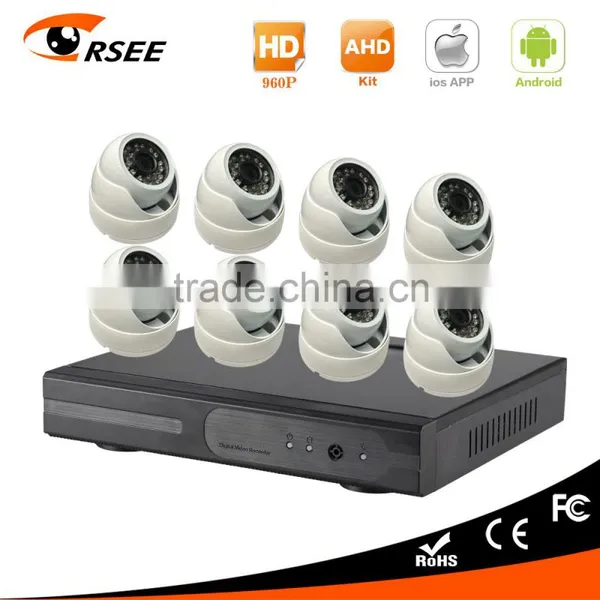

Made in China 8ch DVR kit with 960P AHD cameras surveillance system
Main Features:
1. HD Remote View by PC and Smart Phone.
2. Max 500 Meters Video Transportation Distance
3. Support VGA, HDMI Output
4. Plug and Play, Auto Connection Camera , No Need Any Setting.
5. Support UTC Function for HD Analog Camera
6. 4*18Meters BNC Cable apply to All Kinds of Scene.
Firmware |
Operating System |
Embedded Linux |
Video parameter |
Input channel |
8ch |
Preview resolution |
960P |
|
Image coding format |
H.264 |
|
Encode Resolution |
960P |
|
Video bitrate |
512Kbps~4192Kbps,default 2048Kbps |
|
Video Playback |
4*960P |
|
Subcode Resolution |
Cif@15fps |
|
Stream Type |
Video stream/compound stream |
|
Dual-stream |
Support |
|
Audio parameter |
coding standard |
G.711A |
Audio Sample Rate |
8KHz/16Bit |
|
AUdio Bitrate |
64Kbps |
|
Video Interface |
Anolog Video Input |
8xBNC Interface |
Video in |
1xVGA,1xHDMI |
|
Audio Interface |
Audio in |
1xRCA (4CH/8CH optional) |
Audio output |
1xRCA |
|
video Management |
Recording Mode |
Alarm Recording, Auto Recording,Motion Detection Recording, Manual Recording |
Backup |
U disk, Hard Drive, Internet. |
|
Alarm |
Alarm Input |
4CH (optional) |
Alarm Output |
1CH (optional) |
|
Hard Disk |
Hard Disk Interface |
1xSATA |
Single Disk Capacity |
4TB |
|
Communication Interface |
Network Interface |
1xRJ45 Interface, 100M Ethernet Interface |
Communication |
1x485 Interface (Extensible matching) |
|
USB |
2xUSB Interface |
|
Others |
BNC cable |
8*18 meters |
Power Supply |
DC12V |
|
Power Consumption |
4W(Without HDD) |
|
Operate Temperature |
-10°C~+55°C |
|
Working Humidity |
10%~90% |
|
AHD Camera Specification | ||
Technical Parameters |
Camera quantity |
8pcs |
Sensor |
1/4" 1 Mega PICADIS |
|
Signal System |
PAL/NTSC |
|
Mega pixel |
960P |
|
Sensor |
AR0130 |
|
Minimum illumination |
0.1Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
3.6mm/6mm |
|
Lens Interface type |
M12 |
|
Day & Night Mode |
ICR |
|
IR View Distance |
20~30M |
|
Video Output |
1Vp-p Composite Output(75Ω/BNC) |
|
General Specification |
S/N |
>62dB |
Operating Environment |
-40°C~60°C, < 90% |
|
Power Supply |
DC12V±10% |
|
Power consumption |
4W MAX |
|
Level of Protection |
IP66 |
|
