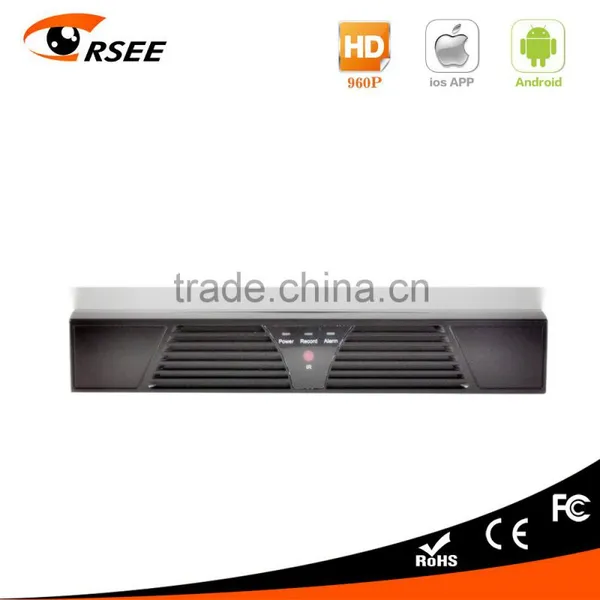

Help Center4CH/8CH D1/CIF Cheap Cctv DVR ,mobile Dvr Support P2P PTZ RS485 Port
Related Products
-
2016 Hot Selling Cute Mini Size 1mp ip CameraUS$ 11 - 16MOQ: 50 Pieces -
Hot Sale Security System Home 1.0MP 720p ip CameraUS$ 11 - 16MOQ: 50 Pieces
-
Hot Selling Security Home System 1.0MP Camera ipUS$ 11 - 16MOQ: 50 Pieces
-
Hot Sale Home Security System 1.0MP Camera ip hdUS$ 11 - 16MOQ: 50 Pieces
-
Hot Selling Surveillance Camera System 1.0MP Cctv ip CameraUS$ 11 - 16MOQ: 50 Pieces
Specifications & Features
1. Hybrid DVR Support AHD, TVI, Analog, IP Cameras Auto Switch
2. Support P2P Cloud Function for Remote View by PC and Smart Phone
3. Support Motion Detection Alarm and Email Alarm
4. Support Onvif Protocol for Connection IP Camera
5. Support UTC Function for HD Analog Camera
6. Plug and Play, Auto Check Network Connection
Model | CS-S2040 | CS-S2080 | CS-S2160 CS-S2164 | |
System | Main Chipset | Hi3520DV200 | Hi3520DV300 | Hi3521A |
Operating System | Embedded LINUX Operating System | |||
Video Specification | Video Input | 4CH | 8CH | 16CH |
Preview Resolution | TVI1080P-H@25fps /AHD720P@25fps / 960H/@25fps / IPC1080P@25fps | |||
Video Compression | H.264 | |||
Encoding Resolution | 1080P-H(960*1080)/720P/960H/D1 | |||
Frame Rate | TVI/ AHD/Analog@15FPS, IPC @25fps | |||
Video Coding rate | 512Kbps~4096Kbps | |||
Video Playback | 4ch *1080P-H(960*1080)/720P/960H/D1 | |||
Dual Stream | support | |||
Audio specification | Audio Compression | G.711A | ||
Audio Rate | 8KHz/16Bit | |||
Video Interface | Video Input | BNC Interface x 4 | BNC Interface x 8 | BNC Interface x 16 |
Video Output | 1 ch VGA output,1 ch HDMI output | |||
Audio Interface | Audio Input | 4CH | 4CH /8CH | 2CH / 8CH /16CH |
Audio Output | 1 RCA Audio Output/HDMI Audio Output | |||
Alarm | Alarm Input | 4ch (optional) | ||
Alarm Output | 1ch (optional) | |||
HDD | Interface Type | 1-2 SATA | 1-2 SATA | 2-4 SATA |
Single capacity | MAX 4TB | |||
External Interface | Network Interface | 1 RJ45 Interface, 100M Ethernet Interface | ||
Serial Interface | 1 RS485 | |||
USB 2.0 | 2 | |||
Other Information | Power Supply | DC12V | ||
Working Temperature | -10~55 | |||
Working Humidity | 10%~90% | |||
Packaging/shiping
Q: What’s your company’s advantage?
A: We are a R&D, Production and Marketing 3 in 1 enterprise. We provide high quality products with competitive price based on scientific management.
Q: Can you offer OEM&ODM service?
A: Yes, we can. We have about 150 senior engineers and will satisfy all your specific requirements.
Q: How about your company's production capacity?
A: We produce 5000pcs of DVR/NVR and 2000pcs of Cameras per day on average.
Q: How long is your delivery time?
A: Within 3 days for sample order, 5-12 days for mass order in general.
Q: How long is your product’s warranty?
A: The warranty is 24 months. We also have a professional engineer team for after-sale technical support.
Thanks for your attention to our company and products. We are confident that you will be satisfied with our products and service. Welcome to visit our factory in Guangzhou. Hope to cooperate with you for Win-Win.
