Best Sale 80-100m Water Well Small Size Drilling Machine

Best Sale 80-100m Water Well Small Size Drilling Machine photo-1

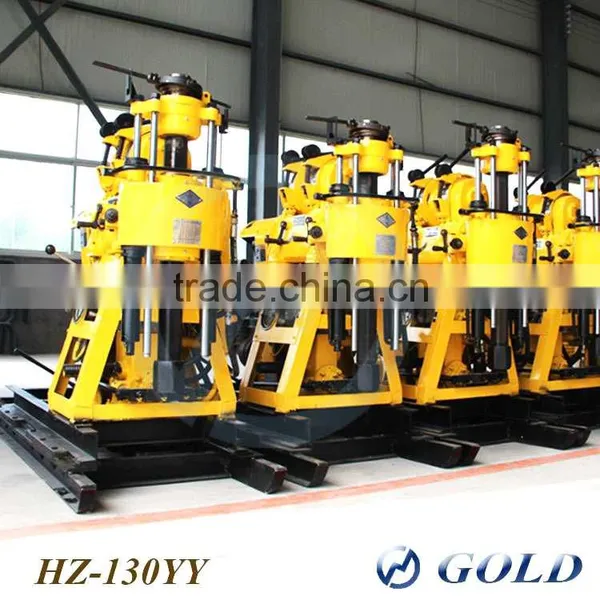

Best Sale 80-100m Water Well Small Size Drilling Machine photo-2

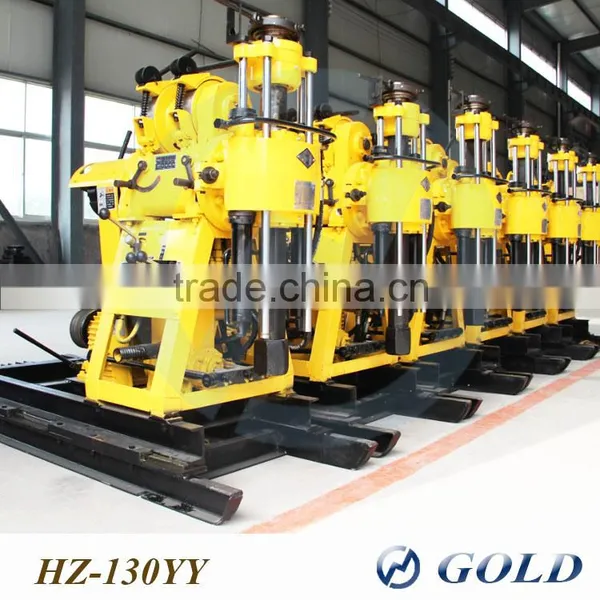

Best Sale 80-100m Water Well Small Size Drilling Machine photo-3
Best Sale 80-100m Water Well Small Size Drilling Machine photo-4

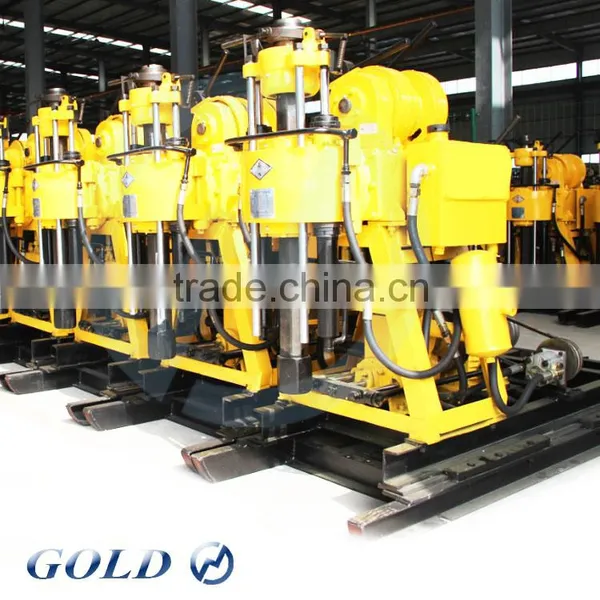

Best Sale 80-100m Water Well Small Size Drilling Machine photo-5
Best Sale 80-100m Water Well Small Size Drilling Machine photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Small Size Drilling Machine
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Small Size Drilling Machine
Power Type Diesel
Place of Origin Chongqing, China
Brand Name Gold
Model Number HZ-130YY
Usage Water Well
Voltage 380V
Power(W) 13.2kw
Dimension(L*W*H) 2400*800*1400mm
Weight 740kg without power
Certification ISO9001, CE, SGI
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Why choose us

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd, a professional manufacturer with 15 years experience, specializing in geological equipments and related engineering drilling rigs.

We won our excellent reputation from our customers with our competitive offer and trustworthy quality. Our main target markets focus on Africa, Central and Southeast Asia, South America, especially for their water well drilling construction and geological investigation. We have an professional team for overseas technical after sales service since 2003, having achieved satisfying praise from our customers.

Looking forward to our cooperation, and we will do our best to satisfy you in 2016!

Product description

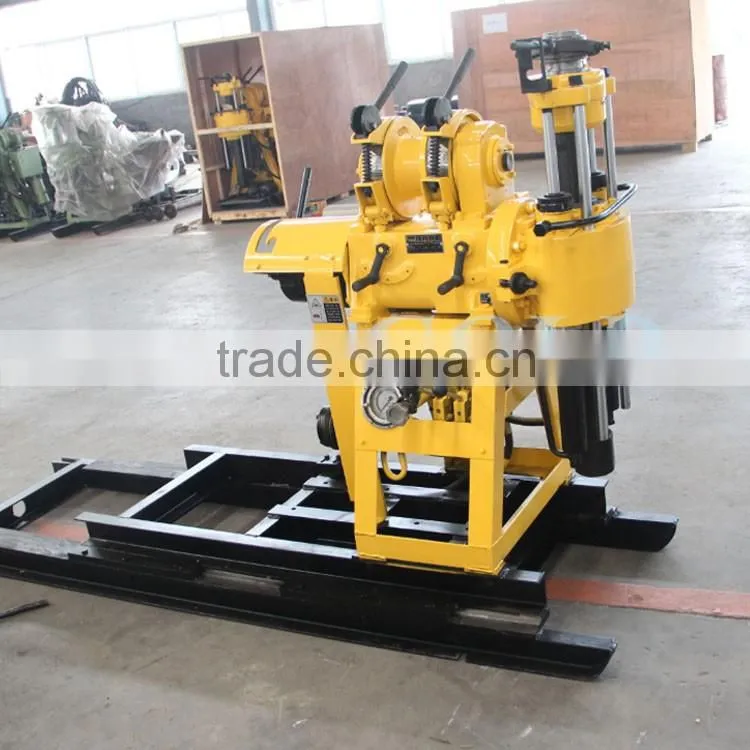

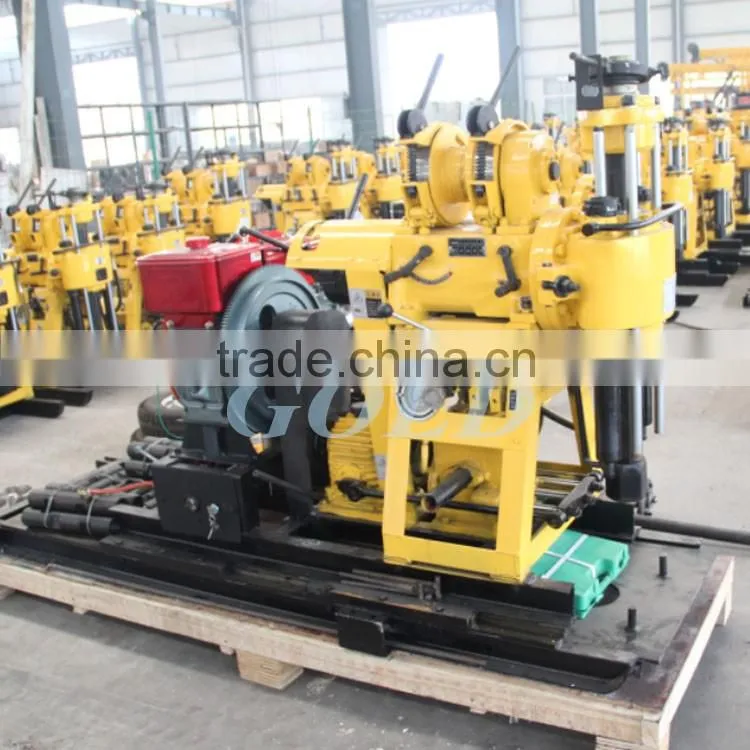

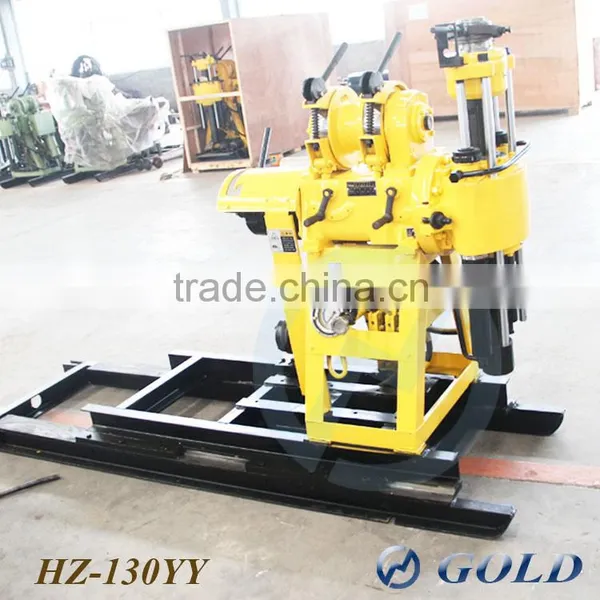

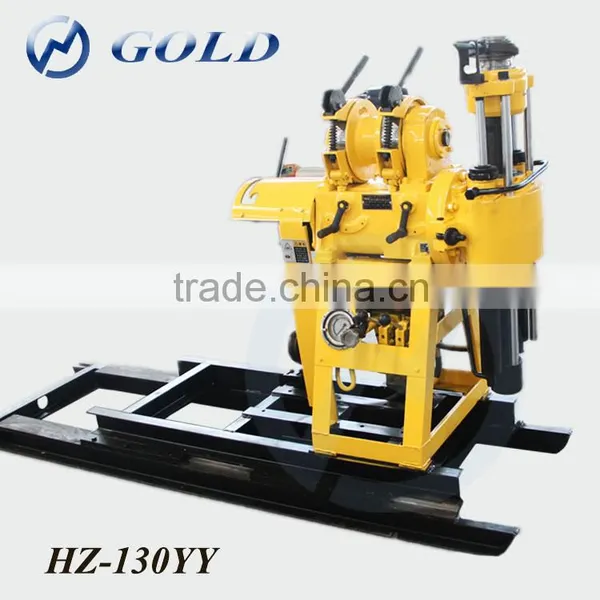

HZ-130YY Geothermal Well Drilling Rigs is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner, etc.

Drilling depth
130m
Max open hole caliber
220mm
End hole caliber
75mm
Drill rod caliber
42-60mm
Drilling angle
90°~75°
Drill weight (without power)
740kg
Dimension
2400*800*1400mm
Spindle
Spindle speed
142, 285, 570r/min
Spindle stroke
450mm
Hoist
Max. single rope lifting capacity
2000kg
Single rope lifting speed
0.41-1.64m/s
Wirerope caliber
9.3mm
Wirerope capacity
27m
Drill Mast
Rated load
18t
Height
6.5m
Mud pump
Flow
95L/min
Max. pressure
1.2Mpa
Reciprocating times
93times/min
Inlet hose diameter
51mm
Outlet hose diameter
32mm
Hot sale models

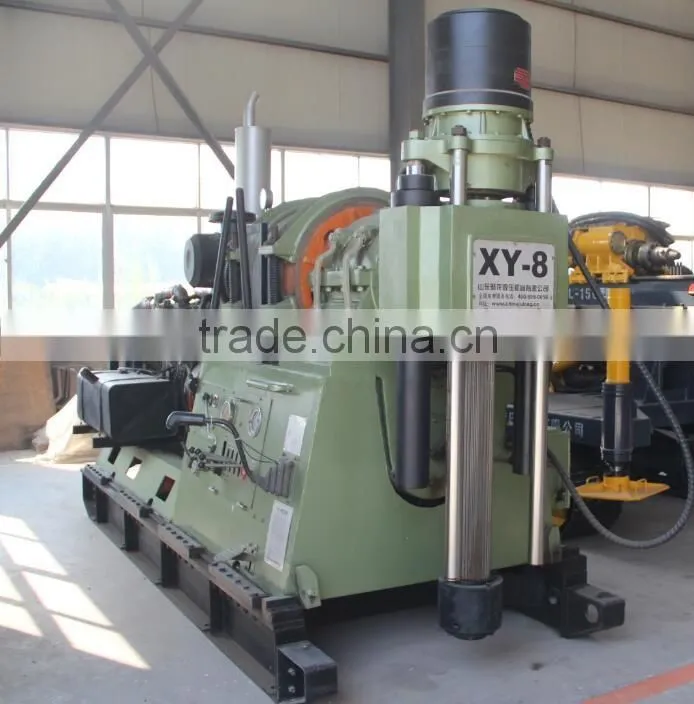

XY-8 Max 3000m Core sampling drilling rig, multipurpose use

Multi-functional geological investigation drilling machine, with BQ, NQ, HQ wireline coring methods.

HZ-200YY common 200m drilling rig for water well sites

Widely used in most well drilling on general soil formation. Trailer/Crawler can be mounted for easier operation.

Aluminium alloy, high strength, easy carry XY-3T drilling rig

All aluminium material equipped drilling machine, light carry and easy move with less than 3 drillers.

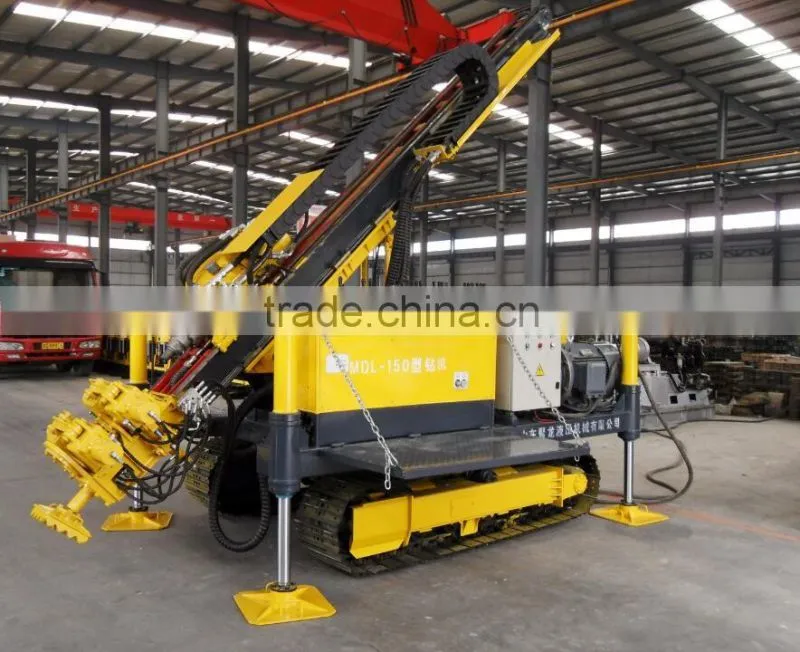

MDL-150 full hydraulic, multipurpose anchoring rig

Multi-functional, 130-170m depth all hydraulic drilling operations.

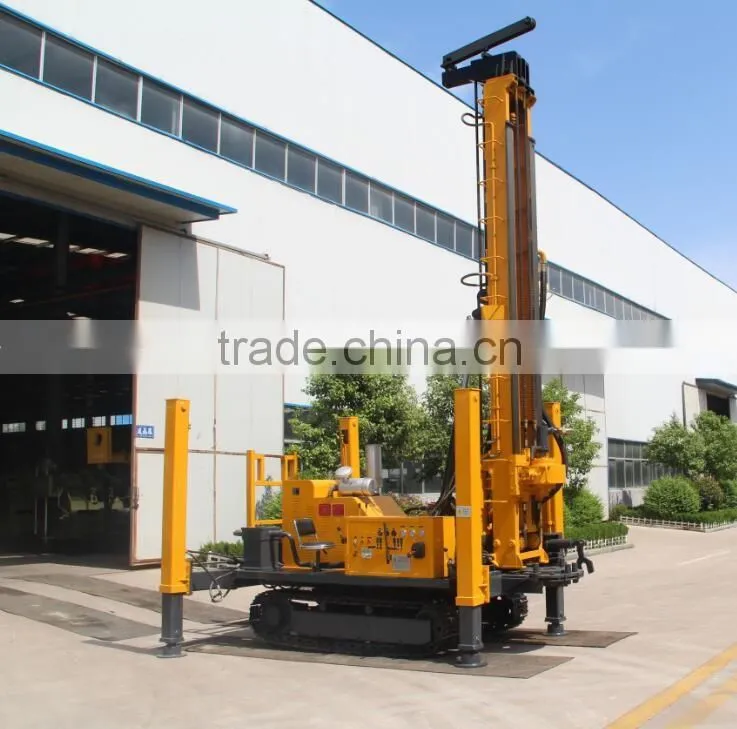

JDL-300 Crawler type mud/air down the hole drilling rig

Mechanical & Hydraulic transmission for mountainous and rocky formation, max to 300m depth.

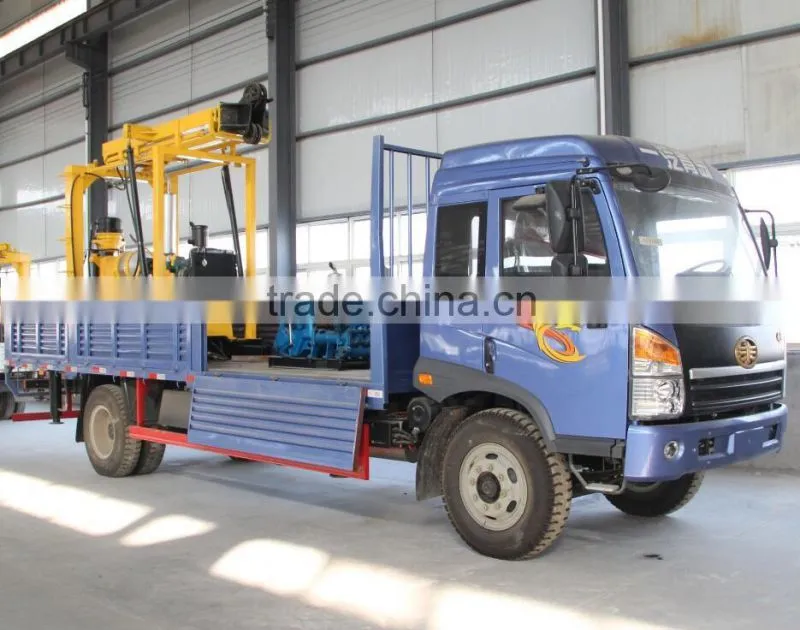

XYC-3 Max 600m fast move truck mounted drilling rig

High efficient movement for water well drilling and other operations.

Packing & Shipping

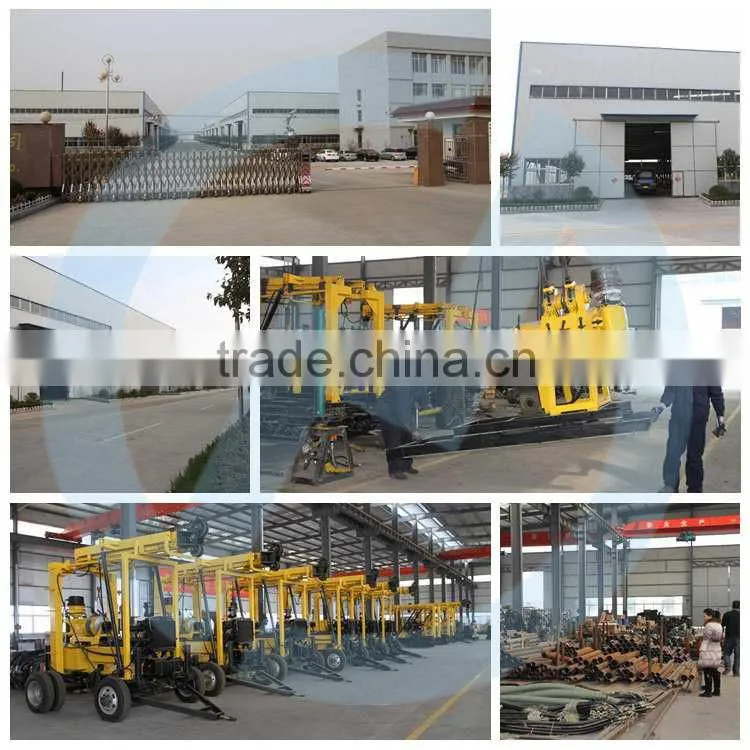

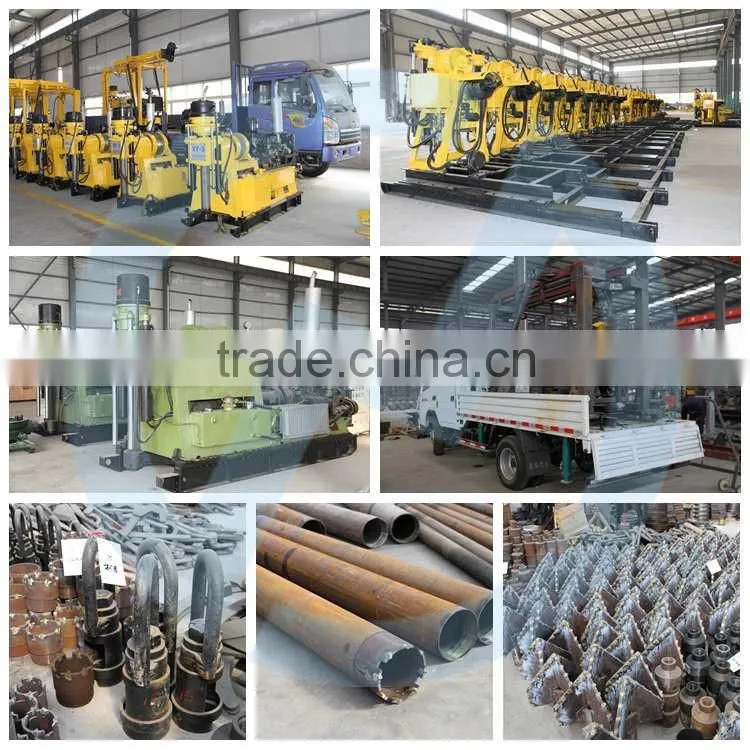

Factory show

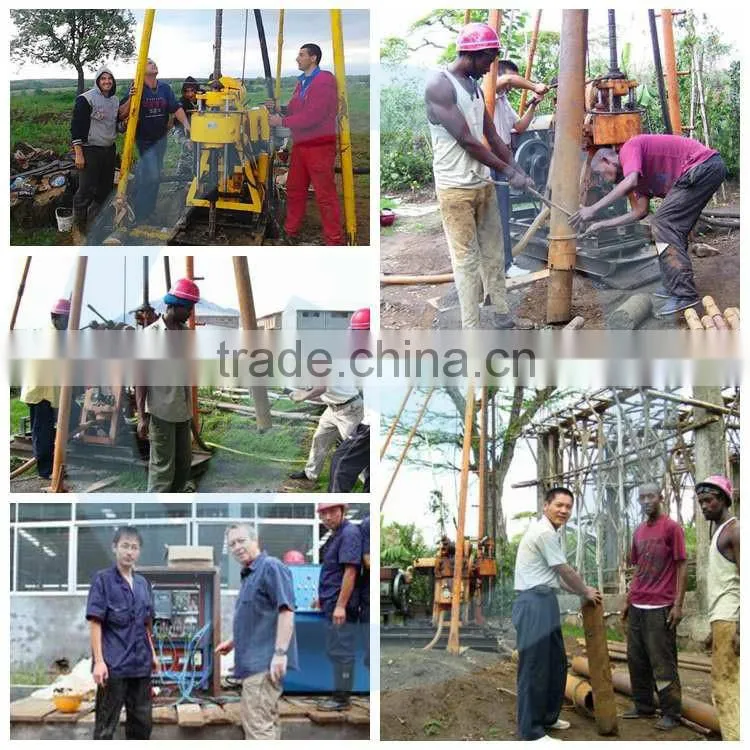

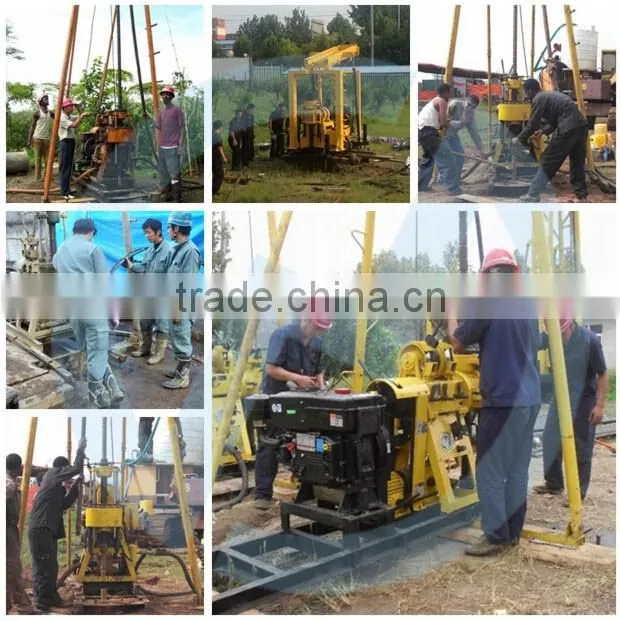

Project sites
